StormwaterResidentialInfiltration EcoBloc Inspect Flex

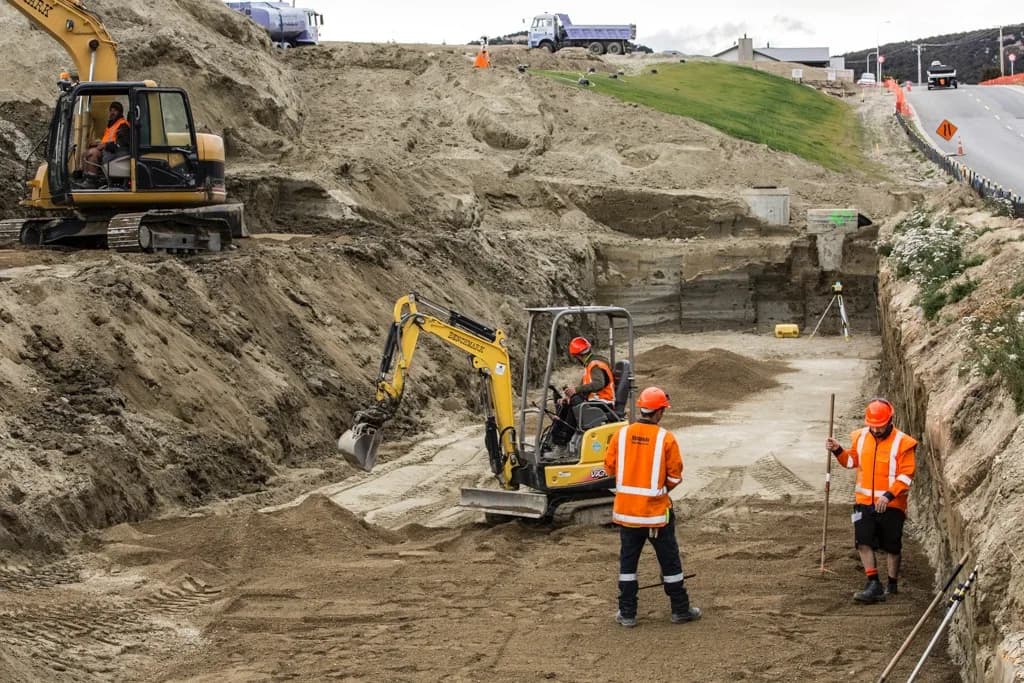

Kirimoko Subdivision - Wanaka, New Zealand
Council-required stormwater capture for 37 new lots, installed in 1.5 days.
Kirimoko Subdivision / Benchmark Construction · Wanaka, New Zealand
300 m³
Infiltration volume
1.5 days
Install time
37 lots
Subdivision scale
Project data
- Location
- Wanaka, New Zealand
- Region
- New Zealand
- Sector
- Residential
- Solution
- Infiltration
- Product
- EcoBloc Inspect Flex
- Source
- GRAF Australia
- Purpose
- Infiltration
- Volume
- 300 m³
- Dimensions
- 42.2 m × 4.8 m × 1.47 m
- Cover
- 1.0 to 2.0 m
- Contractor
- Benchmark Construction
01
Challenge
Queenstown Lakes District Council required the entire Kirimoko subdivision stormwater to be captured in an inspectable infiltration system, relieving pressure on an already stressed downstream network as 37 new lots added impervious area.
02
Solution
GRAF supplied EcoBloc Inspect Flex with four Vario access shafts beneath carpark and reserve areas. Benchmark Construction completed 300 m³ storage across a 42 m footprint in 1.5 days.
03
Outcomes
- Inspectable infiltration per council requirements
- 1.5-day install versus weeks for poured concrete
- Traffic loading with 1.0 to 2.0 m cover depth
Project Gallery
Planning something similar?
Kirimoko Subdivision - Wanaka, New Zealand
