Azzura Investment Group are developing a new housing development incor

Azzura Investment Group are developing a new housing development incorporating 27 x single dwellings & 155 x town homes at Palm Views Estate, in the historic city of Ipswich South East Queensland.

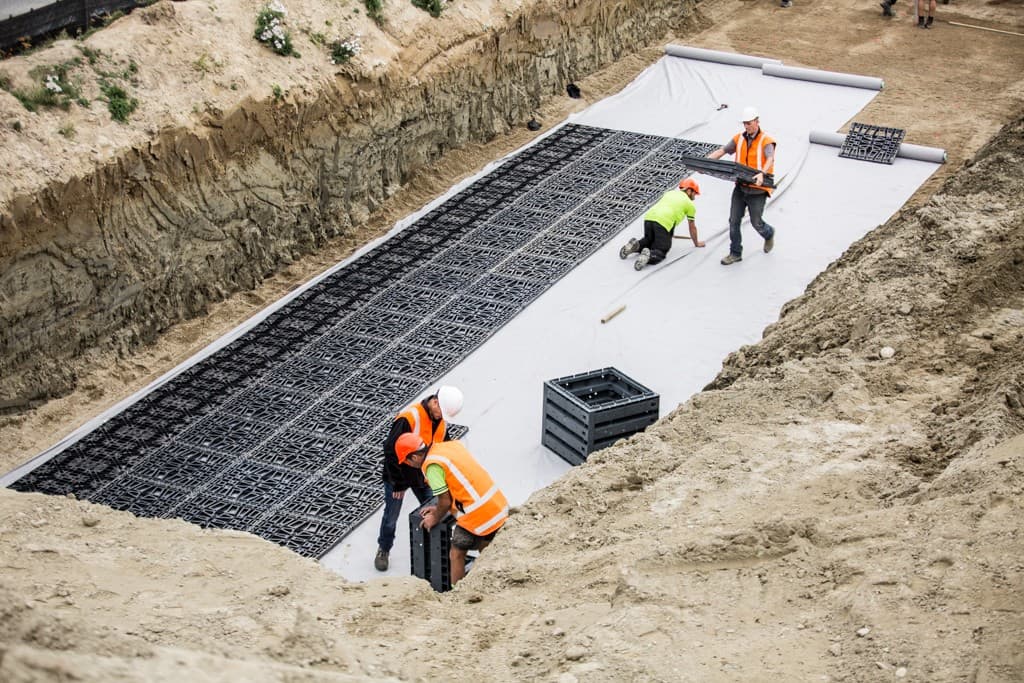

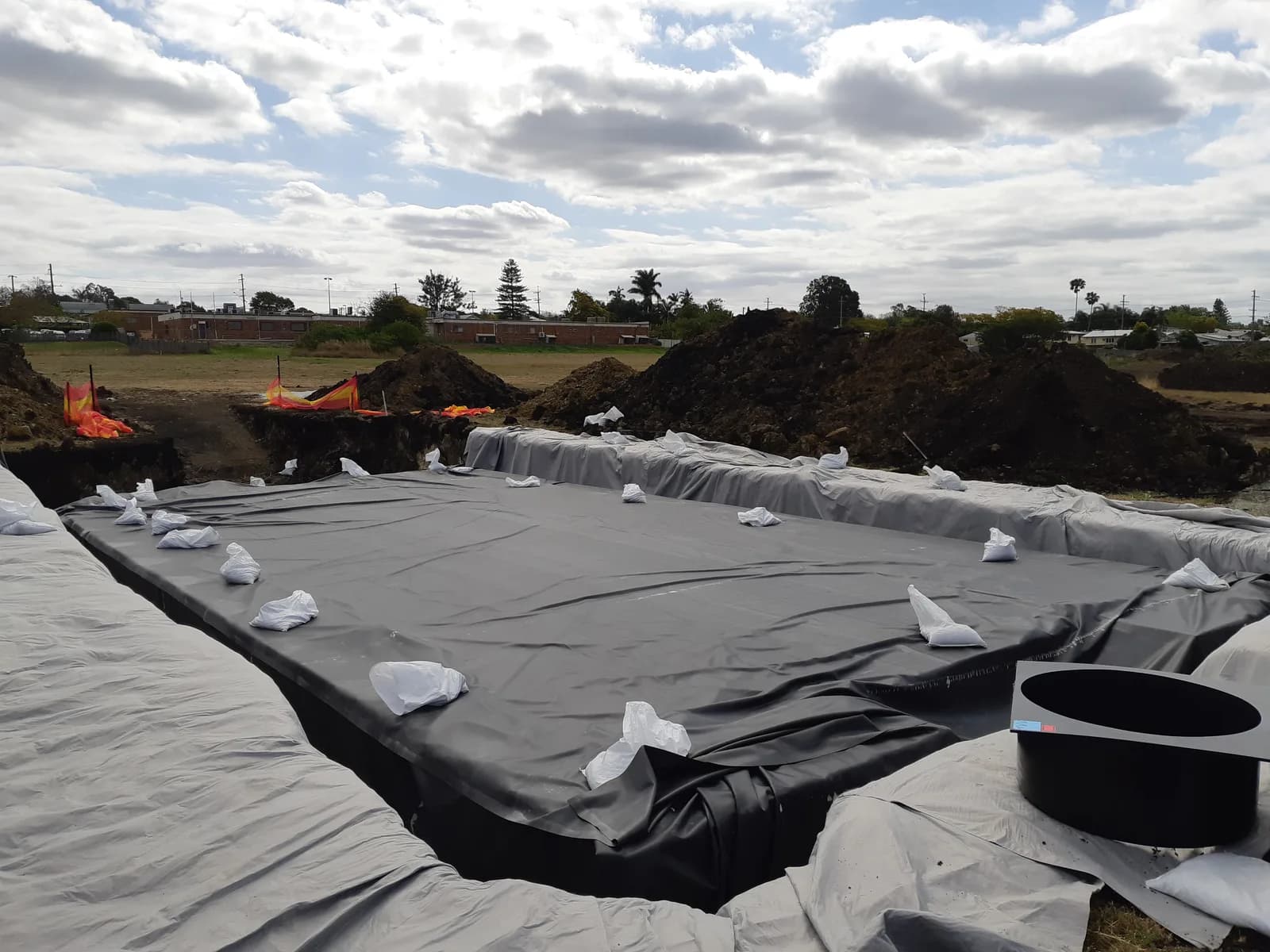

The project stormwater management plan calculated a requirement of 1,050kL of onsite stormwater detention that drain into the bioretention basins. Installation Date Purpose Time to Install Size Dimensions Ground Cover Inspectable Design Engineer Installation Contractor September Onsite Stormwater Detention Basin 3 Weeks 880m3 & 170m3 1.1m deep 300mm No OSKA Consulting Group Pollydam EcoBloc Palm Views Estate, Ipswich - 800m3 Background Project Data

Azzura Investment Group approached Graf seeking the time and cost saving the EcoBloc system could offer, compared to the concrete tanks in the conceptual design package.

Graf were able to arrange a holistic proposal incorporating the supply of the materials; EcoBloc, Geotextile and waterproof Geomembrane liner, and the Installation; IAGI's Certified Welding contractor with EcoBloc assembly experience. This proposal provided a project saving of approximately 30-40% on the original concrete tank budget.

* 2.5m CENTRE FOR BASINS > 100m² CONSTRUCTION PHASE: 1. COVER FILTRATION LAYER WITH GEOTEXTILE, 50mm TOPSOIL & TURF STRIPS PERPENDICULAR TO FLOW. 2. GEOTEXTILE TO BE REMOVED ONLY WHEN UPSTREAM SEDIMENT LOADS ARE CONTROLLED. DRAINAGE LAYER, DEPTH = 200mm GEO FABRIC A34 OR EQUIVALENT FILTRATION LAYER, DEPTH = 600mm BIORETENTION LEGEND: FINISHED FLOOR LEVEL FFL PROPOSED ROCK RETAINING WALL TO STRUCTURAL ENGINEERS DETAILS RETAINING WALLS TO STRUCTURAL ENGINEERS DETAILS. PROPOSED GRAF TANK CELL CONFIGURATION SW007 E STORMWATER DRAINAGE DETAILS BIORETENTION AND DETENTION BASIN B CJ EW TP A 15/05/19 ISSUED FOR APPROVAL B 2/09/19 ISSUED FOR CONSTRUCTION C 3/02/20 ISSUED FOR CONSTRUCTION 2 D 27/05/20 GRAF TANK LAYOUT CONFIG. AMENDED E 2/06/20 ISSUED FOR CONSTRUCTION 3 2/06/20 E SUBGRADE AND BACKFILL SPECIFICATIONS BY OTHERS. GRANULAR FILL MIN. 50mm THICK. GRAF ECOBLOC. REFER MANUFACTURER FOR PRODUCT AND INSTALLATION DETAILS AND CONSTRUCTION SPECIFICATIONS. POOL SLAB E
