StormwaterRetailInfiltration EcoBloc Inspect Flex
1,260 m³ stormwater across 55,000 m² warehouse hardstand
Four infiltration tanks with shallow excavation for heavy-duty traffic at Jandakot.
Cooper & Jones · Jandakot, WA
1,260 m³
Total storage
55,000 m²
Catchment
0.80 m
Minimum cover
Project data
- Location
- Jandakot, WA
- Region
- Australia
- Sector
- Retail
- Solution
- Infiltration
- Product
- EcoBloc Inspect Flex
- Source
- GRAF Australia
- Purpose
- Infiltration
- Volume
- 1,260 m³
- Catchment
- 55,000 m²
- Engineer
- Pritchard Francis
01
Challenge
A 55,000 m² warehouse catchment at Centurion Place needed stormwater infiltration split across carpark, offices and loading dock with heavy traffic loading and minimum cover constraints.
02
Solution

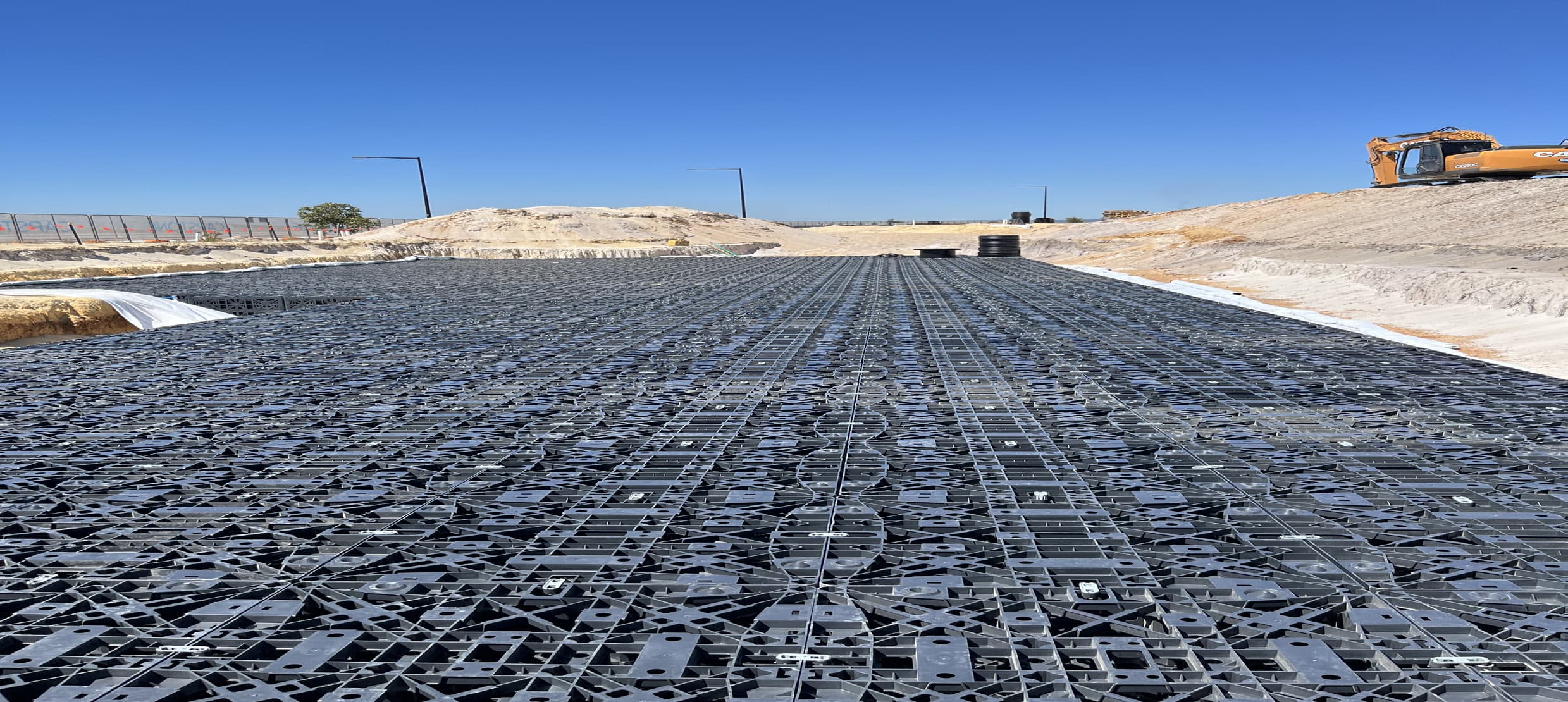

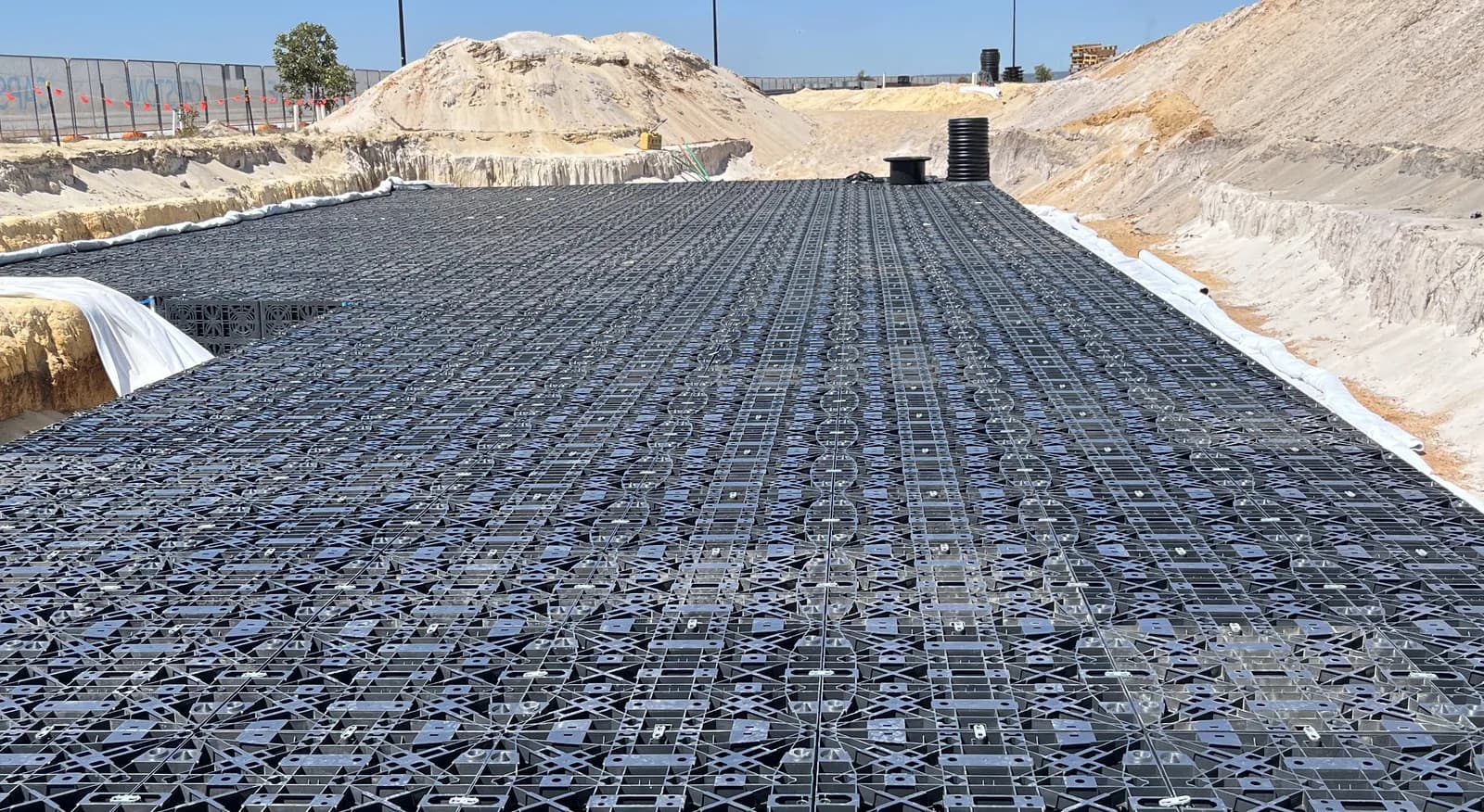

GRAF EcoBloc Inspect Flex with Vario shafts delivered 1,260 m³ across four tanks. Custom adaptor plates accelerated assembly. Cooper & Jones completed install with Pritchard Francis engineering.
03
Outcomes
- 1,260 m³ across four modular tanks
- 0.80 m minimum cover under heavy traffic
- 55,000 m² catchment fully managed
