Silverstone Business Park - Northamptonshire, UK
GRAF Group Reference: 945 m³ EcoBloc Inspect Flex attenuation across five tanks (~4,458 crates) for Silverstone Park industrial units, limited to 9 L/s council run-off.
Readie Construction / Silverstone Park · Silverstone Park, Northamptonshire, United Kingdom
GRAF Group Reference. International project reference from GRAF Group. Not an Australian installation. View original source.
Catalogue product and system imagery only. Not project site photos from this location.
945 m³
Attenuation volume
~4,458
Crates
9 L/s
Run-off limit
Project data
- Location
- Silverstone Park, Northamptonshire, United Kingdom
- Region
- Europe
- Sector
- Industrial
- Solution
- Stormwater detention/retention
- Product
- EcoBloc Inspect Flex
- Source
- GRAF Group Reference
- Purpose
- Business park attenuation
- Volume
- 945 m³
- Tanks
- 5 tanks / ~4,458 crates
- Discharge
- 9 L/s council limit
- Depth
- 1.78 m install depth; 1,100 mm earth cover
- Design
- 1-in-100-year + 20% climate buffer
Challenge
Silverstone Park, opposite Silverstone Circuit, comprises four industrial buildings with 12 office and warehouse units. Contractors needed long-term flood protection while meeting a council run-off limit of just nine litres per second under continuous lorry traffic.
Solution
GRAF UK designed and installed a 945 m³ EcoBloc Inspect Flex system of five tanks (about 4,458 crates). Same-level inlet and outlet allowed shallow 1.78 m placement with 1,100 mm cover, cutting excavation while retaining 60-tonne lorry-bearing capacity at 800 mm cover per product data cited on the case page.
Outcomes
- 945 m³ attenuation across five modular tanks
- Shallow 1.78 m install depth reduced excavation
- Sized for 1-in-100-year storm plus 20% climate contingency

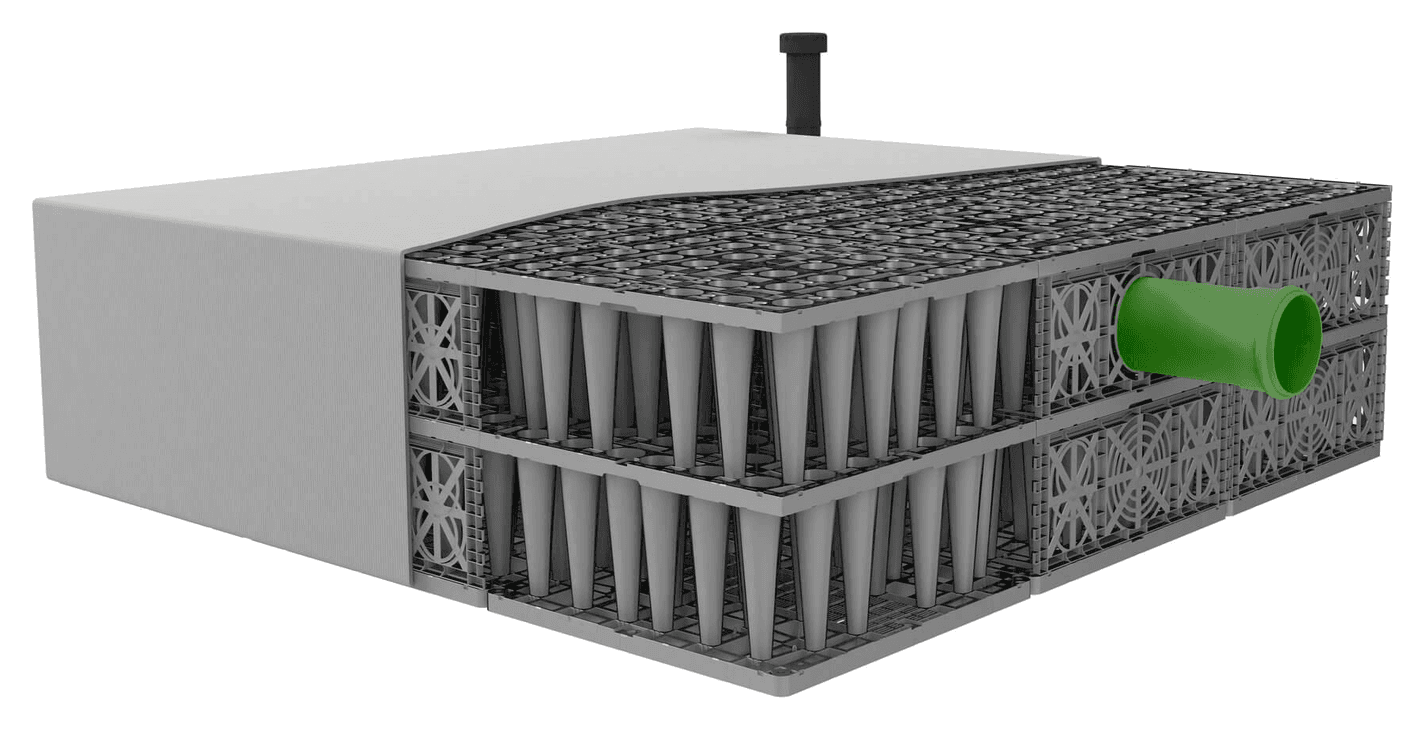

How the system works
Manufacturer system diagram showing how this product family works. Not a site drawing for this project.

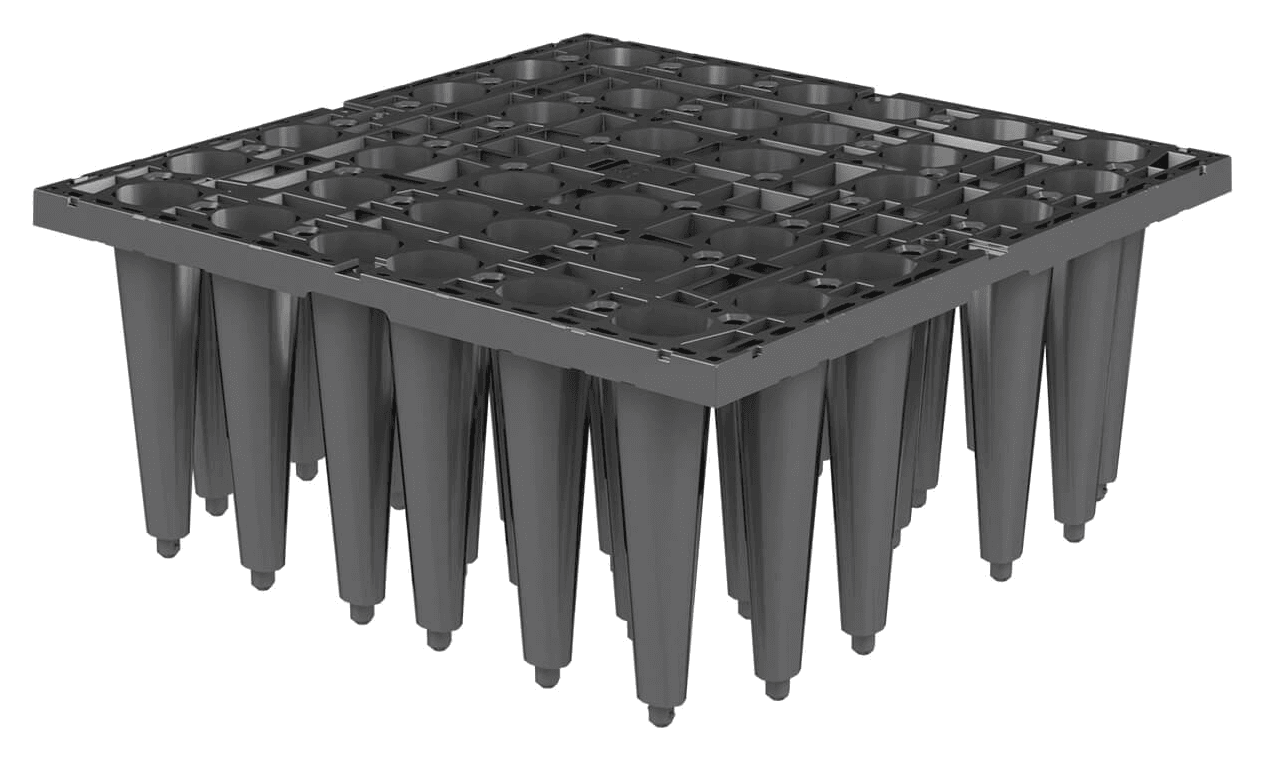

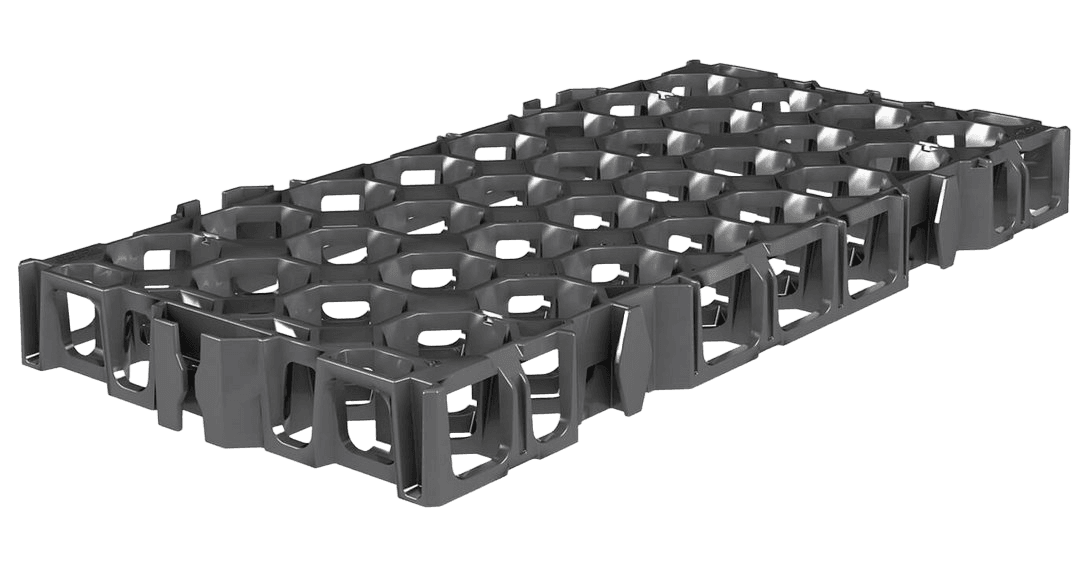

Related product photography
Catalogue product and system imagery only. Not project site photos from this location.
