Riverstick Nursing Home Fire Water - Ireland
GRAF Group Reference: hybrid firefighting storage combining a 16,000 L Carat XXL tank with 171,000 L EcoBloc Maxx crates for about 180,000 L total on a restricted nursing-home site.
Riverstick Nursing Home · Riverstick, Ireland
GRAF Group Reference. International project reference from GRAF Group. Not an Australian installation. View original source.
Catalogue product and system imagery only. Not project site photos from this location.
180,000 L
Fire water storage
16,000 L
Carat XXL
171,000 L
EcoBloc Maxx
Project data
- Location
- Riverstick, Ireland
- Region
- Europe
- Sector
- Healthcare
- Solution
- Firefighting water
- Product
- Carat XXL + EcoBloc Maxx
- Source
- GRAF Group Reference
- Purpose
- Firefighting water storage
- Carat XXL
- 16,000 L
- EcoBloc Maxx
- 171,000 L
- Total
- ~180,000 L required / delivered
- Liner
- 2 mm HDPE
- Interconnect
- 160 mm pipework
Challenge
Riverstick Nursing Home needed about 180,000 litres of firefighting water storage on a space-restricted site where a single tank footprint was not practical.
Solution
GRAF Ireland installed a 16,000 L Carat XXL fire tank integrated with 171,000 L of EcoBloc Maxx crate storage, sealed with a 2 mm HDPE liner and linked by 160 mm interconnecting pipework to use the available footprint efficiently.
Outcomes
- Hybrid Carat XXL + EcoBloc Maxx delivering ~180,000 L fire storage
- HDPE-lined crate bank suited to constrained sites
- Factory-style fire connections on the Carat XXL tank
How the system works
Manufacturer system diagram showing how this product family works. Not a site drawing for this project.

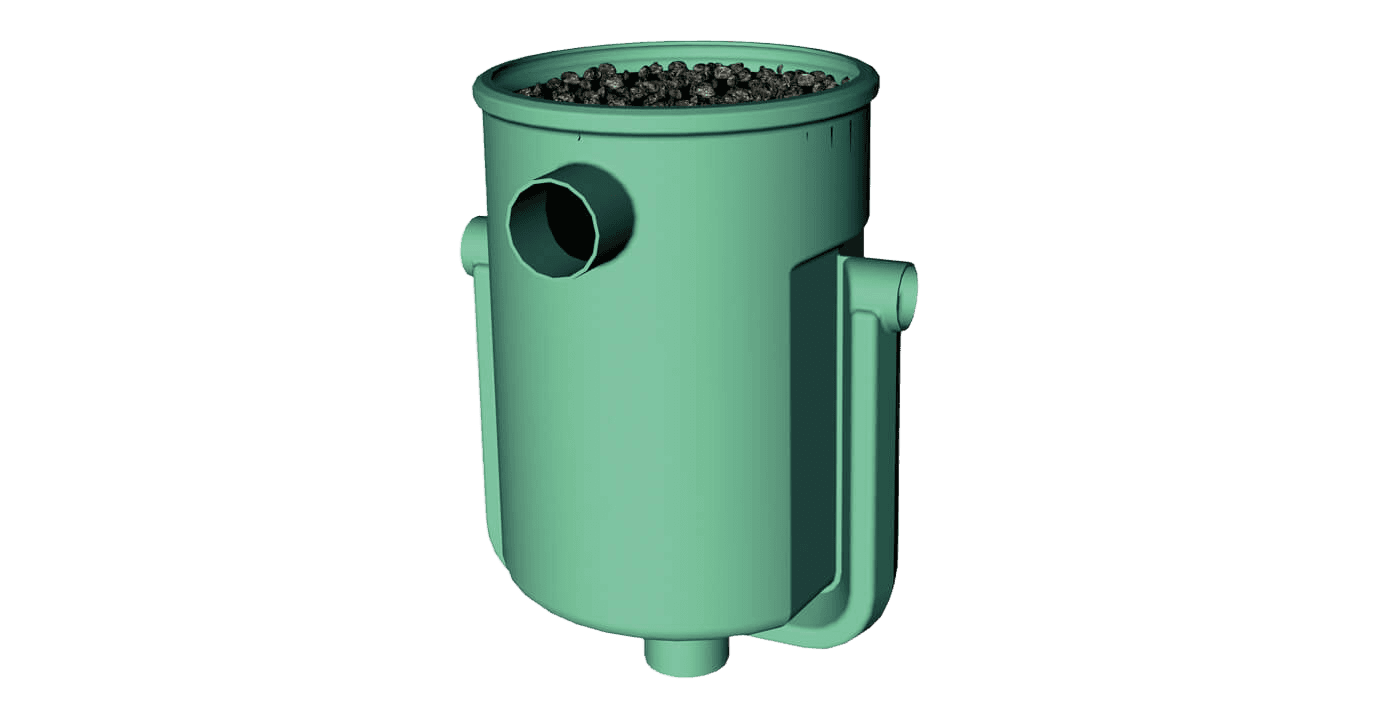

Related product photography
Catalogue product and system imagery only. Not project site photos from this location.
Planning something similar?
