GARANTIA SuperCompact Underground Tank

Request SuperCompact tank sizing / submit plans GARANTIA SuperCompact

Brand

GARANTIA

Range

Rainwater

SKU

GARANTIA-SUPERCOMPACT

Selected SKU

GARANTIA-SUPERCOMPACT

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Rainwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

ResidentialCommercialGarden irrigation

Technical sizing

Size matrix & SKUs

6 technical rows - select above or quote directly

Available loading / cover classes

Pedestrian coverClass B vehicle coverClass D truck lidGrated pedestrianGrated Class BGrated Class D

Class B and Class D installations require minimum 700 mm earth cover according to MNL-097.

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Load class	SKU
2000 PE	3,000 mm	1,180 mm	1,100 mm	190 kg	-	GARANTIA-SUPERCOMPACT
3000 PE	3,000 mm	1,415 mm	1,340 mm	235 kg	-	GARANTIA-SUPERCOMPACT
4000 PE	3,000 mm	1,565 mm	1,520 mm	285 kg	-	GARANTIA-SUPERCOMPACT
5000 PE	3,000 mm	1,735 mm	1,685 mm	355 kg	-	GARANTIA-SUPERCOMPACT
8000 PE	3,490 mm	2,240 mm	2,290 mm	495 kg	-	GARANTIA-SUPERCOMPACT
10000 PE	3,490 mm	2,240 mm	2,290 mm	495 kg	-	GARANTIA-SUPERCOMPACT

Technical data source: MNL-097 SuperCompact technical data table

Full specification

Product details

Key construction, installation and performance notes for GARANTIA SuperCompact Underground Tank.

Overview

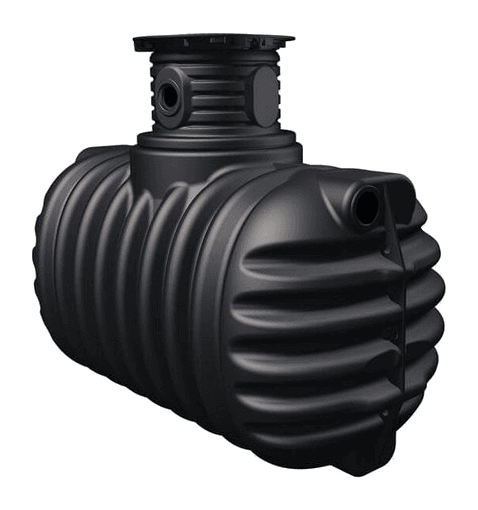

The GARANTIA SuperCompact is a compact underground tank range (2,000-10,000 L), available in LDPE and HDPE grades and supplied in 'blank' configuration (tank body + access dome + seals).

Pricing, exact dimensions and product imagery for this range are being finalised - request a quote and sizing for your project.

Specification focus

Technical documents
