Vario 800 EcoBloc M 153 Sedimentation Tank
Request Vario 800 EcoBloc M 153 sizing Vario 800 EcoBloc M 153 sedimentation tank — fully assembled modular system with two Vario shafts and EcoBloc Inspect 420 cells. Volumes 3,360 / 5,880 / 7,560 L with DN200 / DN315 / DN400. Truck-accessible. Source: graf.
Brand
GRAF
Range
Stormwater
Sizes
9
Size
Selected SKU
450060
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
Typical applications
Technical sizing
Size matrix & SKUs
9 technical rows - select above or quote directly
Available loading / cover classes
Part of GRAF DWA-M 153 sedimentation systems (Diamant excluded)

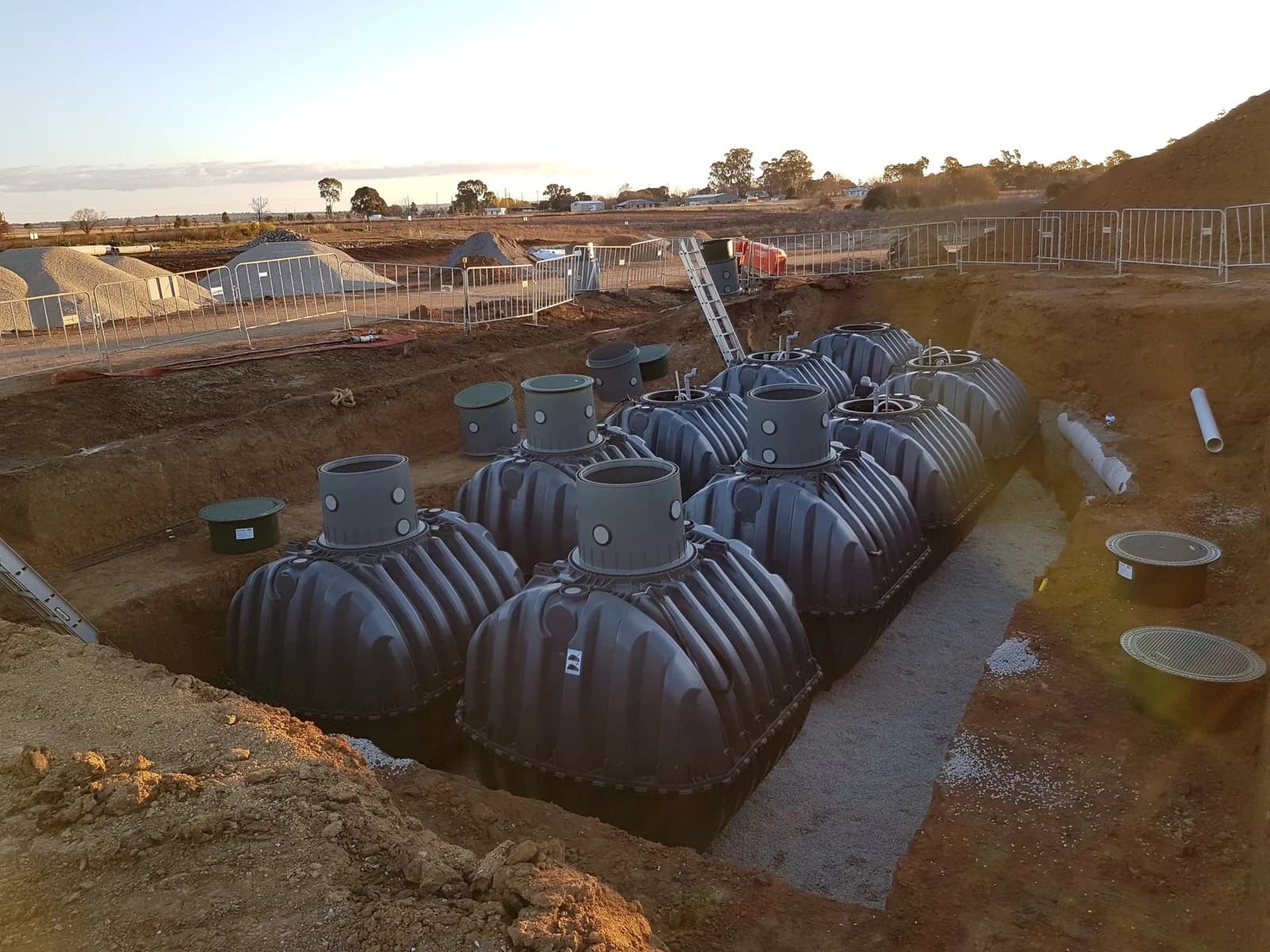

Family: DWA-M 153 sedimentation systems — SediProtect, Saphir Universalschacht, Carat, Vario 800 EcoBloc

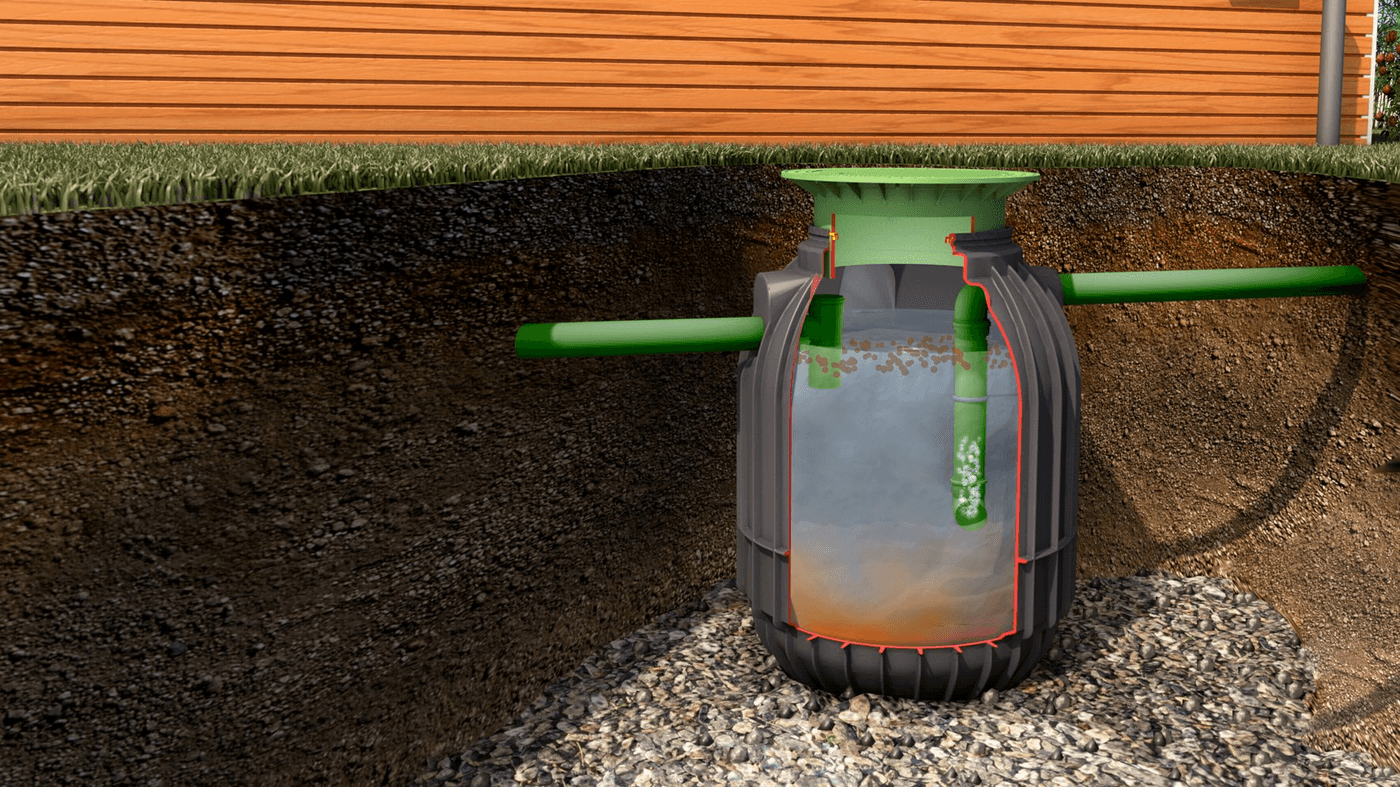

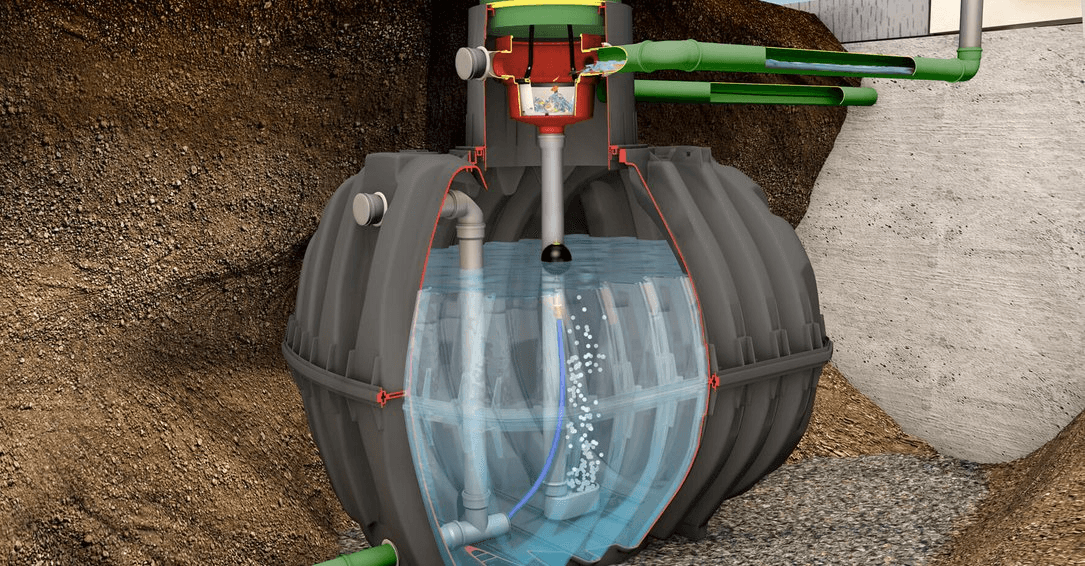

Saphir / Carat / Vario: sedimentation tank with optional external coarse filter; calmed inlet pot + outlet baffle

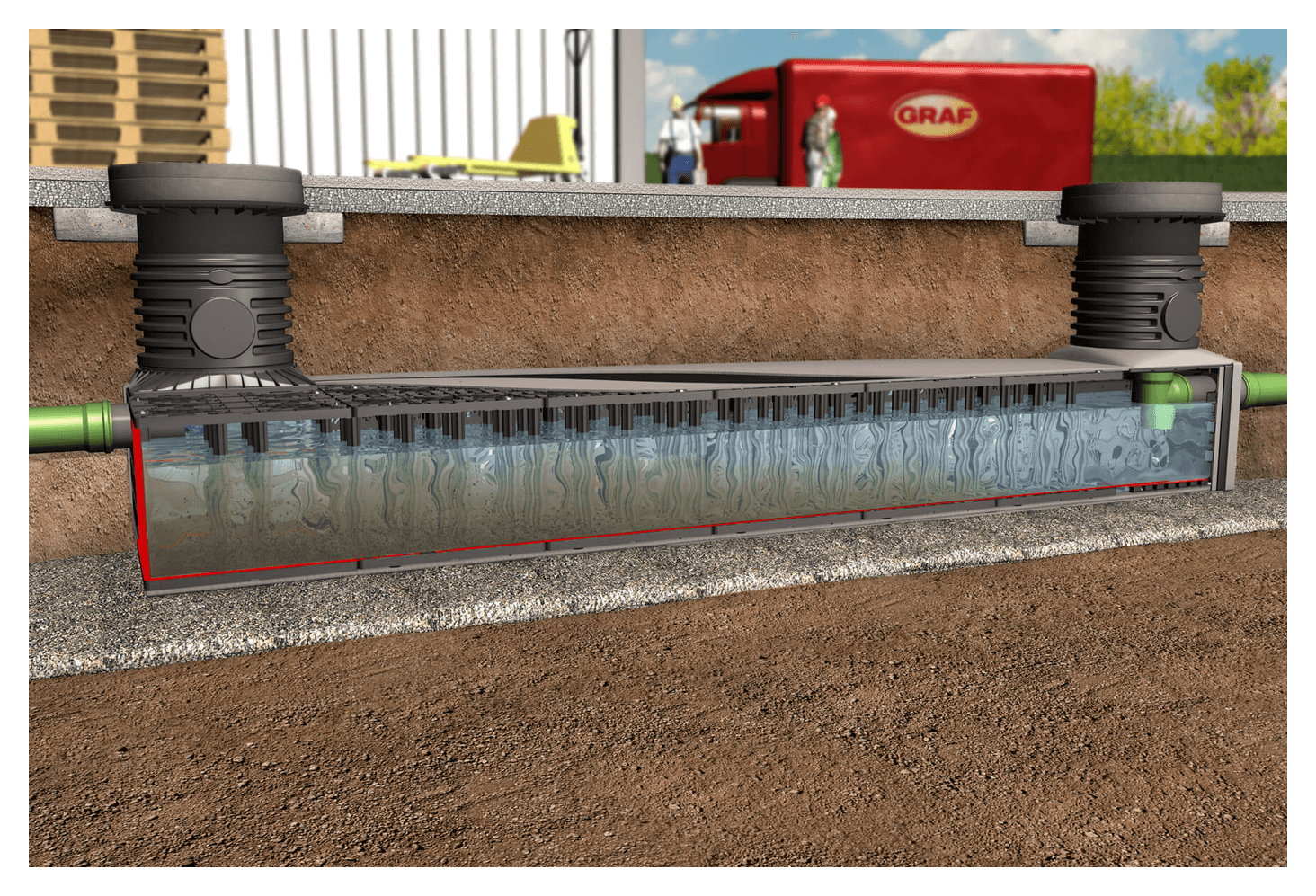

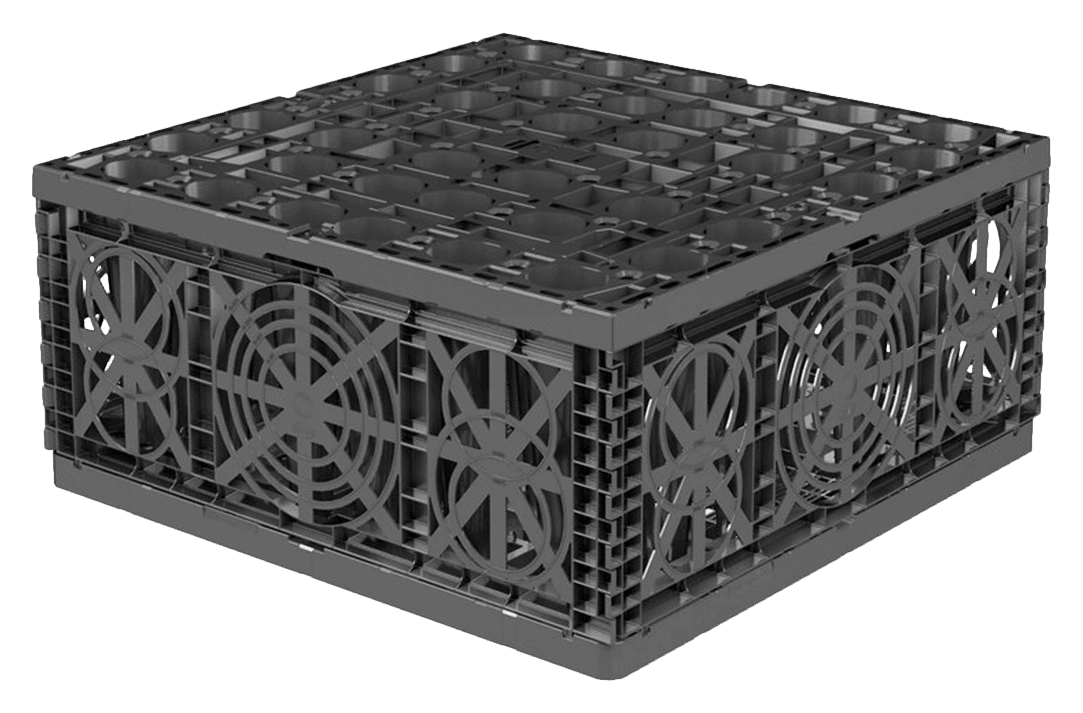

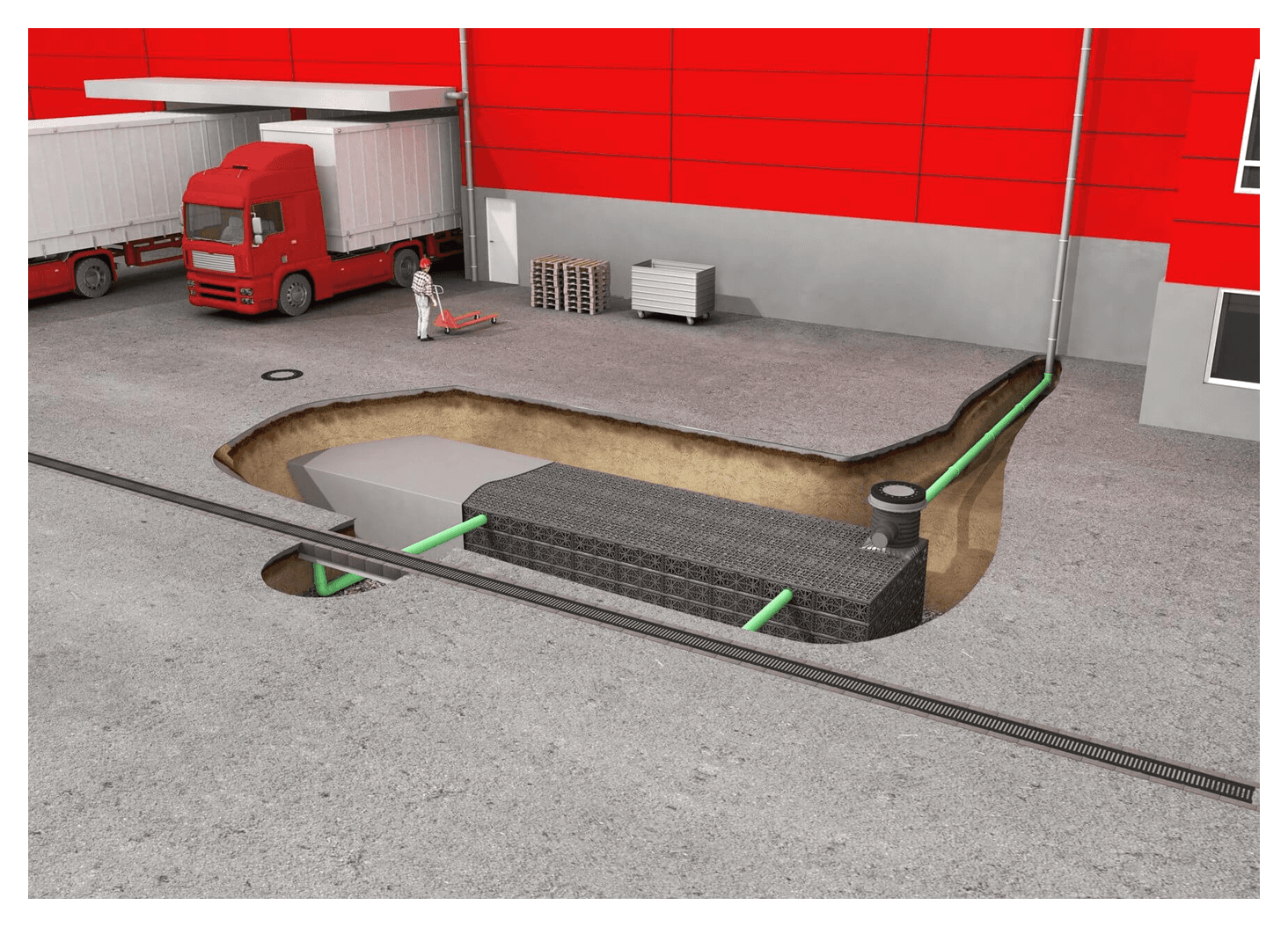

Vario 800 EcoBloc: supplied fully assembled (2× Vario shafts + EcoBloc Inspect 420 cells)
| Size | Length | Width | Height | Weight | Connection | Load class | Order no. | Quote |
|---|---|---|---|---|---|---|---|---|
| 3,360 L / DN200 | 3,200 mm | 1,600 mm | 760 mm | 236 kg | DN200 | - | 450060 | |
| 5,880 L / DN200 | 5,600 mm | 1,600 mm | 760 mm | 376 kg | DN200 | - | 450061 | |
| 7,560 L / DN200 | 7,200 mm | 1,600 mm | 760 mm | 470 kg | DN200 | - | 450062 | |
| 3,360 L / DN315 | 3,200 mm | 1,600 mm | 1,115 mm | 278 kg | DN315 | - | 450063 | |
| 5,880 L / DN315 | 5,600 mm | 1,600 mm | 1,115 mm | 418 kg | DN315 | - | 450064 | |
| 7,560 L / DN315 | 7,200 mm | 1,600 mm | 1,115 mm | 512 kg | DN315 | - | 450065 | |
| 3,360 L / DN400 | 3,200 mm | 1,600 mm | 1,115 mm | 296 kg | DN400 | - | 450066 | |
| 5,880 L / DN400 | 5,600 mm | 1,600 mm | 1,115 mm | 436 kg | DN400 | - | 450067 | |
| 7,560 L / DN400 | 7,200 mm | 1,600 mm | 1,115 mm | 530 kg | DN400 | - | 450068 |
Technical data source: https://www.graf.info/de/regenwasserbehandlung/m153-sedimentationsanlagen/vario-800-ecobloc-m-153-sedimentationstank.html
Full specification
Product details
Key construction, installation and performance notes for Vario 800 EcoBloc M 153 Sedimentation Tank.
Overview
Vario 800 EcoBloc M 153 sedimentation tank — fully assembled modular system with two Vario shafts and EcoBloc Inspect 420 cells. Volumes 3,360 / 5,880 / 7,560 L with DN200 / DN315 / DN400. Truck-accessible. Source: graf.info Vario 800 EcoBloc M 153.
