Sponge-city stormwater concept showing on-site detention, infiltration and water-sensitive design for Australian sites

Technical Solutions · Stormwater

OSD tanks and stormwater detention for Australia

EcoBloc Inspect Smart, Carat XXL detention or retention, and Platin XXL stormwater detention for Australian council and WSUD requirements.

Civil & commercial stormwater - WSUD detention and treatment

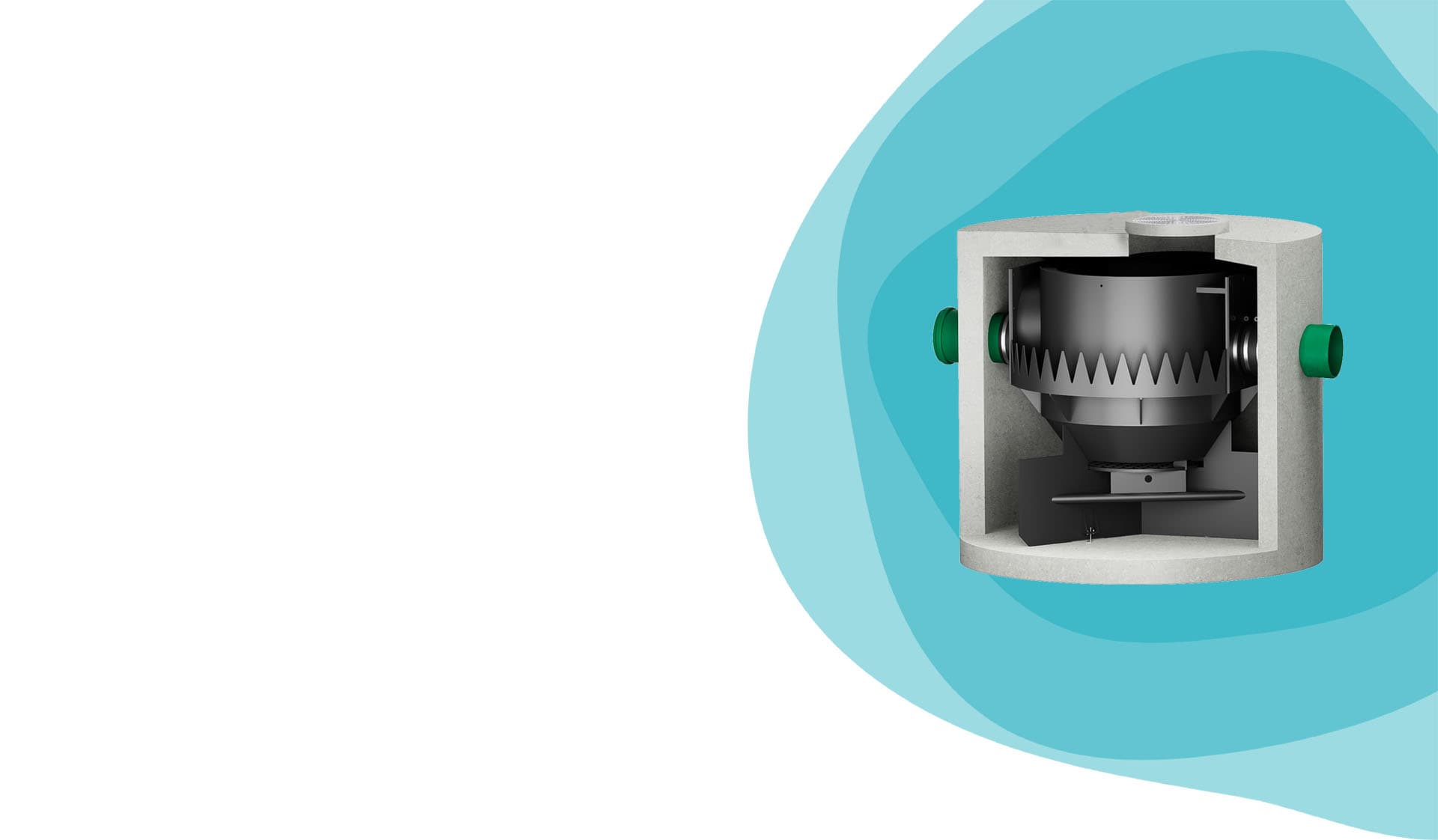

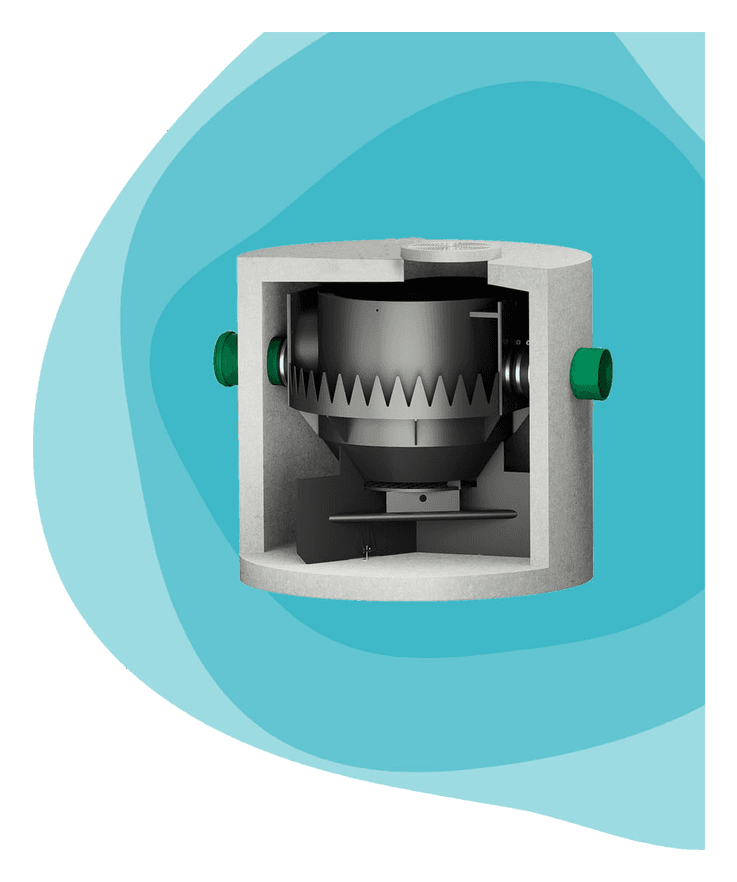

GRAF Treatment Mako Shark sedimentation plant

GRAF Treatment Mako Shark sedimentation plant

Process

Stormwater treatment train

Civil runoff is treated through GRAF Treatment Mako Shark sedimentation, then managed with GRAF EcoBloc detention, infiltration or controlled discharge.

  1. 1Roof, pavement and civil catchment - runoff from impervious site areas
  2. 2GRAF Treatment Mako Shark - sedimentation and filtration at the treatment inlet

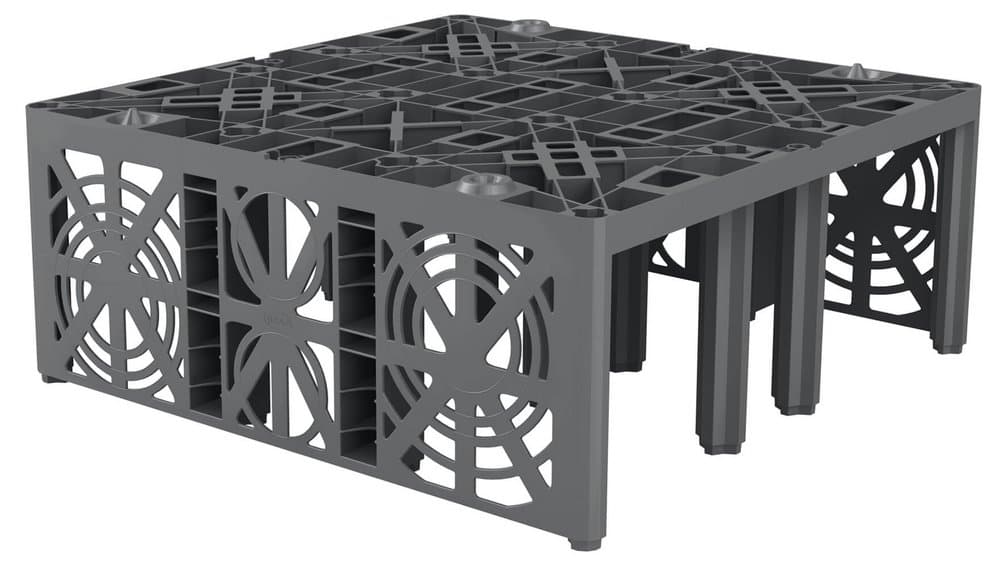

  3. 3GRAF EcoBloc Inspect modular cells - underground detention, infiltration or retention
  4. 4Treated flow to council-approved discharge point or soakaway infiltration

Also in this system

In short

GRAF Australia supplies EcoBloc Inspect Smart, Carat XXL for detention or retention, and Platin XXL stormwater detention on Australian OSD and WSUD projects. EcoFlow Control is the outflow regulator for compatible detention tanks. Confirm the planning condition, size with your civil engineer, then quote through grafaustralia.com.au or 1300 131 971. Read the OSD tank guide for diagrams and product comparisons.

When to specify

Typical Australian applications

  • On-site detention required by council or WSUD guidelines
  • Infiltration where soil and groundwater conditions allow
  • Civil and landscape projects needing load-rated underground storage

FAQ

OSD and detention questions

Short answers for Australian council OSD briefs. Full diagrams and comparisons live in the project guide.

What is an OSD tank?+

An OSD tank (on-site detention) temporarily stores stormwater runoff and releases it at a controlled rate so developments meet council peak-flow limits. GRAF Australia supplies EcoBloc Inspect Smart, Carat XXL for detention or retention, and Platin XXL stormwater detention. EcoFlow Control is the listed outflow regulator for compatible Carat and Platin detention tanks.

EcoBloc vs detention tank: which should I use?+

EcoBloc Inspect Smart builds modular underground volume under pavement or landscape with inspectable options. Carat XXL is the vessel-style stormwater tank: choose Detention or Retention on the product page. Platin XXL stormwater detention is the flat-tank detention option. Choice depends on footprint, cover depth, load class and maintenance access.

Is stormwater detention the same as rainwater harvesting?+

No. Detention controls discharge rates to meet OSD or WSUD rules. Rainwater tanks store water for reuse. Some sites need both. Confirm the planning condition before you specify products.

How do I size stormwater detention in Australia?+

Sizing follows catchment area, rainfall intensity, permitted site discharge and the local council OSD policy. Use the GRAF Australia OSD design tool for a first pass, then engage your civil engineer and request a product quote.

Size a detention system

Share site area, impervious coverage and council requirements. We will recommend EcoBloc Inspect Smart, Carat XXL or Platin XXL detention.
