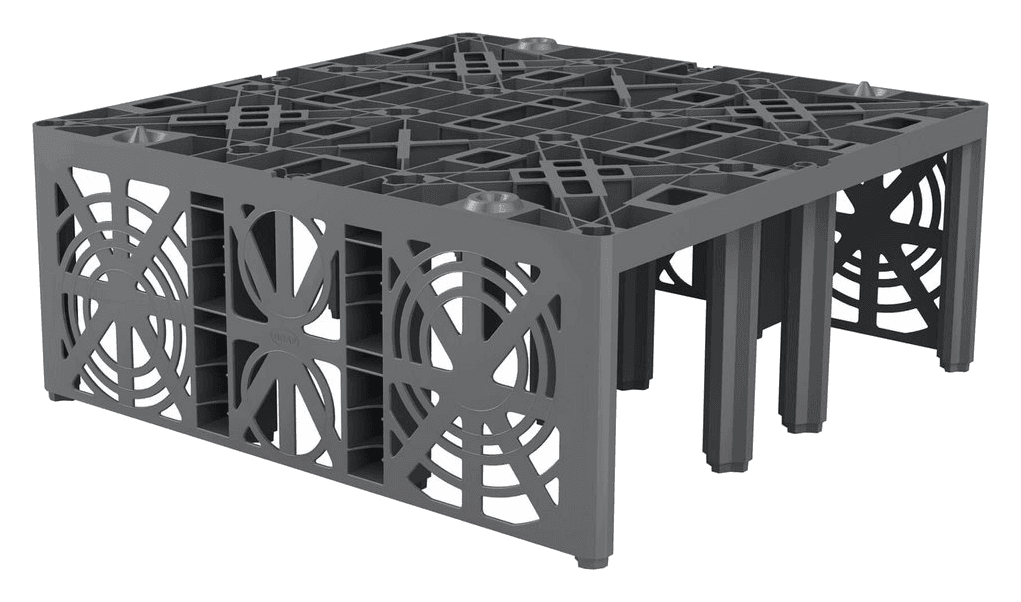

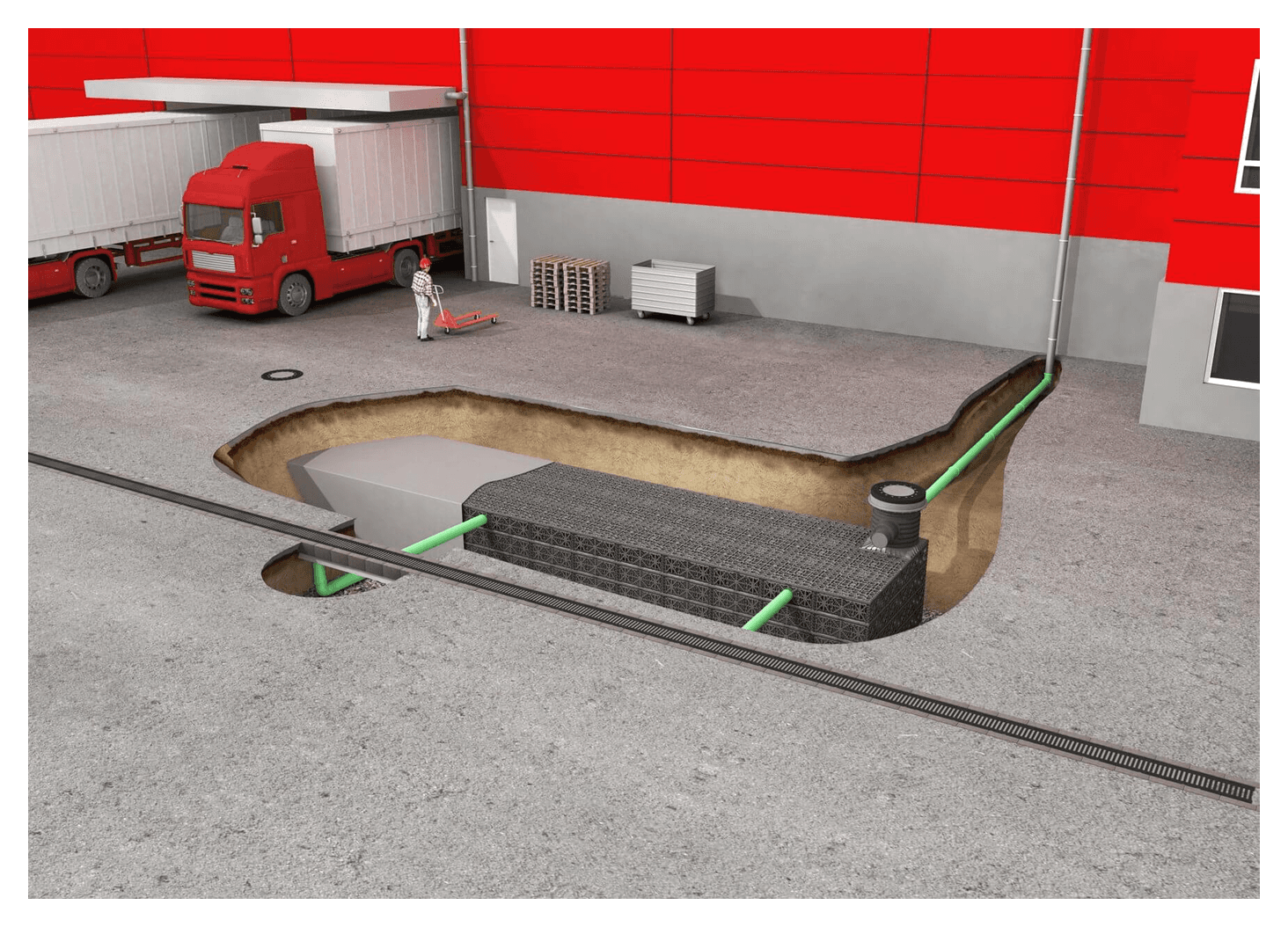

EcoBloc Inspect Smart Module

Modular stormwater cell for detention, infiltration and attenuation — 211 L, truck-loadable

Brand

GRAF

Range

Stormwater

SKU

402500

Selected SKU

402500

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards
15-year warrantyOn selected tank ranges
Recycled plasticsSustainable manufacturing

Typical applications

Civil sites
Attenuation
Infiltration

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Load class

SLW 60 / 60 t (B-double) from 800 mm cover
SizeDiameterHeightWeightConnectionLoad classOrder no.Quote
Module800 mm330 mm10 kgDN110–250 via end plates-402500
  • ~96% void · 100% GRAF Upcyclen recycled plastic
  • Cover under traffic: 800–2000 mm · max cover 2750 mm (no groundwater / traffic)
  • Built-in inspection channel · high-pressure flushable
  • End-plate connections DN110 / 125 / 160 / 200 / 250

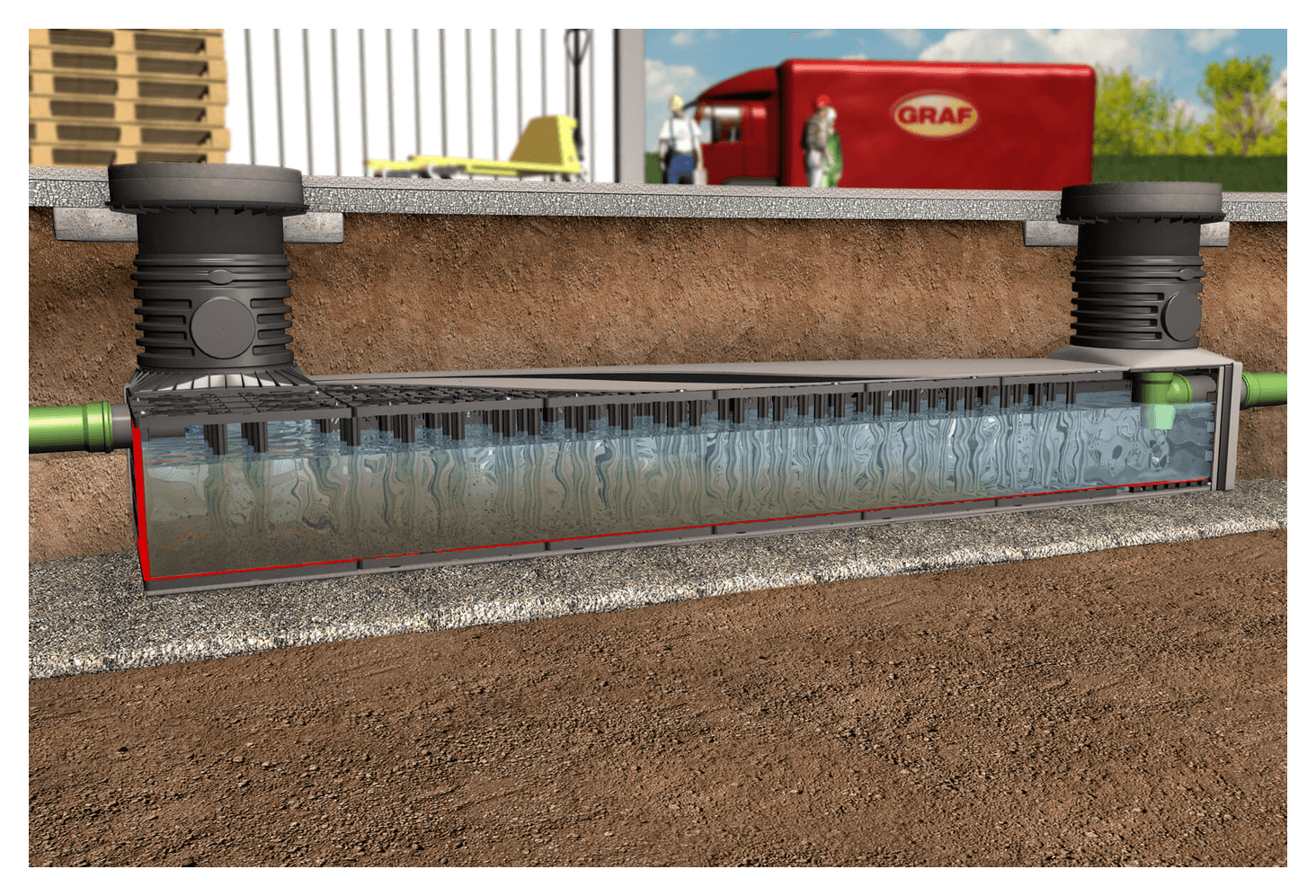

  • Pair with Smart base plate (402501), end plate set (402503), connectors and Vario / inspection shafts

Technical data source: https://www.graf.info/de/regenwasser-versickerung/versickerungsmodule/ecobloc-system/ecobloc-inspect-smart/ecobloc-inspect-smart.html

Full specification

Product details

Key construction, installation and performance notes for EcoBloc Inspect Smart Module.

Overview

EcoBloc Inspect Smart is GRAF’s standard modular stormwater cell for underground detention, soakaway and attenuation within a practical installation envelope. Each module is 800 × 800 × 330 mm with 211 L gross storage (~96% void) and weighs 10 kg — made from 100% GRAF Upcyclen recycled plastic. Built-in inspection channel; high-pressure flushable. Truck-passable SLW 60 / 60 t (B-double) from 800 mm cover; cover range 800–2000 mm under traffic, max 2750 mm without groundwater / traffic. Side end plates accept DN110, 125, 160, 200 and DN250 connections. Stackable for multi-layer tanks with easy transport and install. Source: GRAF EcoBloc Inspect Smart.

Specification focus

Technical documents

Brochures, drawings, manuals & BIM

Featured technical PDF

Installation Instructions for GRAF Eco Bloc Inspect smart

Official manufacturer document for specification and installation · MNL-086.pdf | Rev 1 | 1/05/2023.

Download PDF

Drawings

(18)
ECOBLOC SMART DETENTIONPDF | DWG-358.pdf | Rev 2 | 13/09/2024ECOBLOC SMART INFILTRATIONPDF | DWG-356.pdf | Rev 2 | 13/09/2024ECOBLOC SMART WITH SMART SHAFT DETENTIONPDF | DWG-360.pdf | Rev 2 | 18/09/2024ECOBLOC SMART WITH SMART SHAFT INFILTRATIONPDF | DWG-357.pdf | Rev 2 | 18/09/2024ECOBLOC SMART WITH VARIO SHAFT DETENTIONPDF | DWG-359.pdf | Rev 2 | 13/09/2024ECOBLOC SMART WITH VARIO SHAFT INFILTRATIONPDF | DWG-355.pdf | Rev 2 | 13/09/2024ATTENUATION TANK using GRAF ECOBLOC FLEXPDF | DWG-340.pdf | Rev 2 | 6/01/2022ATTENUATION TANK using GRAF ECOBLOC FLEX & VARIO SHAFTPDF | DWG-341.pdf | Rev 2 | 6/01/2022ATTENUATION TANK using GRAF ECOBLOC MAXXPDF | DWG-343.pdf | Rev 2 | 6/01/2022ATTENUATION TANK using GRAF ECOBLOC MAXX AND FLEXPDF | DWG-345.pdf | Rev 2 | 6/01/2022ATTENUATION TANK using GRAF ECOBLOC MAXX AND FLEX & VARIO SHAFTPDF | DWG-347.pdf | Rev 2 | 6/01/2022INFILTRATION TANK using GRAF ECOBLOC FLEX & VARIO SHAFTPDF | DWG-342.pdf | Rev 2 | 6/01/2022INFILTRATION TANK using GRAF ECOBLOC FLEX WITH ISOLATING LAYER & VARIO SHAFTPDF | DWG-349.pdf | Rev 2 | 6/01/2022INFILTRATION TANK using GRAF ECOBLOC MAXXPDF | DWG-344.pdf | Rev 2 | 6/01/2022INFILTRATION TANK using GRAF ECOBLOC MAXX AND FLEXPDF | DWG-346.pdf | Rev 2 | 6/01/2022INFILTRATION TANK using GRAF ECOBLOC MAXX AND FLEX & VARIO SHAFTPDF | DWG-348.pdf | Rev 2 | 6/01/2022ECOBLOC SMART Vario shaft standard detailPDF | DWG-484.pdf | 6/10/2025Infiltration tank with pre treatment, EcoBloc SMARTPDF | DWG-479.pdf | Rev 1 | 30/10/2025

Technical manuals

(3)
Installation Instructions for GRAF Eco Bloc Inspect smartPDF | MNL-086.pdf | Rev 1 | 1/05/2023Eco Bloc Flex (Instruction for Installation the GRAF Eco Bloc Inspect Flex)PDF | MNL-021.pdf | Rev 4 | 10/12/2021Graf Eco Bloc Maxx/Inspet Flex (General Product information) multilingualPDF | MNL-042.pdf | Rev 1 | 30/04/2015

BIM / Revit guidance

(1)
BIM/Revit handling guide - EcoBlocBIM guidance PDF

Complete the system

Recommended products and accessories

Related products are matched from the same family, application and accessory groups so customers can build a complete quote basket.

Common accessories

EcoBloc Adaptor for Concrete Pipe (up to DN525) - GRAF - Stormwater Solutions Australia

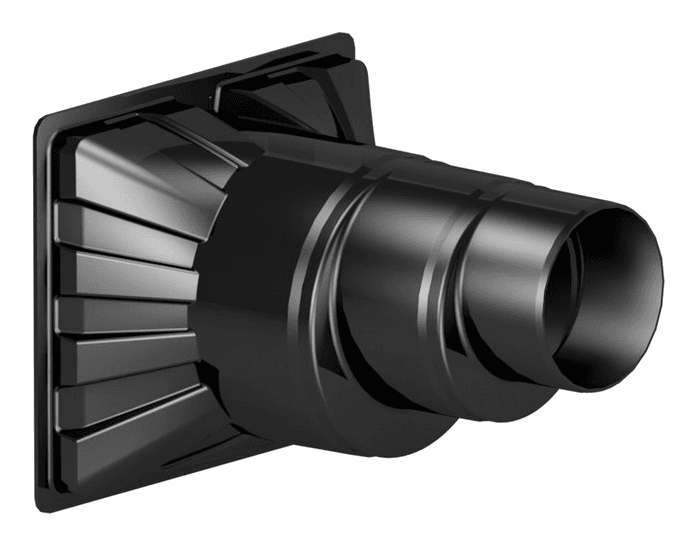

EcoBloc Adaptor for Concrete Pipe (up to DN525)

GRAF · 66.0208

View specs
EcoBloc Adaptor Plate - GRAF - Stormwater Solutions Australia

EcoBloc Adaptor Plate

GRAF · 402033

View specs
EcoBloc Adaptor Plate DN110/160 - GRAF - Stormwater Solutions Australia

EcoBloc Adaptor Plate DN110/160

GRAF · 402037

View specs
EcoBloc Connectors (10 pack) - GRAF - Stormwater Solutions Australia

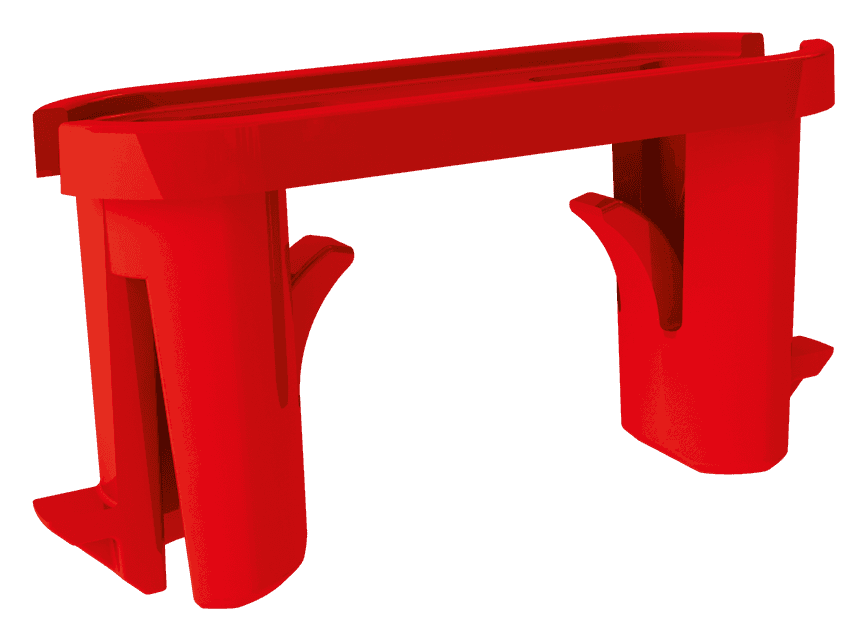

EcoBloc Connectors (10 pack)

GRAF · 402015

View specs
EcoBloc Connectors (200 pack) - GRAF - Stormwater Solutions Australia

EcoBloc Connectors (200 pack)

GRAF · 402025

View specs

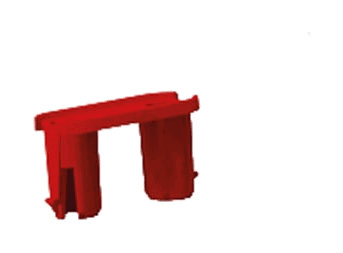

EcoBloc Connectors (25 pack) - GRAF - Stormwater Solutions Australia

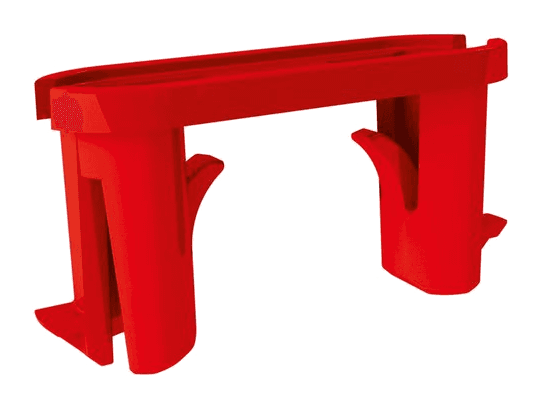

EcoBloc Connectors (25 pack)

GRAF · 402018

View specs

FAQ

EcoBloc Inspect Smart Module — common questions

What is EcoBloc used for in Australia?+
EcoBloc modular crates create underground stormwater detention, retention or infiltration volumes for WSUD and council OSD requirements on car parks, commercial roofs and civil sites.
Is EcoBloc inspectable after installation?+
Inspect Smart modules are designed for maintenance access so systems can be checked and cleaned according to the project O&M plan — important for Australian asset owners and councils.
How do EcoBloc systems compare to concrete tanks for detention?+
EcoBloc builds volume with lightweight modular crates and a flexible footprint; concrete tanks are monolithic vessels. Choice depends on load, depth, inspectability and programme. See the OSD tank guide on grafaustralia.com.au or request a quote.

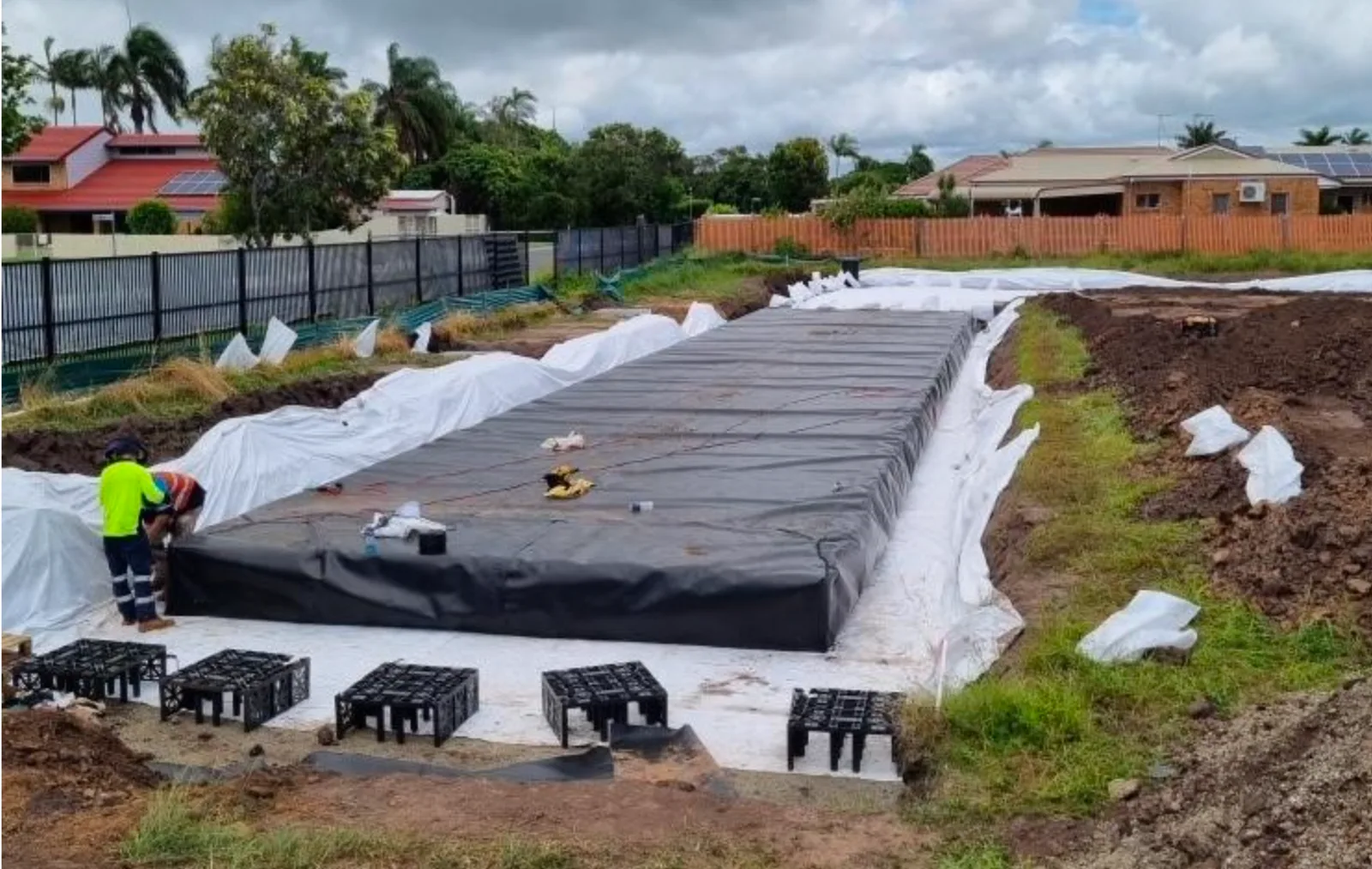

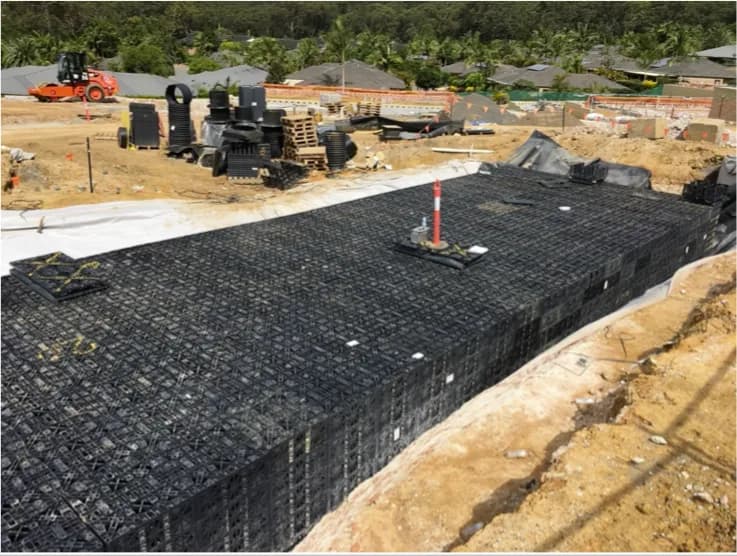

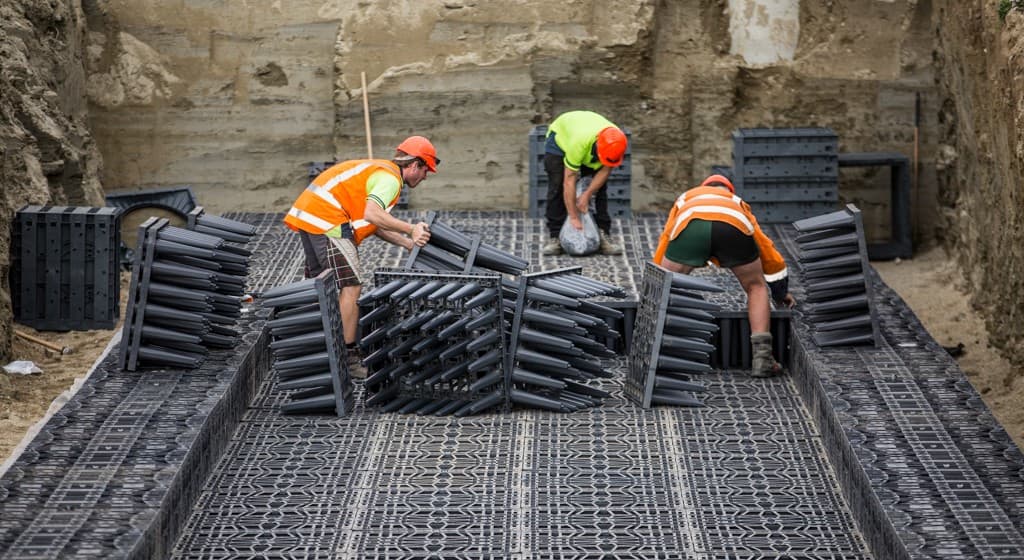

Real installations
