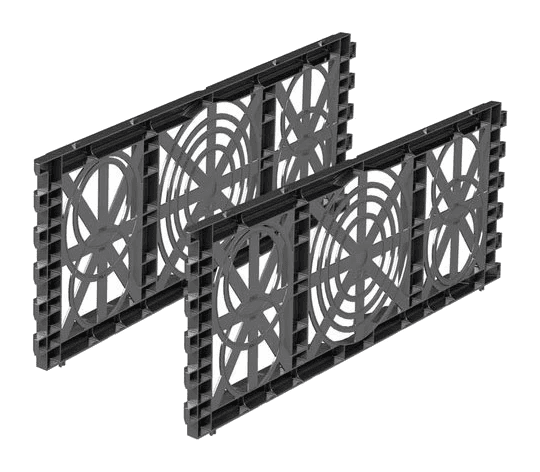

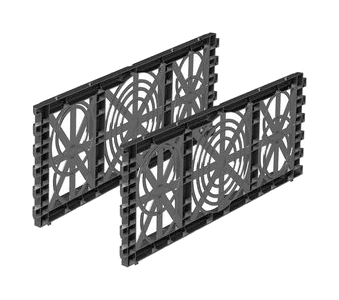

EcoBloc Smart End Plate Set (2 pcs)

End plates with DN100–250 connection faces for EcoBloc Smart tanks

Brand

GRAF

Range

Stormwater

SKU

402503

Selected SKU

402503

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards
15-year warrantyOn selected tank ranges
Recycled plasticsSustainable manufacturing

Typical applications

Civil sites
Attenuation
Infiltration

Full specification

Product details

Key construction, installation and performance notes for EcoBloc Smart End Plate Set (2 pcs).

Overview

Pair of end plates that close the sides of an EcoBloc Inspect Smart tank. Extra connection faces for DN100 / 125 / 150 / 200 / 250 pipe entries. Source: GRAF EcoBloc Inspect Smart accessories.

Specification focus

Technical documents

Brochures, drawings, manuals & BIM

Featured technical PDF

Installation Instructions for GRAF Eco Bloc Inspect smart

Official manufacturer document for specification and installation · MNL-086.pdf | Rev 1 | 1/05/2023.

Download PDF
