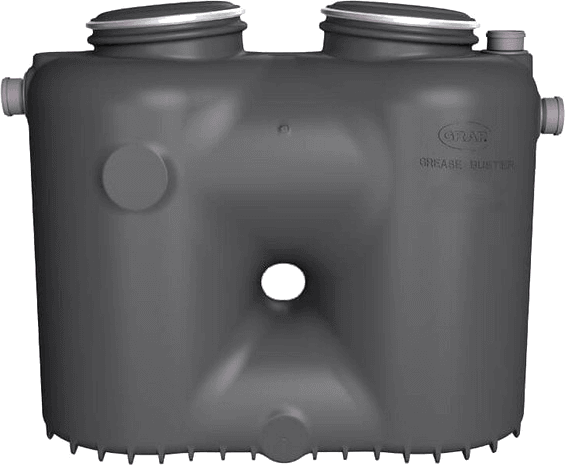

Grease Buster

Coming soon · 1,500 L

Lightweight above-ground grease trap for commercial kitchens, retrofits and sites where underground install is not possible.

Brand

GRAF

Range

Grease

Sizes

Size

Selected SKU

GB-1000

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Grease

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Specification-led

Quote for sizing

Key features

Above-ground installation and use

Lightweight and compact for easy transport and handling

Delivered ready to connect and operate

Ideal for retrofit, temporary, or constrained sites

TÜV-certified with CE marking and Declaration of Performance

Sizing available to EN 1825 on request

Tank (1,000 L available now; 1,500 L coming soon) including covers and inlet / outlet piping

Configuration level 2 adds a sight glass

Technical sizing

Size matrix & SKUs

2 technical rows - select above or quote directly

Size	Length	Width	Height	Weight	Connection	Order no.	Quote
1,000 L	1,565 mm	710 mm	1,220 mm	57 kg	DN100	-
1,500 LComing soon	1,950 mm	905 mm	1,620 mm	100 kg	DN100	108040

Above-ground installation only unless otherwise confirmed by GRAF engineering.
600 L is not offered in Australia. 1,000 L is available now; 1,500 L is coming soon.
Configuration levels 2 and 3 add sight glass / suction pipe. Confirm order number with sales for the required configuration.
Size selection depends on local water authority requirements. EN 1825 sizing available on request.

Technical data source: GRAF Grease Buster product table (graf.info) and AU dimensional drawings

Full specification

Product details

Key construction, installation and performance notes for Grease Buster.

Overview

The GRAF Grease Buster is an above-ground grease trap for commercial kitchens and meat-processing facilities where fats, oils and grease (FOG) must be retained before discharge to sewer or further treatment.

It uses the proven phase-separation principle in a lightweight polyethylene tank that installs above ground. That makes it especially suited to retrofits, temporary sites, and locations where excavation is not practical.

Specification focus

Advantages

6 verified points

Scope of delivery

3 verified points

Accessories

1 verified points

Detail 01

Advantages

Above-ground installation and use
Lightweight and compact for easy transport and handling
Delivered ready to connect and operate
Ideal for retrofit, temporary, or constrained sites
TÜV-certified with CE marking and Declaration of Performance
Sizing available to EN 1825 on request

Detail 02

Scope of delivery

Tank (1,000 L available now; 1,500 L coming soon) including covers and inlet / outlet piping
Configuration level 2 adds a sight glass
Configuration level 3 adds a sight glass and suction pipe
