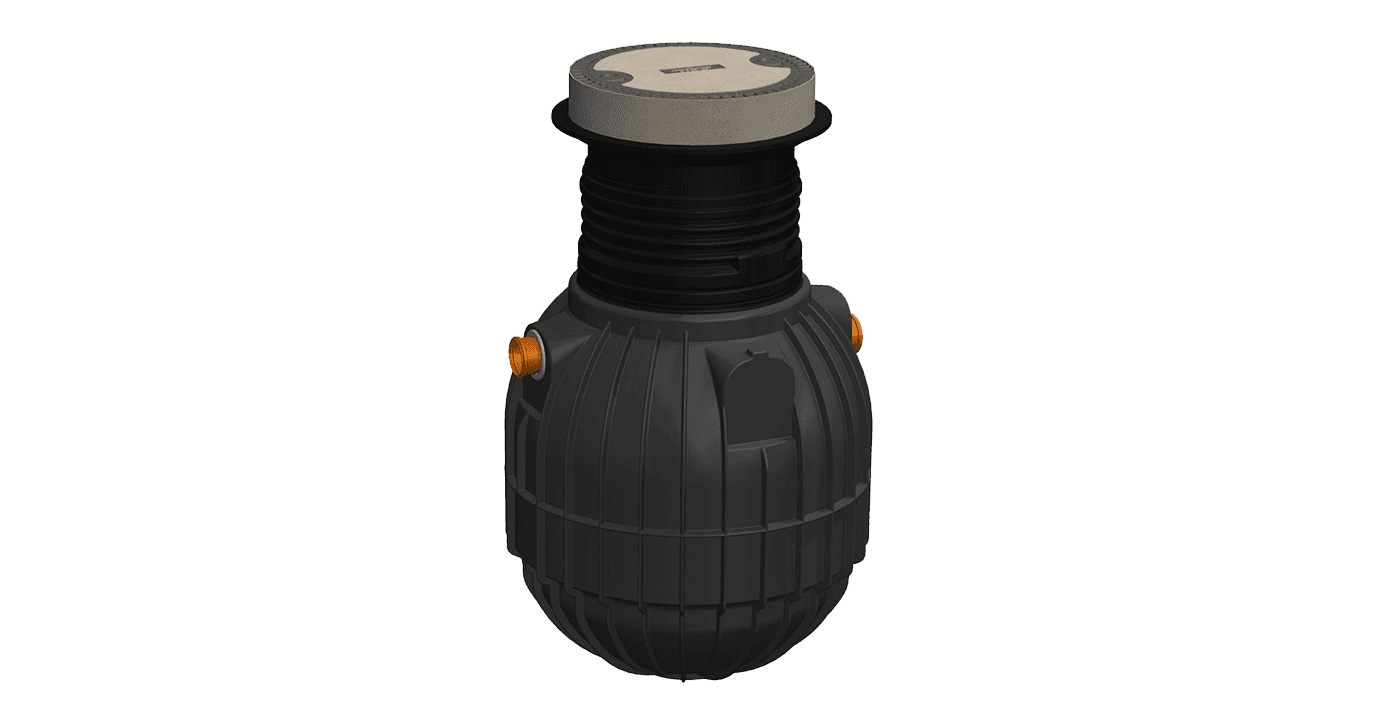

Grease Trap Sapphire

Underground grease separation for commercial kitchens and other FOG-contaminated wastewater.

Brand

GRAF

Range

Grease

Sizes

Size

Selected SKU

12.1101

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Grease

Certified qualityISO 9001 · AS/NZS standards

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Specification-led

Quote for sizing

Key features

Tanks certified to AS/NZS 1546.1

Access covers certified to AS 3996

Performance certified to EN 1825

Design life of 50 years

Telescopic shaft and lid allow adjustable height on site

Stable base allows easy installation without extra equipment or personnel

Extension rise with vent attachment and NBR sealing — order no. 371039

Telescopic dome shaft for concrete cover with NBR sealing — order no. 107974

Technical sizing

Size matrix & SKUs

4 technical rows - select above or quote directly

Size	Width	Height	Weight	Connection	Order no.
600 L	1,125 mm	1490–1690 mm	41 kg	DN100	12.1101
900 L	1,155 mm	1790–1990 mm	70 kg	DN100	12.1202
1,000 L	1,155 mm	2110–2310 mm	100 kg	DN100	12.1203
1,500 L	1,155 mm	2425–2625 mm	98 kg	DN100	12.1119

Size selection depends on local water authority requirements.

Technical data source: GRAF Australia Grease Trap Sapphire sizing table

Full specification

Product details

Key construction, installation and performance notes for Grease Trap Sapphire.

Overview

GRAF Grease Traps operate according to the principle of phase separation. The system comprises a separation zone, a fat, oil and grease (FOG) collection area and a sludge compartment. Reduced wastewater flow allows solids to settle while lower-density FOG floats. The purified water is discharged into the sewer or wastewater treatment plant. Required sizing depends on the local water authority.

Specification focus

Advantages

6 verified points

Accessories

7 verified points

Detail 01

Advantages

Tanks certified to AS/NZS 1546.1
Access covers certified to AS 3996
Performance certified to EN 1825
Design life of 50 years
Telescopic shaft and lid allow adjustable height on site
Stable base allows easy installation without extra equipment or personnel

Detail 02

Accessories

Extension rise with vent attachment and NBR sealing — order no. 371039
Telescopic dome shaft for concrete cover with NBR sealing — order no. 107974
Internal high-pressure cleaning kit — order no. POA
Solid Lid Class B — order no. 75.0016
Solid Lid Class D — order no. 75.0017
GA-1 warning system for grease level/service due with 10 m electric cable — order no. 106513
GA-2 warning system for grease level and high-level overflow with 5 m electric cable — order no. 106514

Technical documents

Brochures, drawings, manuals & BIM

Featured technical PDF

Operating manual for grease separator systems

Official manufacturer document for specification and installation.

Download PDF

Drawings

(6)

Grease separator NS 1 — Sapphire 600 L / 200 L sludgePDF Grease separator NS 2 — Sapphire 600 L / 200 L sludgePDF Grease separator NS 2 — Sapphire 900 L / 200 L sludgePDF Grease separator NS 2 — Sapphire 900 L / 400 L sludgePDF Grease separator NS 2 — Sapphire 1,200 L / 500 L sludgePDF Grease separator NS 4 — Sapphire 1,200 L / 500 L sludgePDF

Technical manuals

(1)

Operating manual for grease separator systemsPDF

BIM / Revit guidance

(1)

Sapphire grease separators — Revit 2025ZIP

Complete the system

Grease Trap Sapphire — common questions

Is the Sapphire Grease Trap for commercial kitchens?+

Yes. Sapphire is specified for commercial food premises that need an approved grease arrestor. Confirm size against kitchen peak flow and local trade waste rules with GRAF Australia.

Where do I buy a Sapphire Grease Trap in Australia?+

Request a quote at grafaustralia.com.au or call 1300 131 971. See the commercial grease trap Australia guide for sizing context and related products.

Sapphire vs under-sink grease trap: which do I need?+

Under-sink suits light loads. Most commercial kitchens need Sapphire, Grease Arrestor SC or similar capacity with cleaning access. Share fixture counts for a recommendation.
