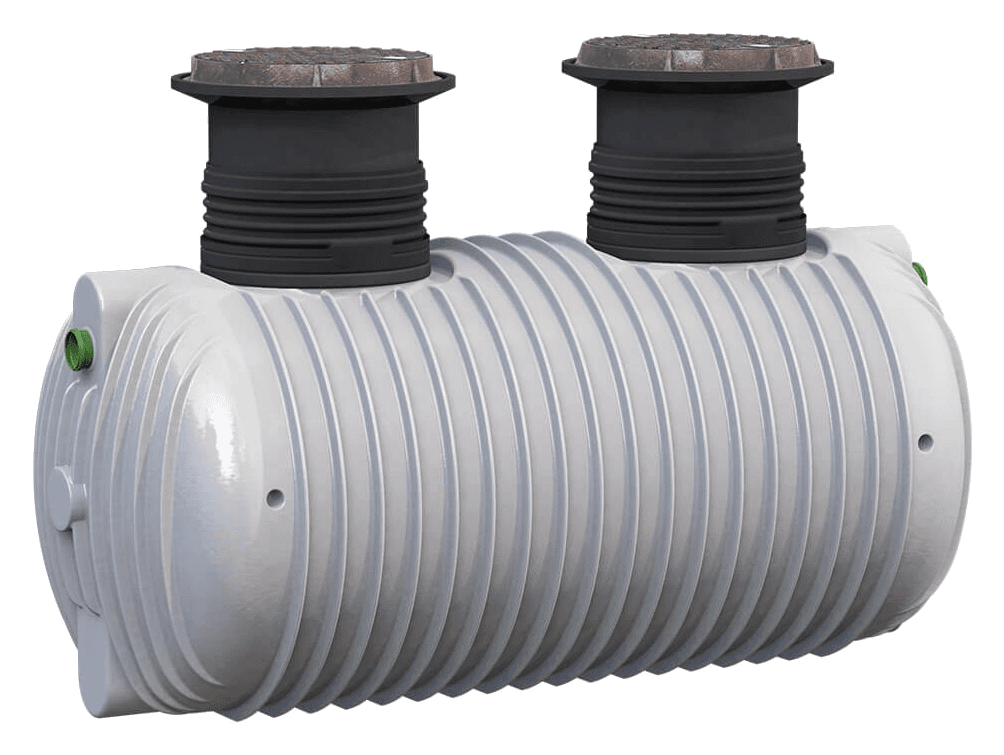

Grease Arrestor SC

High-capacity grease arrestor for commercial kitchens and industrial trade waste. Tank Features

Brand

GRAF

Range

Grease

Sizes

Size

Selected SKU

31.0004

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Grease View manufacturer source

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Specification-ledQuote for sizing

Key features

Delivered the correct way up, reducing time, cost and health and safety risk when handling units up to 275 kg

Remains in position and does not roll during backfill and compaction

Smooth internal surface for ease of maintenance, with optional remote suction line

Mid-connection points allow tanks to be interconnected for larger volumes

Approved by water authorities and local councils around Australia

AS/NZS 1546.1

10-year warranty

Watermarked fittings

Technical sizing

Size matrix & SKUs

6 technical rows - select above or quote directly

Size	Length	Width	Height	Weight	Connection	Order no.
2,000 L	3,000 mm	1,180 mm	1475–1775 mm	193 kg	DN100	31.0004
3,000 L	3,000 mm	1,415 mm	1715–2015 mm	240 kg	DN100	31.0005
4,000 L	3,000 mm	1,565 mm	1880–2180 mm	236 kg	DN100	31.0006
5,000 L	3,000 mm	1,735 mm	2045–2345 mm	306 kg	DN100	31.0007
8,000 L	3,490 mm	2,240 mm	2650–2950 mm	446 kg	DN100	31.0008
10,000 L	3,490 mm	2,240 mm	2650–2950 mm	446 kg	DN100	31.0008

Technical data source: GRAF Australia Grease Arrestor SC sizing table

Full specification

Product details

Key construction, installation and performance notes for Grease Arrestor SC.

Overview

GRAF Grease Arrestor SC tanks provide high-capacity grease separation for commercial and industrial trade-waste applications.

Specification focus

Tank Features

4 verified points

Approvals

6 verified points

Telescopic Covers

4 verified points

Detail 01

Tank Features

Delivered the correct way up, reducing time, cost and health and safety risk when handling units up to 275 kg
Remains in position and does not roll during backfill and compaction
Smooth internal surface for ease of maintenance, with optional remote suction line
Mid-connection points allow tanks to be interconnected for larger volumes

Detail 02

Approvals

Approved by water authorities and local councils around Australia
AS 3996
AS/NZS 1546.1
10-year warranty
Watermarked fittings
Structural integrity assessed using FEA

Detail 03

Telescopic Covers

GRAF lids include up to 300 mm of extension
Adjustable between 140 mm and 440 mm
Five-degree tilt allows a flush ground finish
An additional 300 mm extension is available as product code 371003

Detail 04

Accessories

GA-1 warning system for grease level/service due with 10 m electric cable — order no. 106513
GA-2 warning system for grease level and high-level overflow with 5 m electric cable — order no. 106514
Extension riser — order no. 371003
Solid Lid Class B — order no. 75.0016
Solid Lid Class D — order no. 75.0017
Internal high-pressure cleaning kit — order no. POA
Telescopic dome shaft for concrete cover with NBR sealing — order no. 107974
Extension rise with vent attachment and NBR sealing — order no. 371039
