Carat Pump Station Tank

GRAF

Carat Pump Station Tank

Submit pump station details Carat tank body for a packaged pump station / wet well (includes pump-out).

Brand

GRAF

Range

Pump

Sizes

4

Lid types

6

Size

Lid / load class

Selected SKU

10.0005-PS

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Pump Stations

Certified qualityISO 9001 · AS/NZS standards
Australian madeRotomoulded in Western Australia
15-year warrantyOn selected tank ranges
Recycled plasticsSustainable manufacturing

Typical applications

Pump-outWet wells

Technical sizing

Size matrix & SKUs

24 technical rows - select above or quote directly

Available loading / cover classes

Pedestrian coverClass B vehicle coverClass D truck lidGrated pedestrianGrated Class BGrated Class D
KeyPedestrianClass BClass DClass BGrated
SizeLengthWidthHeightWeightLid / variantLoad classOrder no.Quote
2,700 L2,080 mm1,565 mm2,010 mm120 kgPedestrian coverPedestrian372024
2,700 L2,080 mm1,565 mm2,010 mm120 kgClass B vehicle coverClass B372024
2,700 L2,080 mm1,565 mm2,010 mm120 kgClass D truck lidClass D372024
2,700 L2,080 mm1,565 mm2,010 mm120 kgGrated pedestrianPedestrianGrated372024
2,700 L2,080 mm1,565 mm2,010 mm120 kgGrated Class BClass BGrated372024
2,700 L2,080 mm1,565 mm2,010 mm120 kgGrated Class DClass DGrated372024
3,750 L2,280 mm1,755 mm2,200 mm150 kgPedestrian coverPedestrian372025
3,750 L2,280 mm1,755 mm2,200 mm150 kgClass B vehicle coverClass B372025
3,750 L2,280 mm1,755 mm2,200 mm150 kgClass D truck lidClass D372025
3,750 L2,280 mm1,755 mm2,200 mm150 kgGrated pedestrianPedestrianGrated372025
3,750 L2,280 mm1,755 mm2,200 mm150 kgGrated Class BClass BGrated372025
3,750 L2,280 mm1,755 mm2,200 mm150 kgGrated Class DClass DGrated372025
4,800 L2,280 mm1,985 mm2,430 mm185 kgPedestrian coverPedestrian372026
4,800 L2,280 mm1,985 mm2,430 mm185 kgClass B vehicle coverClass B372026
4,800 L2,280 mm1,985 mm2,430 mm185 kgClass D truck lidClass D372026
4,800 L2,280 mm1,985 mm2,430 mm185 kgGrated pedestrianPedestrianGrated372026
4,800 L2,280 mm1,985 mm2,430 mm185 kgGrated Class BClass BGrated372026
4,800 L2,280 mm1,985 mm2,430 mm185 kgGrated Class DClass DGrated372026
6,500 L2,390 mm2,190 mm2,710 mm220 kgPedestrian coverPedestrian372027
6,500 L2,390 mm2,190 mm2,710 mm220 kgClass B vehicle coverClass B372027
6,500 L2,390 mm2,190 mm2,710 mm220 kgClass D truck lidClass D372027
6,500 L2,390 mm2,190 mm2,710 mm220 kgGrated pedestrianPedestrianGrated372027
6,500 L2,390 mm2,190 mm2,710 mm220 kgGrated Class BClass BGrated372027
6,500 L2,390 mm2,190 mm2,710 mm220 kgGrated Class DClass DGrated372027

Technical data source: GRAF Carat S manufacturer sizing table

Full specification

Product details

Key construction, installation and performance notes for Carat Pump Station Tank.

Overview

Carat tank body for a packaged pump station / wet well (includes pump-out).

Specification focus

Technical documents

Brochures, drawings, manuals & BIM

Download brochure

Rainwater management brochure

PDF product information for specification and install planning.

Download PDF

Drawings

(18)
Carat 2700L MaxiPDF | DWG-222.pdf | Rev 1 | 17/05/2016Carat 2700L MiniPDF | DWG-227.pdf | Rev 1 | 17/05/2016Carat 3750L MaxiPDF | DWG-231.pdf | Rev 1 | 17/05/2016Carat 3750L MiniPDF | DWG-235.pdf | Rev 1 | 17/05/2016Carat 4800L MaxiPDF | DWG-239.pdf | Rev 1 | 17/05/2016Carat 4800L MiniPDF | DWG-243.pdf | Rev 1 | 17/05/2016Carat 6500L MaxiPDF | DWG-246.pdf | Rev 1 | 17/05/2016Carat 6500L MiniPDF | DWG-249.pdf | Rev 1 | 17/05/2016Carat Lifting Pump station dual freestanding (All Sizes)PDF | DWG-224.pdf | Rev 1 | 25/03/2020Carat Lifting Pump station single freestanding (All Sizes)PDF | DWG-220.pdf | Rev 1 | 25/03/2020Carat XL Lifting Pump station Dual freestanding (All Sizes)PDF | DWG-233.pdf | Rev 1 | 1/04/2020Carat XL Lifting Pump station single freestanding (All Sizes)PDF | DWG-229.pdf | Rev 1 | 1/04/20201000 L Sgl BIA PDG150M Guide Rail Sewerage Tank (White International)PDF | DWG-096.pdf | Rev 1 | 23/07/2014Garantia 1200L Tank ModelPDF | DWG-182.pdf | Rev 1 | 3/10/2013Garantia 600L Tank ModelPDF | DWG-153.pdf | Rev 1 | 3/10/2013Garantia 900L Tank ModelPDF | DWG-168.pdf | Rev 1 | 3/10/2013SEWATEC Lifting Stations Dual Freestanding PumpPDF | DWG-325.pdf | Rev 1 | 17/06/2021SEWATEC Lifting Stations Single Freestanding PumpPDF | DWG-324.pdf | Rev 1 | 17/06/2021

Technical manuals

(8)
Setup and Operation Instructions GRAF Pump StationsPDF | MNL-098.pdf | Rev 1 | 22/07/2024Assembly, Installation, Operation & Maintenance Instructions Sapphire & Carat Pump StationPDF | MNL-084.pdf | Rev 1 | 22/04/2022Installation and maintenance instructions for GRAF tank Carat XLPDF | MNL-066.pdf | Rev 2 | 28/11/2025GARANTIA Installation, assembly and maintenance instructions for Superstrong 600/900/1200/1500LPDF | MNL-105.pdf | Rev 2 | 6/07/2026GRAF Installation, assembly and maintenance instructions for Superstrong 600/900/1200/1500LPDF | MNL-104.pdf | Rev 1 | 21/08/2025Installation and maintenance instructions for GARANTIA Lilo XL/XXLPDF | MNL-099.pdf | Rev 3 | 21/08/2025XR AssemblyPDF | MNL-102.pdf | Rev 1 | 1/07/2024Graf Installation and Maintenance Instructions for GRAF Septic Tank Carat RS SeriesPDF | MNL-007.pdf | Rev 4 | 1/09/2020

Complete the system

Recommended products and accessories

Related products are matched from the same family, application and accessory groups so customers can build a complete quote basket.

Common accessories

Carat XL Pump Station Tank12 sizes

Carat XL Pump Station Tank

GRAF · CARAT-PUMP-STN-XL

View specs
Carat XXL Pump Station Tank72 sizes

Carat XXL Pump Station Tank

GRAF · CARAT-PUMP-STN-XXL

View specs

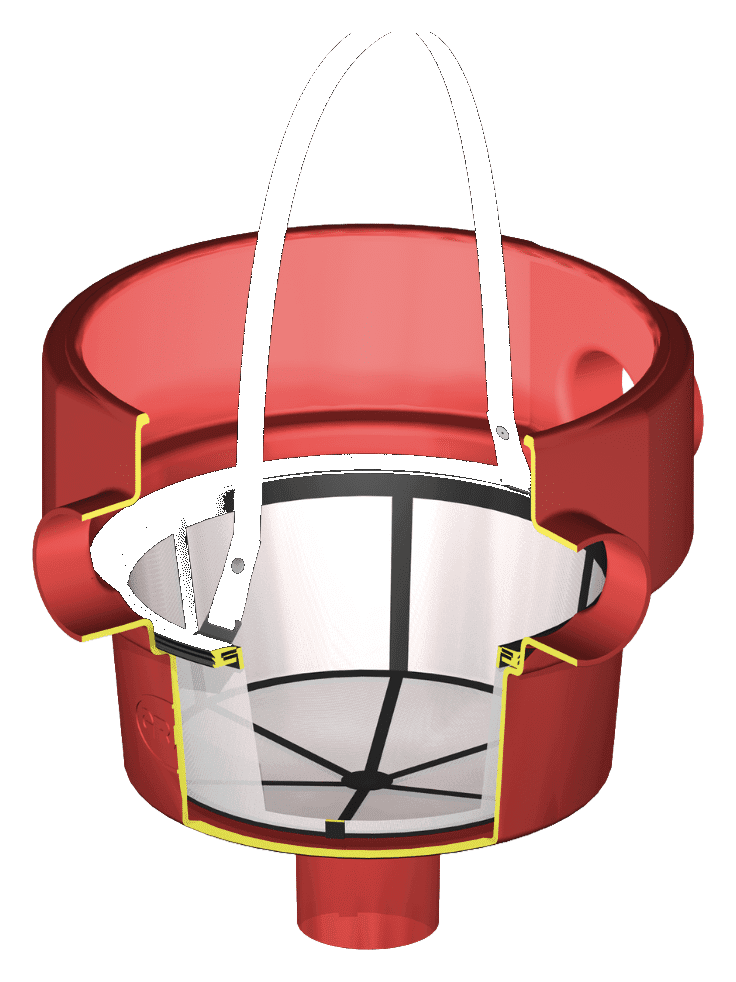

Carat Basket Filter

Carat Basket Filter

GRAF · 342002

View specs

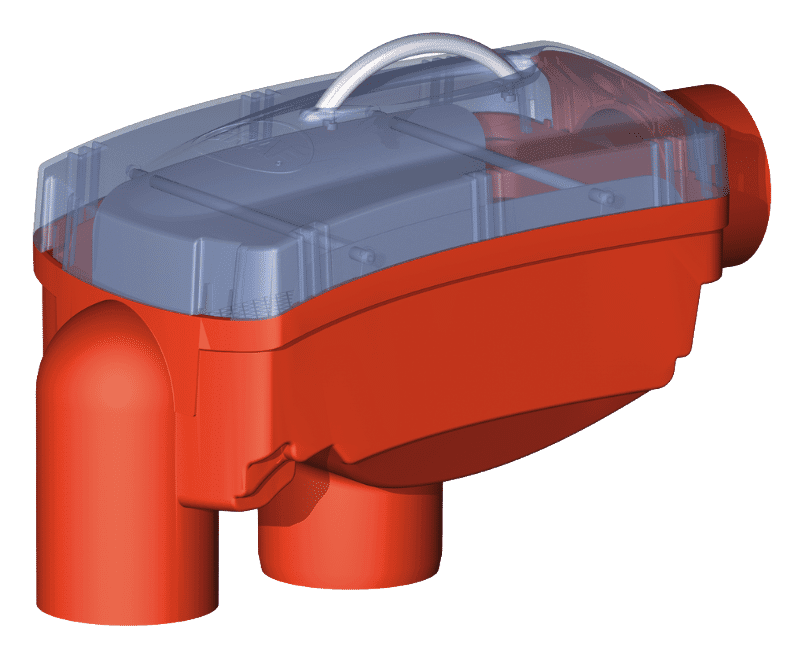

Carat Optimax Filter Package
