GRAF

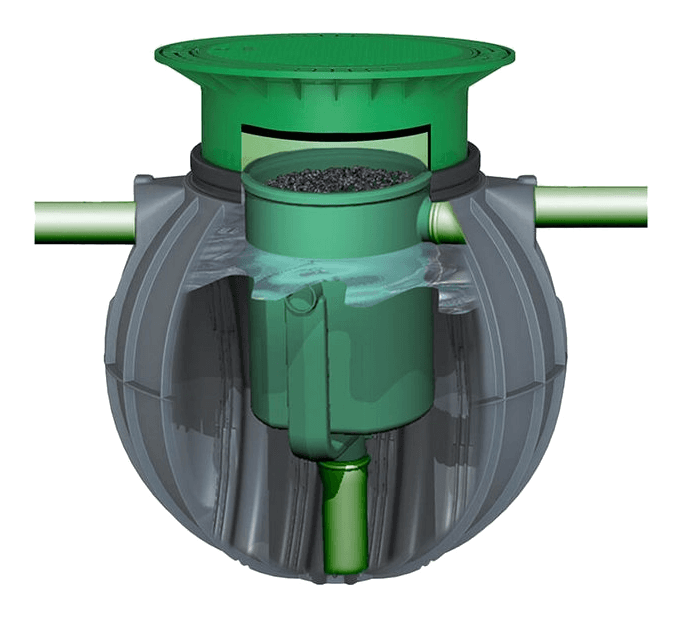

Sapphire Pump Station Tank
Submit pump station details Sapphire small pump station / pump-out tank.
Brand
GRAF
Range
Pump
Sizes
4
Lid types
6
Size
Lid / load class
Selected SKU
12.0104
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
Certified qualityISO 9001 · AS/NZS standards
Australian madeRotomoulded in Western Australia
15-year warrantyOn selected tank ranges
Recycled plasticsSustainable manufacturing
Typical applications
Pump-outWet wells
Technical sizing
Size matrix & SKUs
24 technical rows - select above or quote directly
Available loading / cover classes
Pedestrian coverClass B vehicle coverClass D truck lidGrated pedestrianGrated Class BGrated Class D
Sapphire manual lists telescopic dome shaft options for pedestrian, vehicle and HGV loading.
KeyPedestrianClass BClass DClass BGrated
| Size | Length | Width | Height | Weight | Lid / variant | Load class | Order no. | Quote |
|---|---|---|---|---|---|---|---|---|
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Pedestrian cover | Pedestrian | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Class B vehicle cover | Class B | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Class D truck lid | Class D | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Grated pedestrian | PedestrianGrated | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Grated Class B | Class BGrated | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Grated Class D | Class DGrated | 12.1101 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Pedestrian cover | Pedestrian | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Class B vehicle cover | Class B | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Class D truck lid | Class D | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Grated pedestrian | PedestrianGrated | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Grated Class B | Class BGrated | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Grated Class D | Class DGrated | 12.1102 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Pedestrian cover | Pedestrian | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Class B vehicle cover | Class B | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Class D truck lid | Class D | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Grated pedestrian | PedestrianGrated | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Grated Class B | Class BGrated | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Grated Class D | Class DGrated | 12.1103 | |
| 1,500 L | 1,310 mm | 1,455 mm | 1,980 mm | 110 kg | Pedestrian cover | Pedestrian | 12.1119 | |
| 1,500 L | 1,310 mm | 1,455 mm | 1,980 mm | 110 kg | Class B vehicle cover | Class B | 12.1119 | |
| 1,500 L | 1,310 mm | 1,455 mm | 1,980 mm | 110 kg | Class D truck lid | Class D | 12.1119 | |
| 1,500 L | 1,310 mm | 1,455 mm | 1,980 mm | 110 kg | Grated pedestrian | PedestrianGrated | 12.1119 | |
| 1,500 L | 1,310 mm | 1,455 mm | 1,980 mm | 110 kg | Grated Class B | Class BGrated | 12.1119 | |
| 1,500 L | 1,310 mm | 1,455 mm | 1,980 mm | 110 kg | Grated Class D | Class DGrated | 12.1119 |
Technical data source: MNL-018 Sapphire technical data table
Full specification
Product details
Key construction, installation and performance notes for Sapphire Pump Station Tank.
Overview
Sapphire small pump station / pump-out tank.
Specification focus
Technical documents
Brochures, drawings, manuals & BIM
Download brochure
Rainwater management brochure
PDF product information for specification and install planning.
Brochures & catalogues
(1)Drawings
(18)SEWATEC Lifting Stations Dual Freestanding PumpPDF | DWG-325.pdf | Rev 1 | 17/06/2021SEWATEC Lifting Stations Single Freestanding PumpPDF | DWG-324.pdf | Rev 1 | 17/06/2021Lifting Pump station dual freestanding 1500LPDF | DWG-216.pdf | Rev 1 | 25/03/2020Lifting Pump station single freestanding 1500LPDF | DWG-212.pdf | Rev 1 | 25/03/2020Sapphire 1200 L XR/AW Dual Pump Station 3DPDF | DWG-197.pdf | Rev 1 | 2/03/2017Sapphire 600 L XR/AW Dual Pump Station 3DPDF | DWG-187.pdf | Rev 1 | 2/03/2017Sapphire 900 L XR/AW Dual Pump Station 3DPDF | DWG-192.pdf | Rev 1 | 2/03/20171000 L Sgl BIA PDG150M Guide Rail Sewerage Tank (White International)PDF | DWG-096.pdf | Rev 1 | 23/07/2014Garantia 1200L Tank ModelPDF | DWG-182.pdf | Rev 1 | 3/10/2013Garantia 600L Tank ModelPDF | DWG-153.pdf | Rev 1 | 3/10/2013Garantia 900L Tank ModelPDF | DWG-168.pdf | Rev 1 | 3/10/2013Carat Lifting Pump station dual freestanding (All Sizes)PDF | DWG-224.pdf | Rev 1 | 25/03/2020Carat Lifting Pump station single freestanding (All Sizes)PDF | DWG-220.pdf | Rev 1 | 25/03/2020Carat XL Lifting Pump station Dual freestanding (All Sizes)PDF | DWG-233.pdf | Rev 1 | 1/04/2020Carat XL Lifting Pump station single freestanding (All Sizes)PDF | DWG-229.pdf | Rev 1 | 1/04/2020Dual 1200 L Packaged Pumping Station Sewerage Grinder (White International)PDF | DWG-090.pdf | Rev 1 | 20/07/2014Dual 1200 L Packaged Pumping Station Stormwater (White International)PDF | DWG-073.pdf | Rev 1 | 20/07/2014Dual 600 L Packaged Pumping Station Sewerage Grinder (White International)PDF | DWG-079.pdf | Rev 1 | 22/11/2014
Technical manuals
(8)Setup and Operation Instructions GRAF Pump StationsPDF | MNL-098.pdf | Rev 1 | 22/07/2024Assembly, Installation, Operation & Maintenance Instructions Sapphire & Carat Pump StationPDF | MNL-084.pdf | Rev 1 | 22/04/2022XR AssemblyPDF | MNL-102.pdf | Rev 1 | 1/07/2024Installation and maintenance instructions for GRAF tank Carat XLPDF | MNL-066.pdf | Rev 2 | 28/11/2025GARANTIA Installation, assembly and maintenance instructions for Superstrong 600/900/1200/1500LPDF | MNL-105.pdf | Rev 2 | 6/07/2026GRAF Installation, assembly and maintenance instructions for Superstrong 600/900/1200/1500LPDF | MNL-104.pdf | Rev 1 | 21/08/2025Installation and maintenance instructions for GARANTIA Lilo XL/XXLPDF | MNL-099.pdf | Rev 3 | 21/08/2025Assembly and Installation Instructions Grease Separator Sapphire (KLsepa.pop/Saphir)PDF | MNL-107.pdf | Rev 1 | 19/01/2026
BIM / Revit guidance
(1)Complete the system
Recommended products and accessories
Related products are matched from the same family, application and accessory groups so customers can build a complete quote basket.
Recommended with this product
Size this product for your project
Send us your plans, catchment area, or PE count - we'll confirm the right configuration and issue a quote.
Request a quote
