Pump Stations
Engineered for Australian conditionsSpecification-led, not off-the-shelfTechnical drawings & BIM availableNational distribution network
Pump-out wet wells - stormwater and wastewater transfer

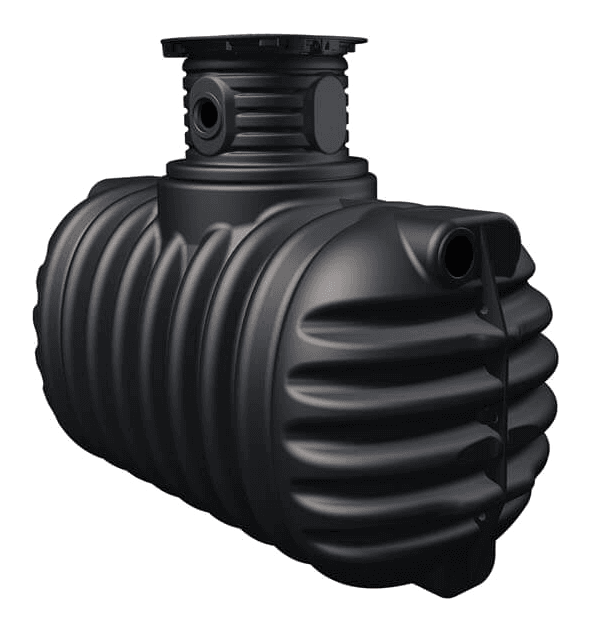

GRAF Carat pump-out wet well
Manufacturer product photography with system steps listed alongside
System steps
Pump station system
Underground collection flows into a GRAF Carat or Sapphire pump-out wet well, where submersible pumps transfer water to the discharge header.
- 1Stormwater or wastewater flows to underground collection point
- 2GRAF Carat / Sapphire pump-out tank - pre-fabricated wet well with access cover
- 3Submersible pump, riser pipework and level controls
- 4Discharge to sewer main, irrigation or downstream treatment
