Detail 01
Scope of supply
Tank, lid, strainer and overflow.
GRAF

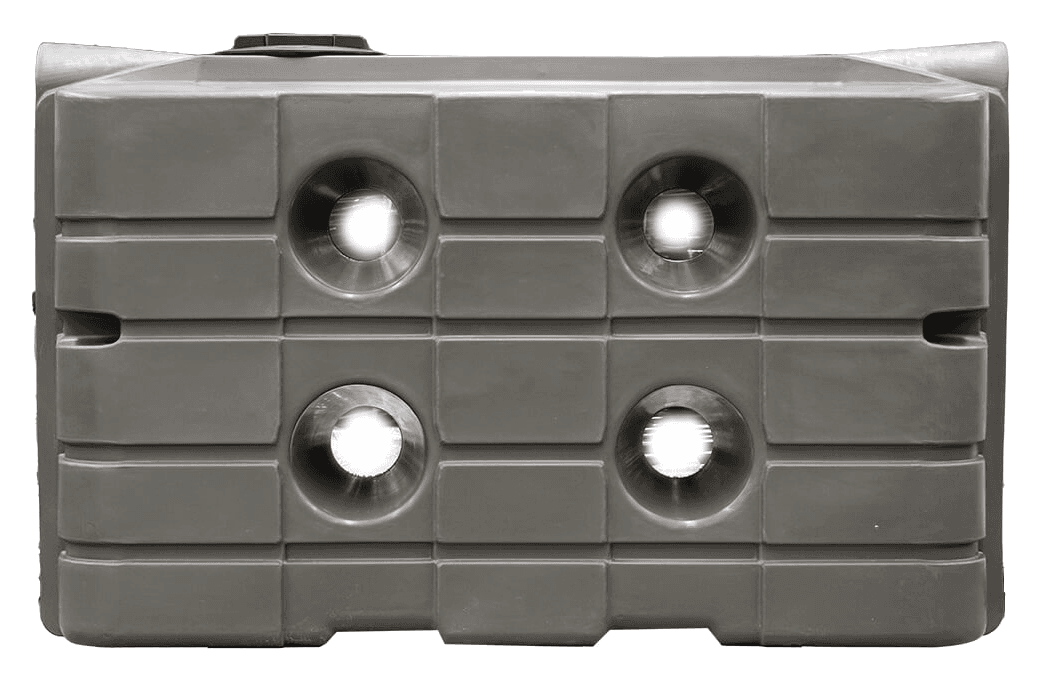

GRAF Slimline Rainwater Tank
Australian-made slimline above-ground rainwater tank (1,100 L and 3,000 L). UV-stabilised polyethylene for tight side setbacks. Price on request.
Brand
GRAF
Range
Rainwater
Sizes
2
Size
Dimensions: L 2,000 mm · W 575 mm · H 1,200 mm
Selected SKU
02.0046
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
This product range is authorised to display the Australian Made logo. Tap the logo for the certificate PDF (tender packs and specifications).
Typical applications
Key features
Australian made
Slim footprint for limited side access and boundary installs
AU catalogue sizes: 1,100 L and 3,000 L
UV-stabilised, food-grade polyethylene
Manufactured and certified to ISO 9001 and AS 4766
GRAF standard colour range (see colour matching guide)
3,000 L connections: 20 mm (3/4 inch) tap outlet, 25 mm (1 inch) drain, 90 mm overflow with insect mesh, approx. 455 mm cover with leaf strainer
Technical sizing
Size matrix & SKUs
2 technical rows - select above or quote directly
| Size | Length | Width | Height | Weight | Order no. | Quote |
|---|---|---|---|---|---|---|
| 1,100 L | 2,000 mm | 575 mm | 1,200 mm | 55 kg | 02.0046 | |
| 3,000 L | 2,720 mm | 720 mm | 1,990 mm | 137 kg | 02.2301 |
- 1,100 L sizing from the GRAF Australia Slimline product sheet (575 x 2,000 x 1,200 mm, 55 kg).
- 3,000 L sizing from the Garantia Slimline 3000 drawing: 2,720 mm long x 720 mm deep x 1,990 mm overall height (1,965 mm to shoulder), 137 kg.
- 3,000 L fittings: 20 mm (3/4 inch) tap connection about 350 mm above base, 25 mm (1 inch) drain, 90 mm overflow with insect mesh, approx. 455 mm cover with leaf strainer. Over-tightening the tap voids the warranty.
- Available in the GRAF standard colour range. See the Matrix colour matching guide for Colorbond-style name cross-references.
- Confirm chemical resistance with GRAF before ordering for non-water liquids.
Full specification
Product details
Key construction, installation and performance notes for GRAF Slimline Rainwater Tank.
Overview
The GRAF Slimline Rainwater Tank is an Australian-made above-ground polyethylene tank for narrow side setbacks, boundary walls and other tight house and garden sites. AU catalogue sizes are 1,100 L and 3,000 L.
Tanks are UV-stabilised and made from food-grade polyethylene, suitable for rainwater storage and other liquids (confirm chemical resistance with GRAF before ordering). Available in the GRAF standard colour range to help match common roof and wall colours.
Specification focus
Australian made
Slim footprint for limited side access and boundary installs
AU catalogue sizes: 1,100 L and 3,000 L
UV-stabilised, food-grade polyethylene
Manufactured and certified to ISO 9001 and AS 4766
GRAF standard colour range (see colour matching guide)
Detail 02
Key features
- Australian made
- Slim footprint for limited side access and boundary installs
- AU catalogue sizes: 1,100 L and 3,000 L
- UV-stabilised, food-grade polyethylene
- Manufactured and certified to ISO 9001 and AS 4766
- GRAF standard colour range (see colour matching guide)
- 3,000 L connections: 20 mm (3/4 inch) tap outlet, 25 mm (1 inch) drain, 90 mm overflow with insect mesh, approx. 455 mm cover with leaf strainer
Detail 03
Application
Residential and light commercial above-ground rainwater storage where excavation is not viable. Price on request for Australian sites.
