Detail 01
Scope of supply
Tank, lid, strainer and overflow.
GRAF

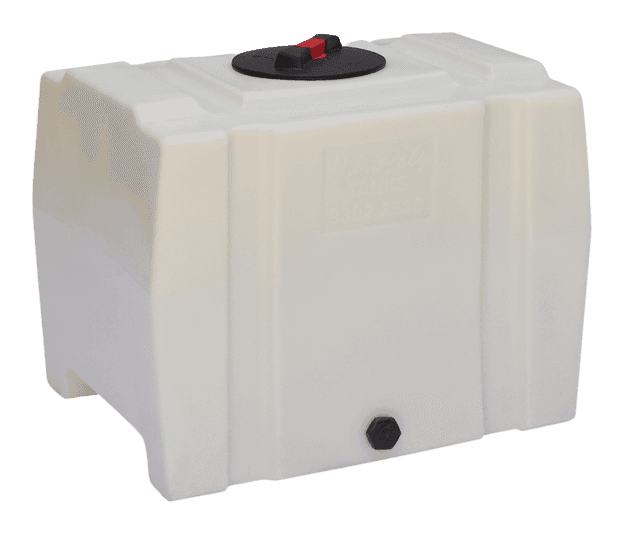

GRAF Water Cartage Tank
Australian-made UV-stabilised cartage tank (200-1,000 L). Food-grade polyethylene; grey option for potable water. Price on request.
Brand
GRAF
Range
Rainwater
Sizes
5
Size
Dimensions: L 770 mm · W 560 mm · H 630 mm
Selected SKU
03.0002
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
This product range is authorised to display the Australian Made logo. Tap the logo for the certificate PDF (tender packs and specifications).
Typical applications
Key features
Australian made
UV-stabilised polyethylene
Food-grade natural polyethylene suitable for water storage (confirm chemical resistance with GRAF before ordering)
Transport-focused design with moulded strap grooves
AU catalogue sizes: 200 L, 400 L, 600 L, 800 L and 1,000 L
Manufactured and certified to ISO 9001 and AS 4766
Technical sizing
Size matrix & SKUs
5 technical rows - select above or quote directly
| Size | Length | Width | Height | Weight | Order no. | Quote |
|---|---|---|---|---|---|---|
| 200 L | 770 mm | 560 mm | 630 mm | 20 kg | 03.0002 | |
| 400 L | 920 mm | 750 mm | 760 mm | 30 kg | 03.0005 | |
| 600 L | 1,280 mm | 880 mm | 885 mm | 40 kg | 03.0008 | |
| 800 L | 1,620 mm | 880 mm | 885 mm | 50 kg | 03.0011 | |
| 1,000 L | 1,860 mm | 915 mm | 980 mm | 60 kg | 03.0014 |
- Dimensions and weights from the Australian Cartage tank sizing table.
- For potable or drinking-water storage, select the grey tank option.
- Confirm chemical resistance with GRAF before ordering for non-water liquids.
Full specification
Product details
Key construction, installation and performance notes for GRAF Water Cartage Tank.
Overview
The GRAF Water Cartage Tank is an Australian-made above-ground polyethylene tank designed for transporting and storing water, chemicals and other liquids. AU catalogue sizes run from 200 L to 1,000 L.
Tanks are UV-stabilised and made from food-grade natural polyethylene. For potable or drinking-water storage, select the grey tank option.
Specification focus
Australian made
UV-stabilised polyethylene
Food-grade natural polyethylene suitable for water storage (confirm chemical resistance with GRAF before ordering)
Transport-focused design with moulded strap grooves
AU catalogue sizes: 200 L, 400 L, 600 L, 800 L and 1,000 L
Manufactured and certified to ISO 9001 and AS 4766
Detail 02
Key features
- Australian made
- UV-stabilised polyethylene
- Food-grade natural polyethylene suitable for water storage (confirm chemical resistance with GRAF before ordering)
- Transport-focused design with moulded strap grooves
- AU catalogue sizes: 200 L, 400 L, 600 L, 800 L and 1,000 L
- Manufactured and certified to ISO 9001 and AS 4766
Detail 03
Application
Agricultural, industrial and domestic cartage and above-ground liquid storage. Price on request for Australian sites.
