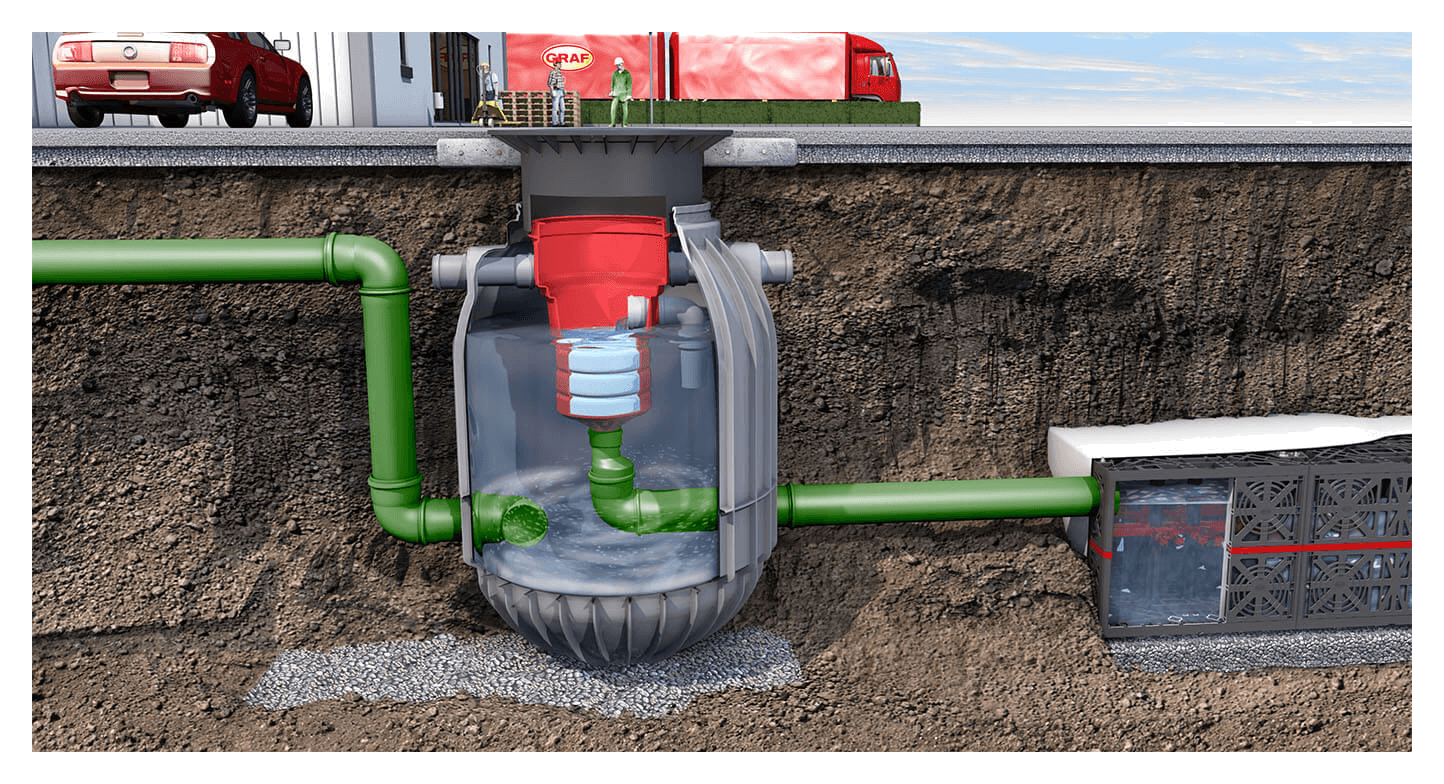

EcoPure 200 Substrate Filter

EcoPure 200 is an external substrate filter with PureSorp media and DIBt building-authority approval (Z-84.2-24). Meets DWA-A 138-1 Area Category III for roof surfaces through.

Brand

GRAF

Range

Stormwater

SKU

340155

Selected SKU

340155

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sites

Attenuation

Infiltration

Roof runoff

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Load class

PedestrianClass BClass D

KeyPedestrianClass BClass D

Size	Length	Width	Height	Weight	Catchment	Load class	Order no.	Quote
Standard	1,620 mm	1,155 mm	1,670 mm	105 kg	200 m²	-	340155

DIBt Z-84.2-24. Replacement substrate set art. 231010 (3 filter bags with lifting mechanism).
Covers ordered separately (telescopic dome shafts).

Technical data source: https://www.graf.info/en/products/rainwater-treatment/ecopure-200-substrate-filter.html

Full specification

Product details

Key construction, installation and performance notes for EcoPure 200 Substrate Filter.

Overview

EcoPure 200 is an external substrate filter with PureSorp media and DIBt building-authority approval (Z-84.2-24). Meets DWA-A 138-1 Area Category III for roof surfaces through heavily trafficked areas — coverage up to ~200 m². Multi-stage purification; substrate dries between events for consistently high efficiency; easy bag replacement without heavy equipment. Fully assembled, vehicle-trafficable. Source: graf.info EcoPure 200.
