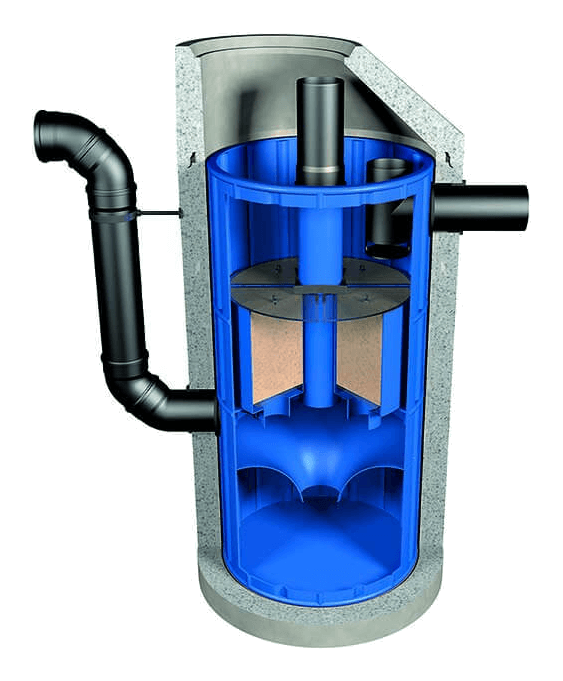

EcoClean 1000 Substrate Filter

Request EcoClean 1000 sizing EcoClean 1000 is a decentralised concrete-shaft substrate filter for DWA-A 138-1 Category III surfaces, with DIBt approval. Sedimentation into a flow-calmed sludge trap, then filter cartridges remove heavy metals, minera

Brand

GRAF

Range

Stormwater

SKU

470050

Selected SKU

470050

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltrationRoof runoff

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Available loading / cover classes

Class BClass D

Concrete shaft NW 1000 + 600 mm cone; DN200 inlet/outlet

Cover and alternative cone not included

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Connection	Load class	Order no.	Quote
Standard	1,750 mm	1,300 mm	2,800 mm	3,350 kg	DN200 · Ø 1300 mm	-	470050

Technical data source: https://www.graf.info/en/products/rainwater-treatment/ecoclean-1000-substrate-filter.html

Full specification

Product details

Key construction, installation and performance notes for EcoClean 1000 Substrate Filter.

Overview

EcoClean 1000 is a decentralised concrete-shaft substrate filter for DWA-A 138-1 Category III surfaces, with DIBt approval. Sedimentation into a flow-calmed sludge trap, then filter cartridges remove heavy metals, mineral oil hydrocarbons and PAHs and bind phosphates — treated water is suitable for direct discharge to infiltration. No inlet/outlet height offset, DN200 connections, pre-assembled, vehicle loading. Source: graf.info EcoClean 1000.
