EcoPure PFAS Substrate Filter

Request EcoPure PFAS substrate filter sizing (available Sep 2026) EcoPure PFAS is a compact external substrate filter in a robust plastic shaft for treating PFAS-contaminated stormwater runoff before infiltration. PureSorp PFAS media is tuned for PFAS removal; multi-stage path with flo

Brand

GRAF

Range

Stormwater

SKU

340167

Selected SKU

340167

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltrationRoof runoff

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Available loading / cover classes

Class D / truck

Article 340167 · PureSorp PFAS substrate · ~1,000 m² catchment

DN250 connections · no inlet/outlet height offset

DIBt approval applied for · available from September 2026

Cone, cover and accessories not included

Scope: shaft base with flow breaker; pre-assembled rings with inlet/outlet DN250, connectors, inlet section, lamella pack, filter cartridge with fill pipes; PureSorp PFAS media

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Connection	Load class	Order no.	Quote
Standard	1,380 mm	1,250 mm	3,235 mm	535 kg	DN250 · Ø 1250 mm	-	340167

Technical data source: https://www.graf.info/de/regenwasserbehandlung/spezialanwendungen-in-der-regenwasserbehandlung/ecopure-pfas-substratfilter.html

Full specification

Product details

Key construction, installation and performance notes for EcoPure PFAS Substrate Filter.

Overview

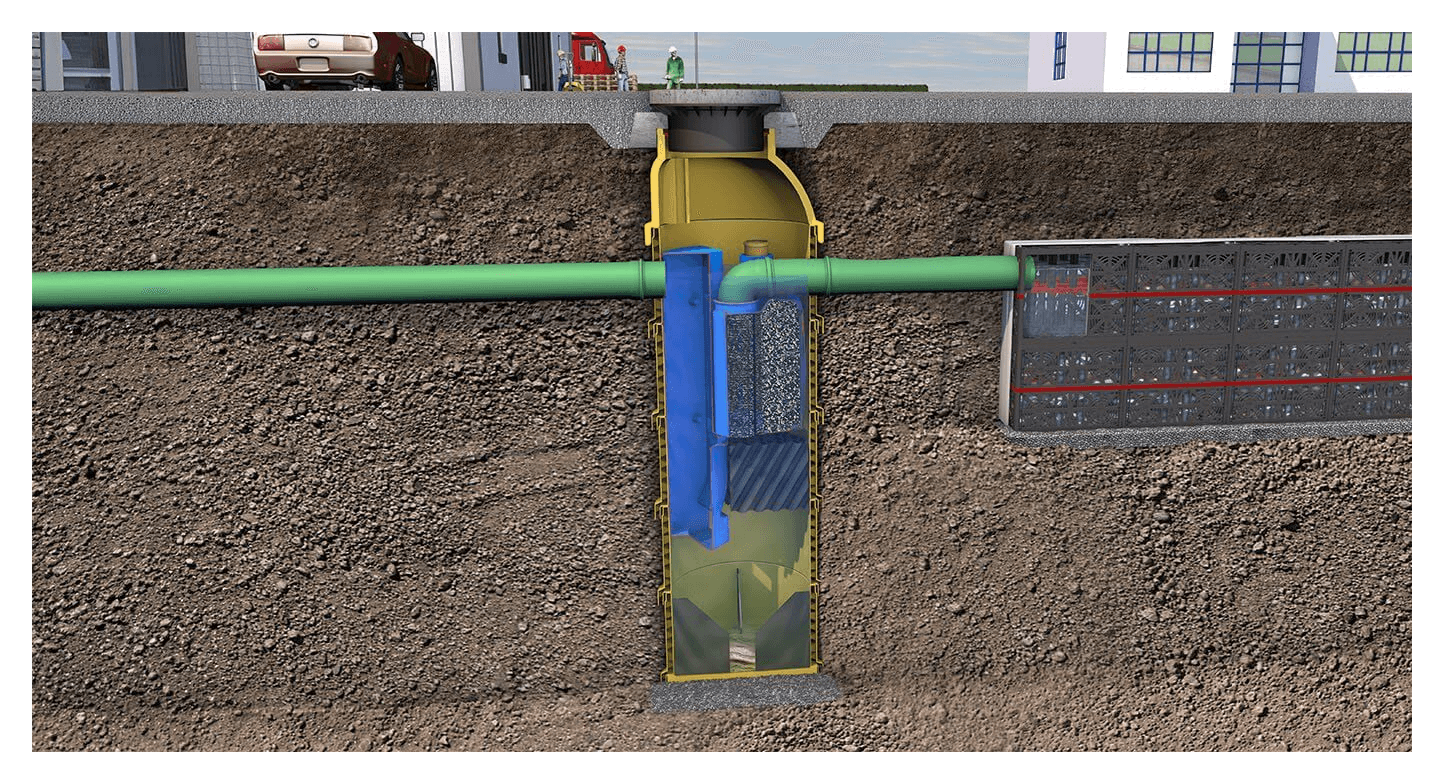

EcoPure PFAS is a compact external substrate filter in a robust plastic shaft for treating PFAS-contaminated stormwater runoff before infiltration. PureSorp PFAS media is tuned for PFAS removal; multi-stage path with flow breaker, lamella pack and filter cartridge. DN250 inlet/outlet with no height offset, ~1,000 m² connected catchment, pre-assembled, truck-accessible. DIBt approval applied for. Available from September 2026. Source: graf.info EcoPure PFAS.

Specification focus
