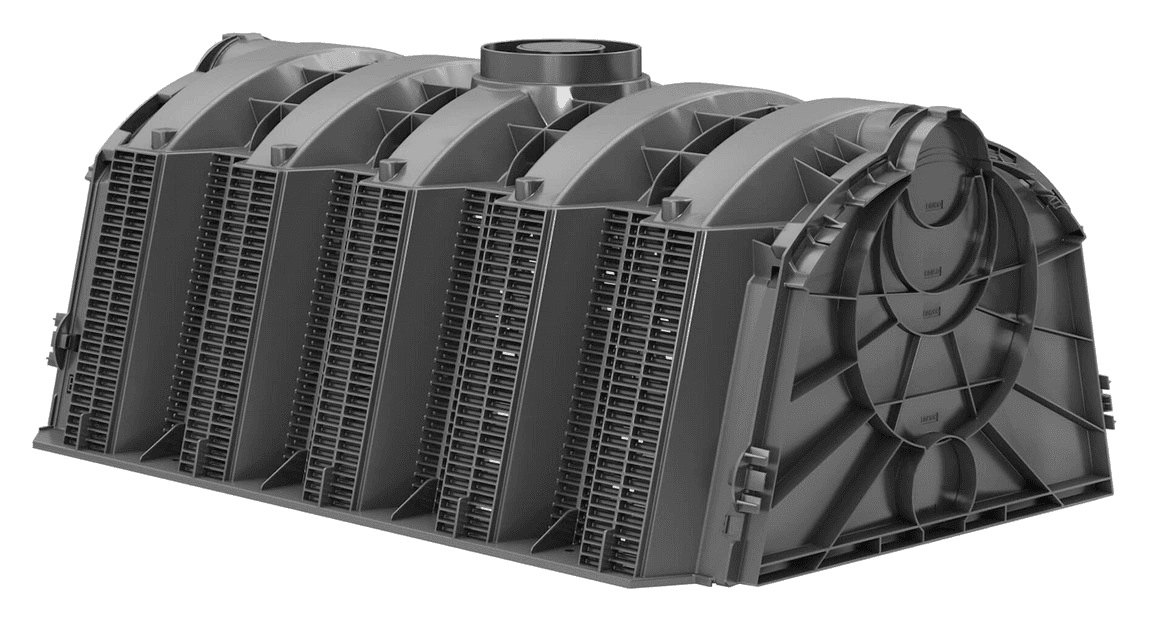

GRAF Infiltration Tunnel 300

Request infiltration tunnel sizing GRAF Infiltration Tunnel 300 - modular infiltration tunnel for decentralised stormwater soakage. The tunnel modules are laid in lines, joined together and fitted with end plates to suit the required infiltration volume.

Brand

GRAF

Range

Stormwater

SKU

230010

Selected SKU

230010

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions View manufacturer source

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltration

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Available loading / cover classes

Vehicle load bearing with suitable installation design

The GRAF Infiltration Tunnel is installed in one or more lines and equipped with two end plates per line.

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Load class	Order no.	Quote
300	1,160 mm	800 mm	510 mm	11 kg	-	230010

Technical data source: GRAF Infiltration Tunnel 300 manufacturer data

Full specification

Product details

Key construction, installation and performance notes for GRAF Infiltration Tunnel 300.

Overview

GRAF Infiltration Tunnel 300 - modular infiltration tunnel for decentralised stormwater soakage. The tunnel modules are laid in lines, joined together and fitted with end plates to suit the required infiltration volume. Source: graf.info.

Specification focus

Technical documents
