Carat M 153 Sedimentation Tank

GRAF

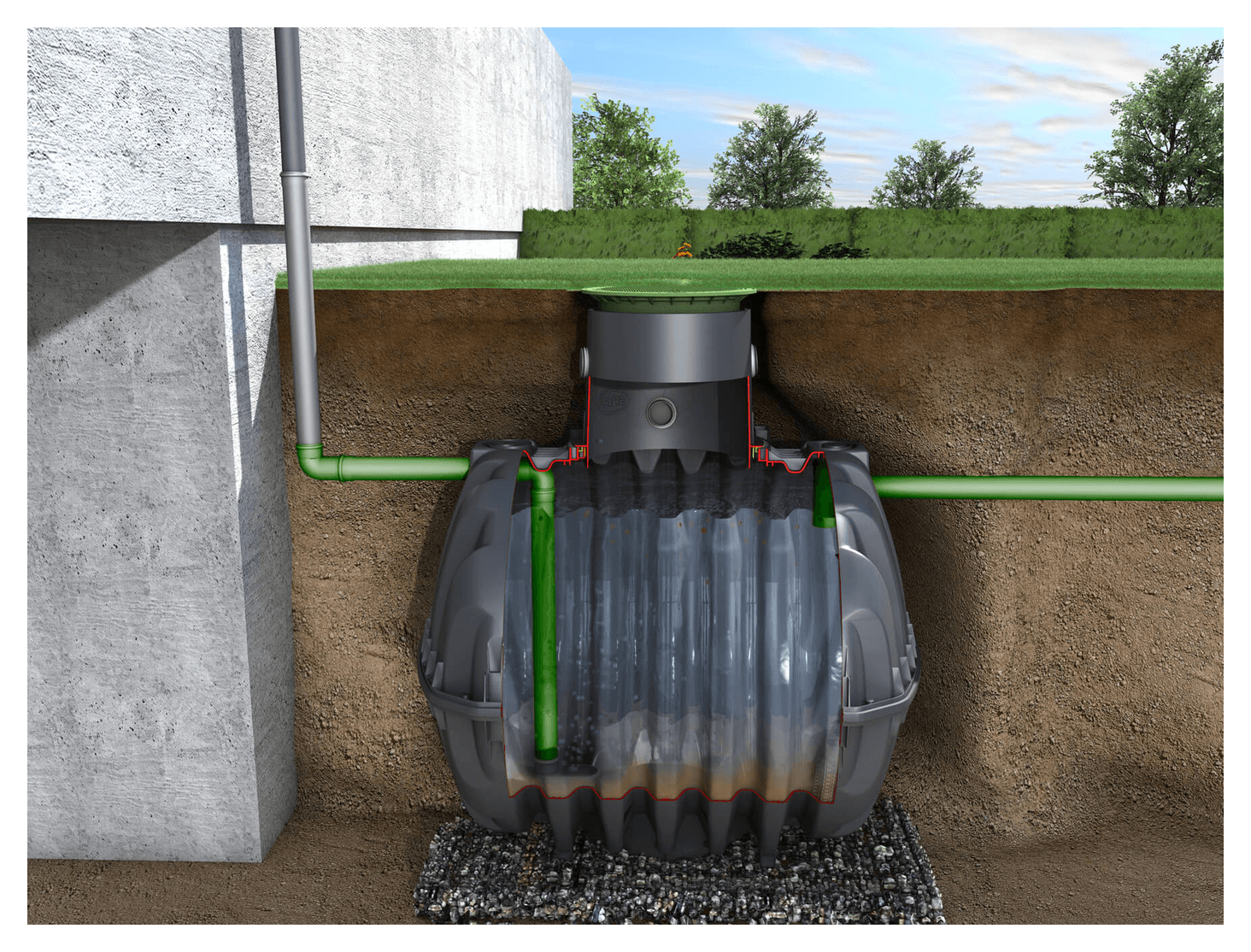

Carat M 153 Sedimentation Tank

Request Carat M 153 sedimentation sizing Carat underground tank configured as a DWA-M 153 sedimentation system. Optional external coarse filter with calmed inlet pot and outlet baffle. Volumes 2,700–6,500 L with DN110 / DN160. Pedestrian through truck covers. D

Brand

GRAF

Range

Stormwater

Sizes

6

Size

Selected SKU

370550

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards
Australian madeRotomoulded in Western Australia
15-year warrantyOn selected tank ranges
Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltration

Technical sizing

Size matrix & SKUs

6 technical rows - select above or quote directly

Available loading / cover classes

Pedestrian coverClass B vehicle coverClass D truck lid

Part of GRAF DWA-M 153 sedimentation systems (Diamant excluded)

Family: DWA-M 153 sedimentation systems — SediProtect, Saphir Universalschacht, Carat, Vario 800 EcoBloc

Saphir / Carat / Vario: sedimentation tank with optional external coarse filter; calmed inlet pot + outlet baffle

KeyPedestrianClass BClass DClass BGrated
SizeLengthWidthHeightWeightConnectionLoad classOrder no.Quote
2,700 L / DN1102,080 mm1,565 mm2,010 mm120 kgDN110-370550
3,750 L / DN1102,280 mm1,755 mm2,200 mm150 kgDN110-370551
4,800 L / DN1102,280 mm1,985 mm2,430 mm185 kgDN110-370552
6,500 L / DN1102,390 mm2,190 mm2,710 mm220 kgDN110-370553
4,800 L / DN1602,280 mm1,985 mm2,430 mm185 kgDN160-370554
6,500 L / DN1602,390 mm2,190 mm2,710 mm220 kgDN160-370555

Technical data source: https://www.graf.info/de/regenwasserbehandlung/m153-sedimentationsanlagen/erdtank-carat-m-153-sedimentationstank.html

Full specification

Product details

Key construction, installation and performance notes for Carat M 153 Sedimentation Tank.

Overview

Carat underground tank configured as a DWA-M 153 sedimentation system. Optional external coarse filter with calmed inlet pot and outlet baffle. Volumes 2,700–6,500 L with DN110 / DN160. Pedestrian through truck covers. Diamant M 153 not offered. Source: graf.info Carat M 153.

Specification focus

Technical documents

Brochures, drawings, manuals & BIM

Download brochure

Rainwater management brochure

PDF product information for specification and install planning.

Download PDF

Brochures & catalogues

(1)
Rainwater management brochureBrochure PDF

Drawings

(18)
Carat 2700L MaxiPDF | DWG-222.pdf | Rev 1 | 17/05/2016Carat 2700L MiniPDF | DWG-227.pdf | Rev 1 | 17/05/2016Carat 3750L MaxiPDF | DWG-231.pdf | Rev 1 | 17/05/2016Carat 3750L MiniPDF | DWG-235.pdf | Rev 1 | 17/05/2016Carat 4800L MaxiPDF | DWG-239.pdf | Rev 1 | 17/05/2016Carat 4800L MiniPDF | DWG-243.pdf | Rev 1 | 17/05/2016Carat 6500L MaxiPDF | DWG-246.pdf | Rev 1 | 17/05/2016Carat 6500L MiniPDF | DWG-249.pdf | Rev 1 | 17/05/2016CARAT 2700 L TD MiniPDF | DWG-252.pdf | Rev 1 | 17/05/2016CARAT 3750 L TD MiniPDF | DWG-254.pdf | Rev 1 | 17/05/2016CARAT 4800 L TD MiniPDF | DWG-256.pdf | Rev 1 | 17/05/2016CARAT 6500 L TD MiniPDF | DWG-258.pdf | Rev 1 | 17/05/2016Carat Lifting Pump station dual freestanding (All Sizes)PDF | DWG-224.pdf | Rev 1 | 25/03/2020Carat Lifting Pump station single freestanding (All Sizes)PDF | DWG-220.pdf | Rev 1 | 25/03/2020GRAF Carat 2700L Grundwassereinbau ENPDF | DWG-259.pdf | Rev 1 | 10/07/2018GRAF Carat 2700L Grundwassereinbau EN B RingPDF | DWG-261.pdf | Rev 1 | 31/07/2018GRAF Carat 3750L Grundwassereinbau ENPDF | DWG-263.pdf | Rev 1 | 1/08/2018GRAF Carat 3750L Grundwassereinbau EN B RingPDF | DWG-265.pdf | Rev 1 | 31/07/2018

Technical manuals

(5)
Rainwater Storage Tank, Carat RS (Installation and Maintenance)PDF | MNL-020.pdf | Rev 2 | 29/05/2019Setup and Operation Instructions GRAF Pump StationsPDF | MNL-098.pdf | Rev 1 | 22/07/2024Carat/Platin XXL firefighting water tank / access ladderPDF | MNL-060.pdf | Rev 1 | 13/11/2019Instructions for Installation of E Pro Commercial Multiple Tank Setting up Kit in Carat TankPDF | MNL-057.pdf | Rev 1 | 15/08/2018Assembly and Installation Instructions Carat XXLPDF | MNL-096.pdf | Rev 2 | 14/10/2024

BIM / Revit guidance

(1)
BIM/Revit handling guide - CaratBIM guidance PDF

Complete the system

Recommended products and accessories

Related products are matched from the same family, application and accessory groups so customers can build a complete quote basket.

Common accessories

EcoFlow Control3 sizes

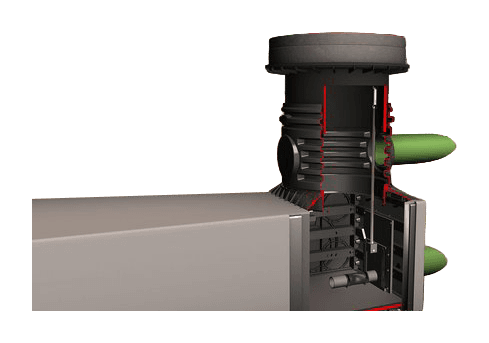

EcoFlow Control

GRAF · ECOFLOW-CONTROL

View specs

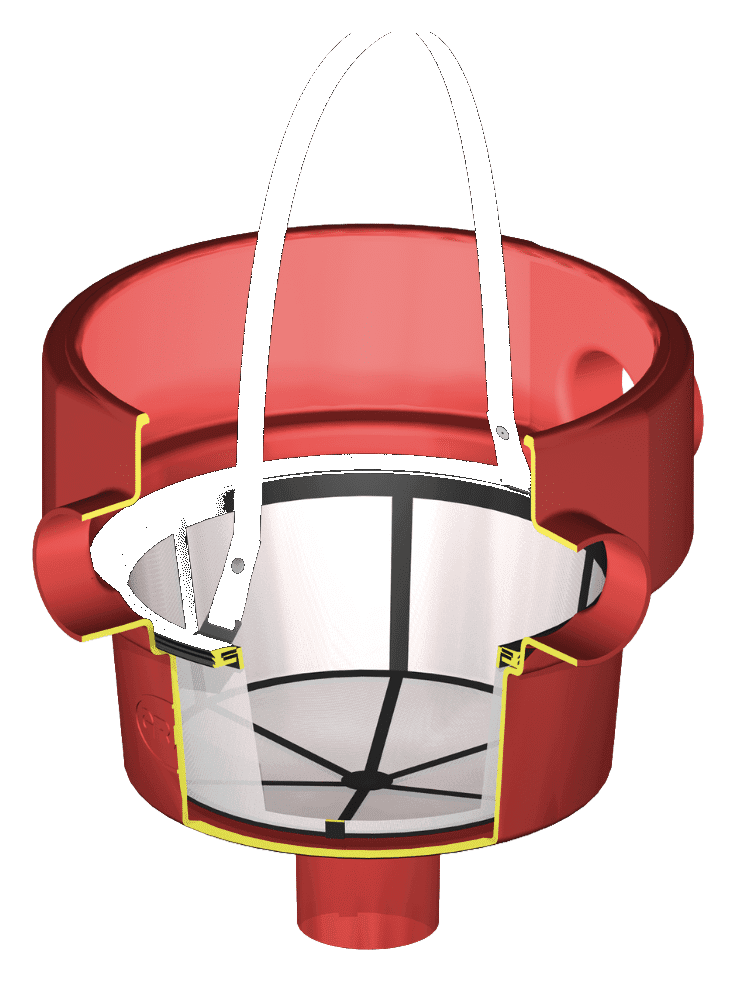

Carat Basket Filter

Carat Basket Filter

GRAF · 342002

View specs
Carat Optimax Filter Package

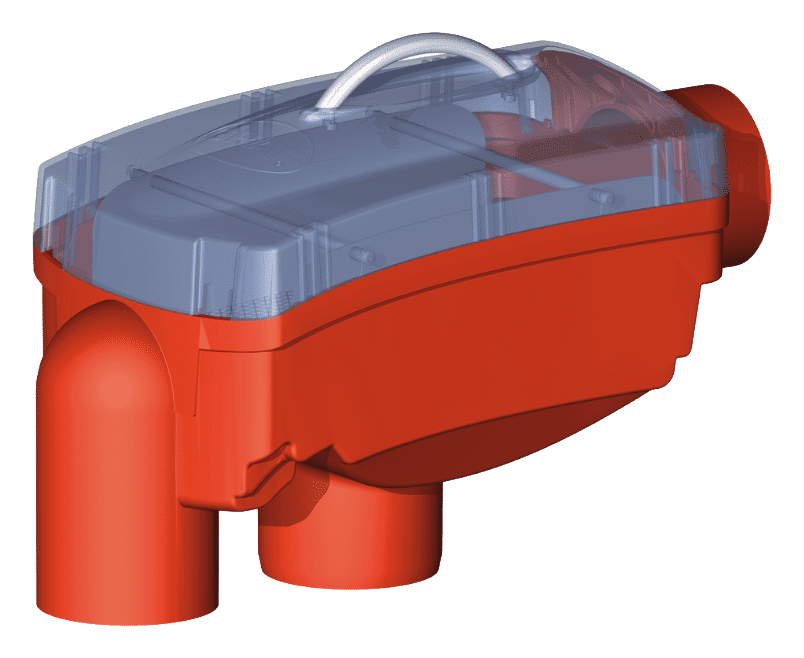

Carat Optimax Filter Package

GRAF · 342005

View specs
Carat Pump Station Tank24 sizes

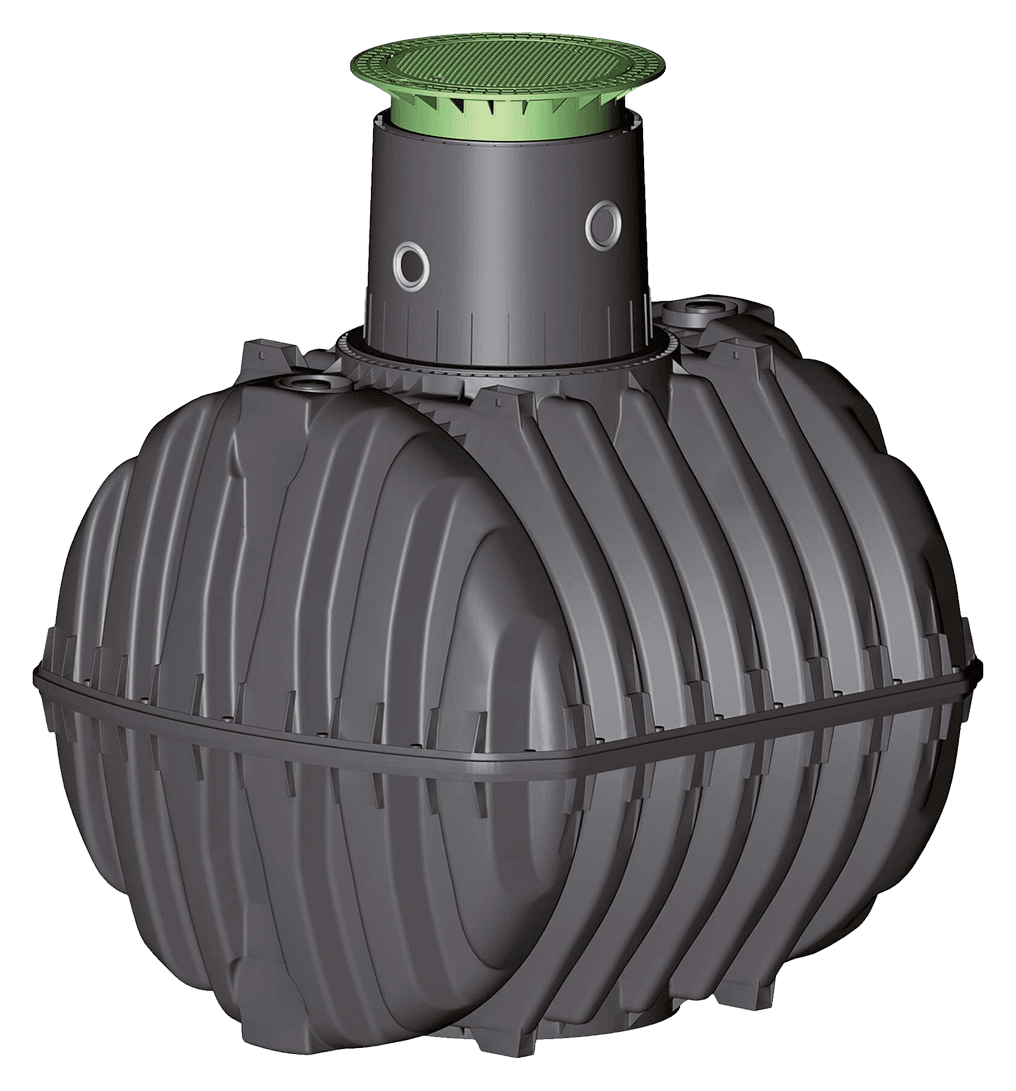

Carat Pump Station Tank

GRAF · CARAT-PUMP-STN

View specs

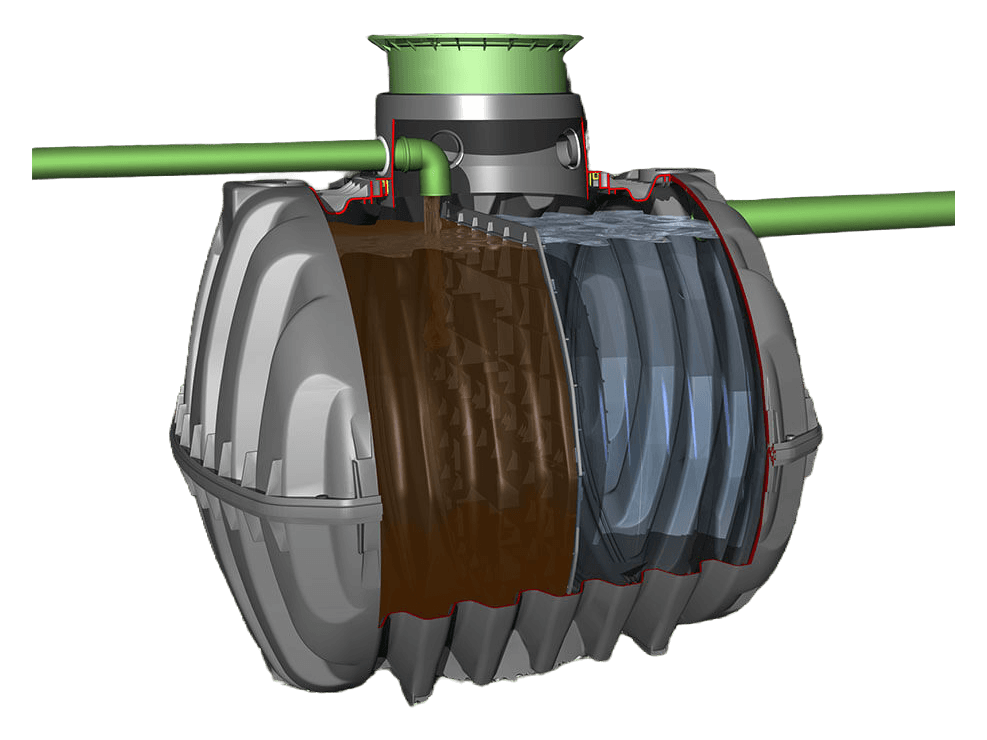

Carat Septic / Sewer Holding Tank24 sizes

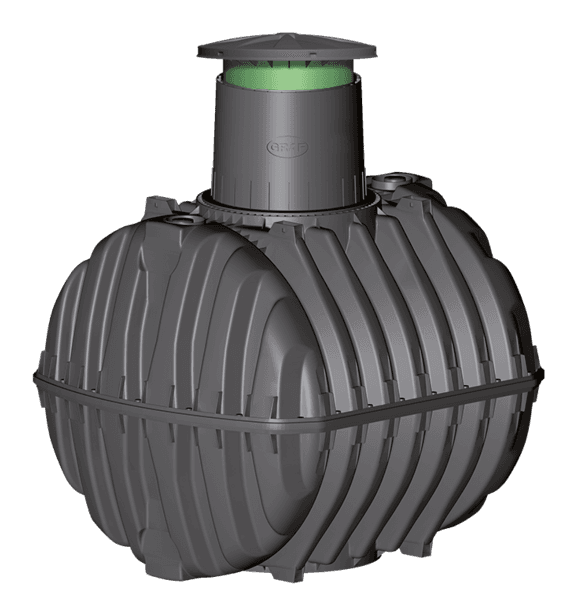

Carat Septic / Sewer Holding Tank
