EcoPrimo Batch Sedimentation System

Request EcoPrimo first-flush sedimentation sizing EcoPrimo treats first-flush runoff (~first 4–5 mm) from traffic and industrial areas, when pollutant concentrations are highest. Flow enters an EcoDiviso distribution shaft, which sends the first flush to the Carat / Car

Brand

GRAF

Range

Stormwater

Sizes

Size

Selected SKU

475005

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltration

Technical sizing

Size matrix & SKUs

13 technical rows - select above or quote directly

Available loading / cover classes

PedestrianClass B / SLW 40Class D / SLW 60

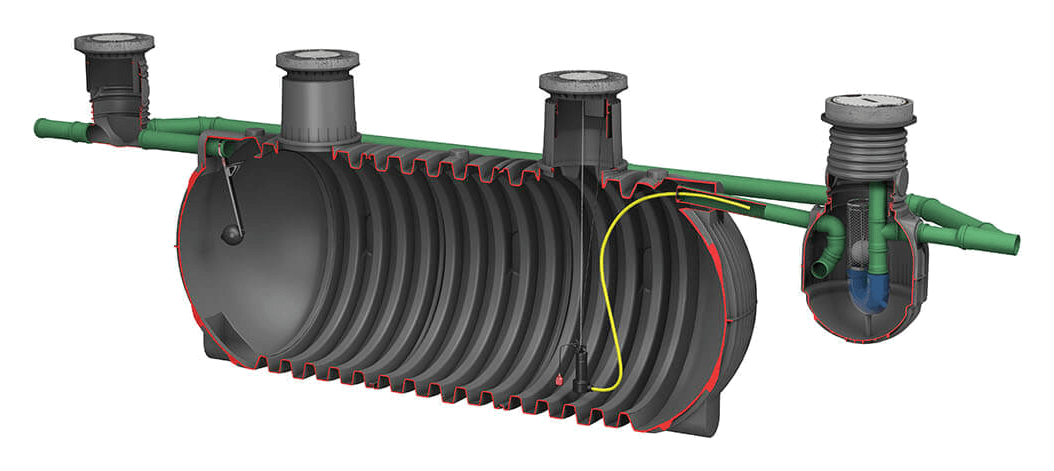

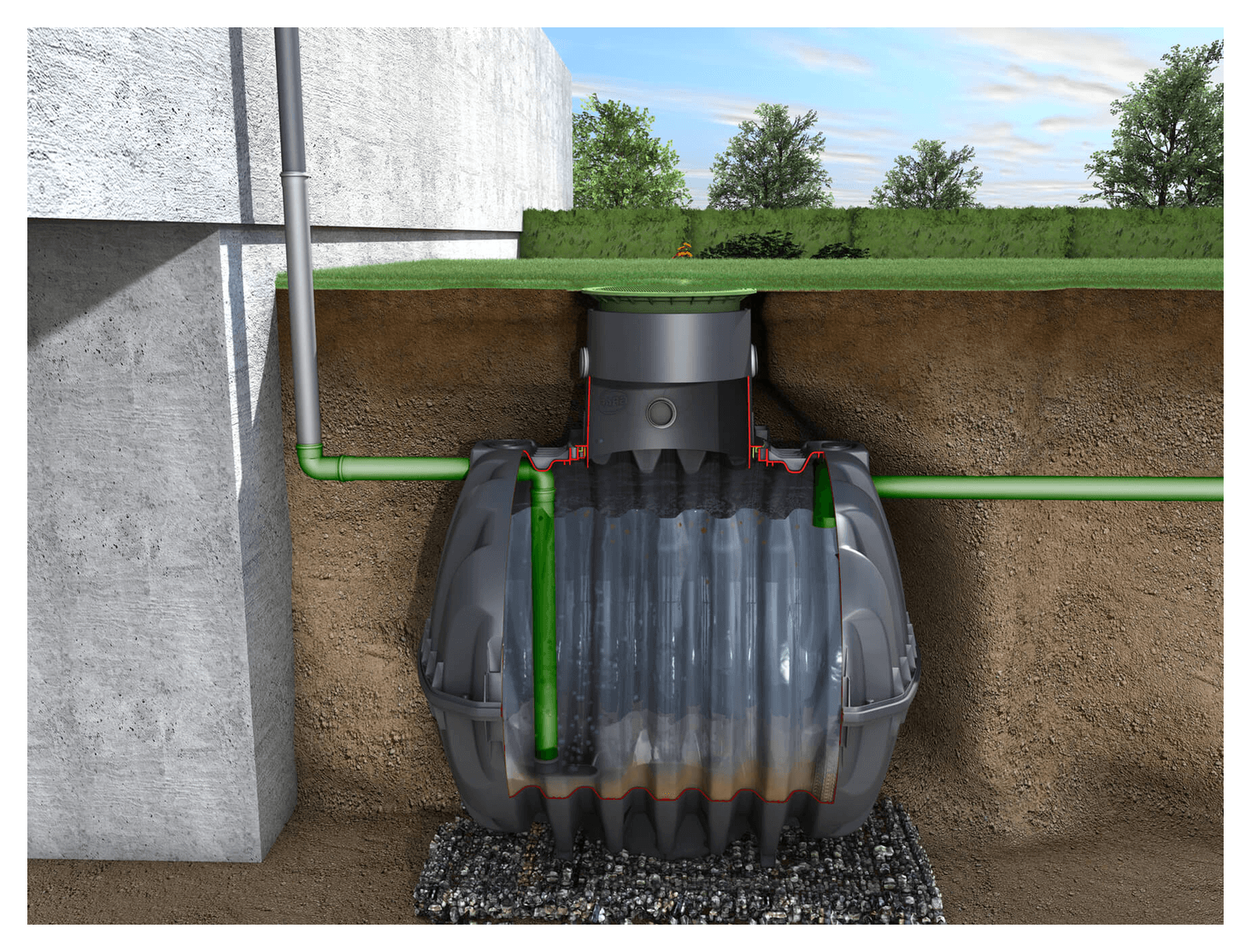

System typically includes EcoDiviso + Carat sedimentation tank + pump/control/rain sensor

Pump: ~0.55 kW · feed height 7.4 m · max delivery ~1,800 l/h · LF store 300 L

Carat · 4,800 L: NS 16.3 l/s · art. 475005

Carat · 6,500 L: NS 22.1 l/s · art. 475006

Carat XL · 8,500 L: NS 28.9 l/s · art. 475010

Carat XL · 10,000 L: NS 34.0 l/s · art. 475011

Carat XL · 13,000 L: NS 44.2 l/s · art. 475012

Carat XXL · 16,000 L: NS 54.4 l/s · art. 475020

Carat XXL · 22,000 L: NS 74.8 l/s · art. 475021

Carat XXL · 26,000 L: NS 88.4 l/s · art. 475022

Carat XXL · 32,000 L: NS 108.8 l/s · art. 475023

Carat XXL · 36,000 L: NS 122.4 l/s · art. 475024

Carat XXL · 42,000 L: NS 142.8 l/s · art. 475025

Carat XXL · 46,000 L: NS 156.4 l/s · art. 475026

Carat XXL · 52,000 L: NS 176.8 l/s · art. 475027

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Load class	Order no.
Carat · 4,800 L	2,280 mm	1,985 mm	2,430 mm	330 kg	-	475005
Carat · 6,500 L	2,390 mm	2,190 mm	2,710 mm	365 kg	-	475006
Carat XL · 8,500 L	3,500 mm	2,040 mm	2,695 mm	535 kg	-	475010
Carat XL · 10,000 L	3,520 mm	2,240 mm	2,895 mm	610 kg	-	475011
Carat XL · 13,000 L	4,000 mm	2,420 mm	2,470 mm	755 kg	-	475012
Carat XXL · 16,000 L	4,590 mm	2,500 mm	3,160 mm	930 kg	-	475020
Carat XXL · 22,000 L	6,230 mm	2,500 mm	3,160 mm	1,180 kg	-	475021
Carat XXL · 26,000 L	7,200 mm	2,500 mm	3,160 mm	1,280 kg	-	475022
Carat XXL · 32,000 L	8,555 mm	2,500 mm	3,160 mm	1,530 kg	-	475023
Carat XXL · 36,000 L	9,525 mm	2,500 mm	3,160 mm	1,635 kg	-	475024
Carat XXL · 42,000 L	10,880 mm	2,500 mm	3,160 mm	1,880 kg	-	475025
Carat XXL · 46,000 L	11,850 mm	2,500 mm	3,160 mm	1,980 kg	-	475026
Carat XXL · 52,000 L	13,205 mm	2,500 mm	3,160 mm	2,230 kg	-	475027

Technical data source: https://www.graf.info/en/products/rainwater-treatment/ecoprimo-batch-sedimentation-system/ecoprimo-carat.html

Full specification

Product details

Key construction, installation and performance notes for EcoPrimo Batch Sedimentation System.

Overview

EcoPrimo treats first-flush runoff (~first 4–5 mm) from traffic and industrial areas, when pollutant concentrations are highest. Flow enters an EcoDiviso distribution shaft, which sends the first flush to the Carat / Carat XL / Carat XXL sedimentation tank with pump, control and rain sensor; later cleaner runoff can bypass. Platforms: Carat 4,800–6,500 L; Carat XL 8,500–13,000 L; Carat XXL 16,000–52,000 L. Source: graf.info EcoPrimo Carat family.
