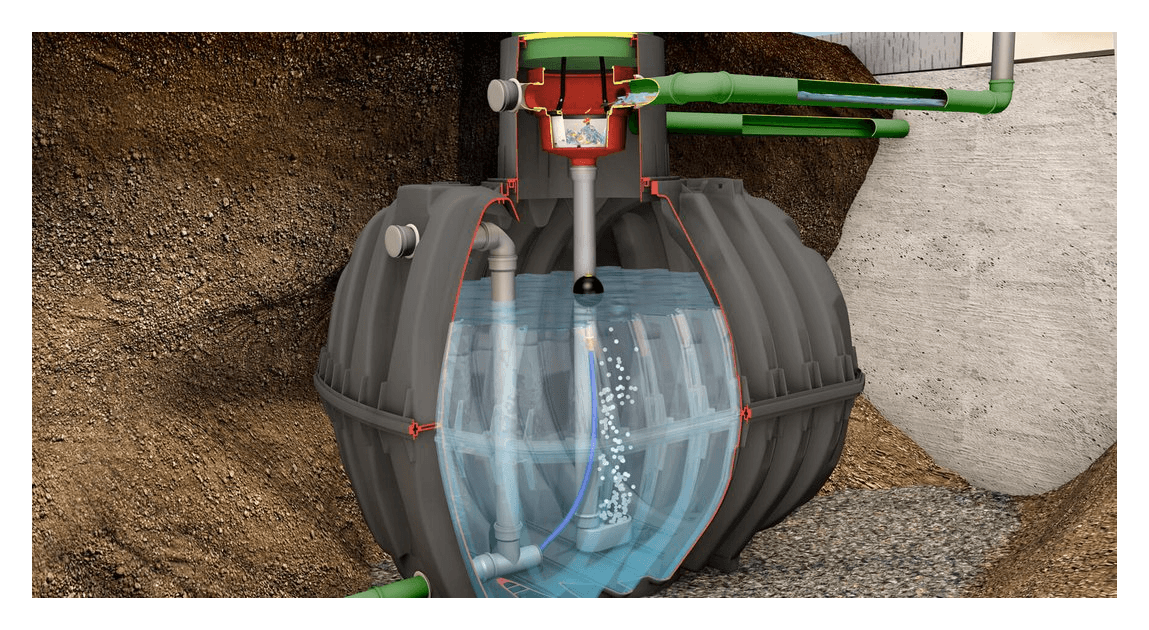

Carat Stormwater Retention Tank

Request retention / reuse system design support Strong, robust and versatile underground tank for stormwater management applications. Available in 2,700, 3,750, 4,800 and 6,500L. Stackable design for easy transport and delivery Two half-shell design enables single-per

Brand

GRAF

Range

Stormwater

Sizes

Lid types

Size

Lid / load class

Selected SKU

10.0005-R

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltration

Key features

Stackable design for easy transport and delivery

Two half-shell design enables single-person installation

Suitable for vehicle loading with cast iron lid

Groundwater stable up to 1,800mm earth covering

Compatible with all Carat accessories and filter packages

Technical sizing

Size matrix & SKUs

24 technical rows - select above or quote directly

Available loading / cover classes

Pedestrian coverClass B vehicle coverClass D truck lidGrated pedestrianGrated Class BGrated Class D

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Lid / variant	Load class	Order no.
2,700 L	2,080 mm	1,565 mm	2,010 mm	120 kg	Pedestrian cover	Pedestrian	372024
2,700 L	2,080 mm	1,565 mm	2,010 mm	120 kg	Class B vehicle cover	Class B	372024
2,700 L	2,080 mm	1,565 mm	2,010 mm	120 kg	Class D truck lid	Class D	372024
2,700 L	2,080 mm	1,565 mm	2,010 mm	120 kg	Grated pedestrian	PedestrianGrated	372024
2,700 L	2,080 mm	1,565 mm	2,010 mm	120 kg	Grated Class B	Class BGrated	372024
2,700 L	2,080 mm	1,565 mm	2,010 mm	120 kg	Grated Class D	Class DGrated	372024
3,750 L	2,280 mm	1,755 mm	2,200 mm	150 kg	Pedestrian cover	Pedestrian	372025
3,750 L	2,280 mm	1,755 mm	2,200 mm	150 kg	Class B vehicle cover	Class B	372025
3,750 L	2,280 mm	1,755 mm	2,200 mm	150 kg	Class D truck lid	Class D	372025
3,750 L	2,280 mm	1,755 mm	2,200 mm	150 kg	Grated pedestrian	PedestrianGrated	372025
3,750 L	2,280 mm	1,755 mm	2,200 mm	150 kg	Grated Class B	Class BGrated	372025
3,750 L	2,280 mm	1,755 mm	2,200 mm	150 kg	Grated Class D	Class DGrated	372025
4,800 L	2,280 mm	1,985 mm	2,430 mm	185 kg	Pedestrian cover	Pedestrian	372026
4,800 L	2,280 mm	1,985 mm	2,430 mm	185 kg	Class B vehicle cover	Class B	372026
4,800 L	2,280 mm	1,985 mm	2,430 mm	185 kg	Class D truck lid	Class D	372026
4,800 L	2,280 mm	1,985 mm	2,430 mm	185 kg	Grated pedestrian	PedestrianGrated	372026
4,800 L	2,280 mm	1,985 mm	2,430 mm	185 kg	Grated Class B	Class BGrated	372026
4,800 L	2,280 mm	1,985 mm	2,430 mm	185 kg	Grated Class D	Class DGrated	372026
6,500 L	2,390 mm	2,190 mm	2,710 mm	220 kg	Pedestrian cover	Pedestrian	372027
6,500 L	2,390 mm	2,190 mm	2,710 mm	220 kg	Class B vehicle cover	Class B	372027
6,500 L	2,390 mm	2,190 mm	2,710 mm	220 kg	Class D truck lid	Class D	372027
6,500 L	2,390 mm	2,190 mm	2,710 mm	220 kg	Grated pedestrian	PedestrianGrated	372027
6,500 L	2,390 mm	2,190 mm	2,710 mm	220 kg	Grated Class B	Class BGrated	372027
6,500 L	2,390 mm	2,190 mm	2,710 mm	220 kg	Grated Class D	Class DGrated	372027
