Detail 01

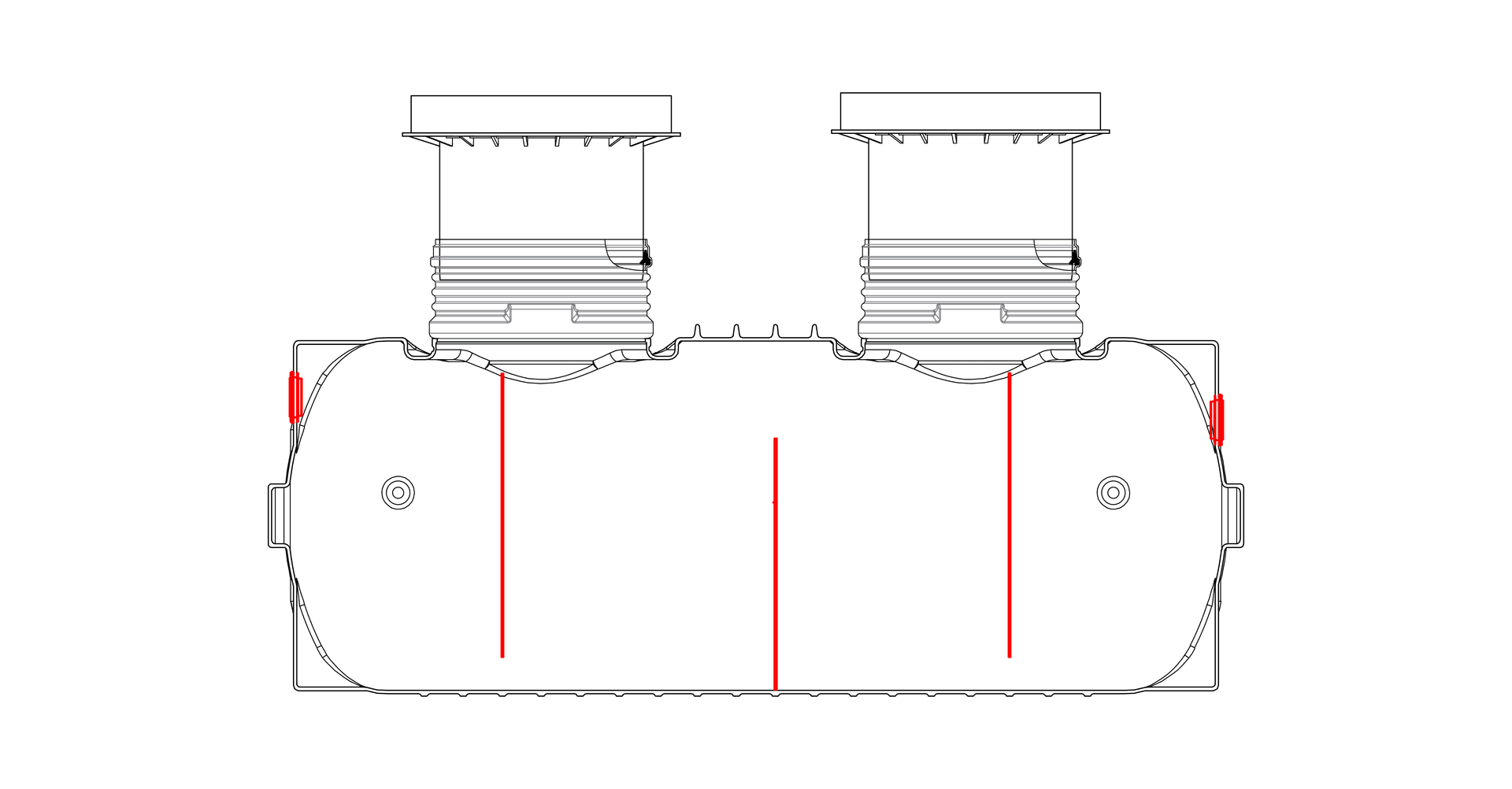

GRAF’s Acid Neutralising Tank
Includes three baffles. For buffering the pH prior to discharge, marble chips may be specified to meet the acceptance criteria of acid and alkaline trade waste.
GRAF
SC Acid Neutralisation Tank
Neutralises corrosive acid and alkaline trade waste before sewer discharge. GRAF’s Acid Neutralising Tank
Brand
GRAF
Range
Trade
Sizes
6
Size
Selected SKU
SC-ACID-2000
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
Certified qualityISO 9001 · AS/NZS standards
Australian madeRotomoulded in Western Australia
15-year warrantyOn selected tank ranges
Recycled plasticsSustainable manufacturing
Typical applications
Specification-ledQuote for sizing
Key features
AS/NZS: 9001
European Standard EN 1433
AS/NZS: 1546.1
AS/NZS: 4766
Products and management systems independently verified & certified
15-year warranty
Technical sizing
Size matrix & SKUs
6 technical rows - select above or quote directly
| Size | Length | Width | Height | Weight | Connection | SKU | Quote |
|---|---|---|---|---|---|---|---|
| 2,000 L | 3,000 mm | 1,180 mm | 1,100 mm | 190 kg | Ø 305 mm | SC-ACID-2000 | |
| 3,000 L | 3,000 mm | 1,415 mm | 1,340 mm | 235 kg | Ø 305 mm | SC-ACID-3000 | |
| 4,000 L | 3,000 mm | 1,565 mm | 1,500 mm | 285 kg | Ø 290 mm | SC-ACID-4000 | |
| 5,000 L | 3,000 mm | 1,735 mm | 1,660 mm | 355 kg | Ø 290 mm | SC-ACID-5000 | |
| 8,000 L | 3,490 mm | 2,240 mm | 2,290 mm | 495 kg | - | SC-ACID-8000 | |
| 10,000 L | 3,490 mm | 2,240 mm | 2,290 mm | 495 kg | Ø 290 mm | SC-ACID-10000 |
Technical data source: GRAF Australia SC Acid Neutralisation Tank sizing table
Full specification
Product details
Key construction, installation and performance notes for SC Acid Neutralisation Tank.
Overview
Regulatory codes mandate the use of Acid Neutralisation Tanks to neutralise corrosive wastes, preventing damage to waterways, drains, sewers, soil and waste pipes. Any discharge of corrosive liquids, spent acids, or harmful chemicals into plumbing systems is strictly prohibited without prior neutralisation or treatment.
Specification focus
GRAF’s Acid Neutralising Tank
Detailed guidance
Super Compact Tank
Detailed guidance
Approvals
6 verified points
Detail 02
Super Compact Tank
Developed with GRAF’s Super Compact Tank. The SC tank is named for its compactness; engineered to streamline installation and optimise functionality. With a focus on efficiency, this tank boasts an ideal length-to-width ratio, ensuring ample space between inlet and outlet without sacrificing its compact footprint.
Detail 03
Approvals
- AS/NZS: 9001
- European Standard EN 1433
- AS/NZS: 1546.1
- AS/NZS: 4766
- Products and management systems independently verified & certified
- 15-year warranty
Technical documents
Brochures, drawings, manuals & BIM
Featured technical PDF
Averaging Dilution Pits a.k.a Balancing tanks O&M
Official manufacturer document for specification and installation · MNL-089.pdf | Rev 4 | 3/07/2026.
Drawings
(18)Averaging Dilution Pits a.k.a Balancing tanks SC rangePDF | DWG-377.pdf | Rev 3 | 13/03/2026Ground slab for separator tanks saphir 600, 900, and 1200 LPDF | DWG-201.pdf | Rev 1 | 29/03/2017Averaging Dilution Pit a.k.a. Balancing Tank SC 10000PDF | DWG-383.pdf | Rev 3 | 13/03/2026Averaging Dilution Pit a.k.a. Balancing Tank SC 2000PDF | DWG-378.pdf | Rev 3 | 13/03/2026Averaging Dilution Pit a.k.a. Balancing Tank SC 3000PDF | DWG-379.pdf | Rev 3 | 13/03/2026Averaging Dilution Pit a.k.a. Balancing Tank SC 4000PDF | DWG-380.pdf | Rev 3 | 13/03/2026Averaging Dilution Pit a.k.a. Balancing Tank SC 5000PDF | DWG-381.pdf | Rev 3 | 13/03/2026Averaging Dilution Pit a.k.a. Balancing Tank SC 8000PDF | DWG-382.pdf | Rev 3 | 13/03/2026Neutralising Tank a.k.a. Passive Mixing Tank SC 10000PDF | DWG-390.pdf | Rev 3 | 13/03/2026Neutralising Tank a.k.a. Passive Mixing Tank SC 2000PDF | DWG-385.pdf | Rev 3 | 13/03/2026Neutralising Tank a.k.a. Passive Mixing Tank SC 3000PDF | DWG-386.pdf | Rev 3 | 13/03/2026Neutralising Tank a.k.a. Passive Mixing Tank SC 4000PDF | DWG-387.pdf | Rev 3 | 13/03/2026Neutralising Tank a.k.a. Passive Mixing Tank SC 5000PDF | DWG-388.pdf | Rev 3 | 13/03/2026Neutralising Tank a.k.a. Passive Mixing Tank SC rangePDF | DWG-384.pdf | Rev 3 | 13/03/2026Neutralising Tank a.k.a.Passive Mixing Tank SC 8000PDF | DWG-389.pdf | Rev 3 | 13/03/2026Settling Tank SC 10000PDF | DWG-404.pdf | Rev 3 | 13/03/2026Settling Tank SC 2000PDF | DWG-399.pdf | Rev 3 | 13/03/2026Settling Tank SC 2000PDF | DWG-400.pdf | Rev 3 | 13/03/2026
Technical manuals
(8)Averaging Dilution Pits a.k.a Balancing tanks O&MPDF | MNL-089.pdf | Rev 4 | 3/07/2026Settling Tanks O&MPDF | MNL-092.pdf | Rev 4 | 3/07/2026Neutralising Tank O&MPDF | MNL-090.pdf | Rev 4 | 3/07/2026Assembly and Installation Instructions Trade Waste RangePDF | MNL-087.pdf | Rev 7 | 2/07/2026Cooling Pit O&MPDF | MNL-088.pdf | Rev 4 | 3/07/2026General Purpose Pit O&MPDF | MNL-094.pdf | Rev 4 | 3/07/2026Lint Arrestor O&MPDF | MNL-093.pdf | Rev 4 | 3/07/2026Operation and Maintenance Instructions Oil Water Separators SC seriesPDF | MNL-091.pdf | Rev 2 | 12/06/2024
