SC Averaging Dilution Pit

Baffle-free dilution pit for mixed acid and alkaline trade waste streams. The Averaging Dilution Pit

Brand

GRAF

Range

Trade

Sizes

Size

Selected SKU

SC-ADP-2000

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Trade Waste View manufacturer source

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Specification-ledQuote for sizing

Key features

AS/NZS: 9001

European Standard EN 1433

AS/NZS: 1546.1

AS/NZS: 4766

Products and management systems independently verified & certified

15-year warranty

Technical sizing

Size matrix & SKUs

6 technical rows - select above or quote directly

Size	Length	Width	Height	Weight	Connection	SKU
2,000 L	3,000 mm	1,180 mm	1,100 mm	190 kg	Ø 305 mm	SC-ADP-2000
3,000 L	3,000 mm	1,415 mm	1,340 mm	235 kg	Ø 305 mm	SC-ADP-3000
4,000 L	3,000 mm	1,565 mm	1,500 mm	285 kg	Ø 290 mm	SC-ADP-4000
5,000 L	3,000 mm	1,735 mm	1,660 mm	355 kg	Ø 290 mm	SC-ADP-5000
8,000 L	3,490 mm	2,240 mm	2,290 mm	495 kg	Ø 290 mm	SC-ADP-8000
10,000 L	3,490 mm	2,240 mm	2,290 mm	495 kg	Ø 290 mm	SC-ADP-10000

Technical data source: GRAF Australia SC Averaging Dilution Pit sizing table

Full specification

Product details

Key construction, installation and performance notes for SC Averaging Dilution Pit.

Overview

Any discharge of corrosive liquids, spent acids, or harmful chemicals into plumbing systems is strictly prohibited without prior neutralisation or treatment. This measure ensures the prevention of noxious or toxic fumes and interference with sewage treatment processes, safeguarding both public health and environmental integrity.

Specification focus

The Averaging Dilution Pit

Detailed guidance

Super Compact Tank

Detailed guidance

Approvals

6 verified points

Detail 01

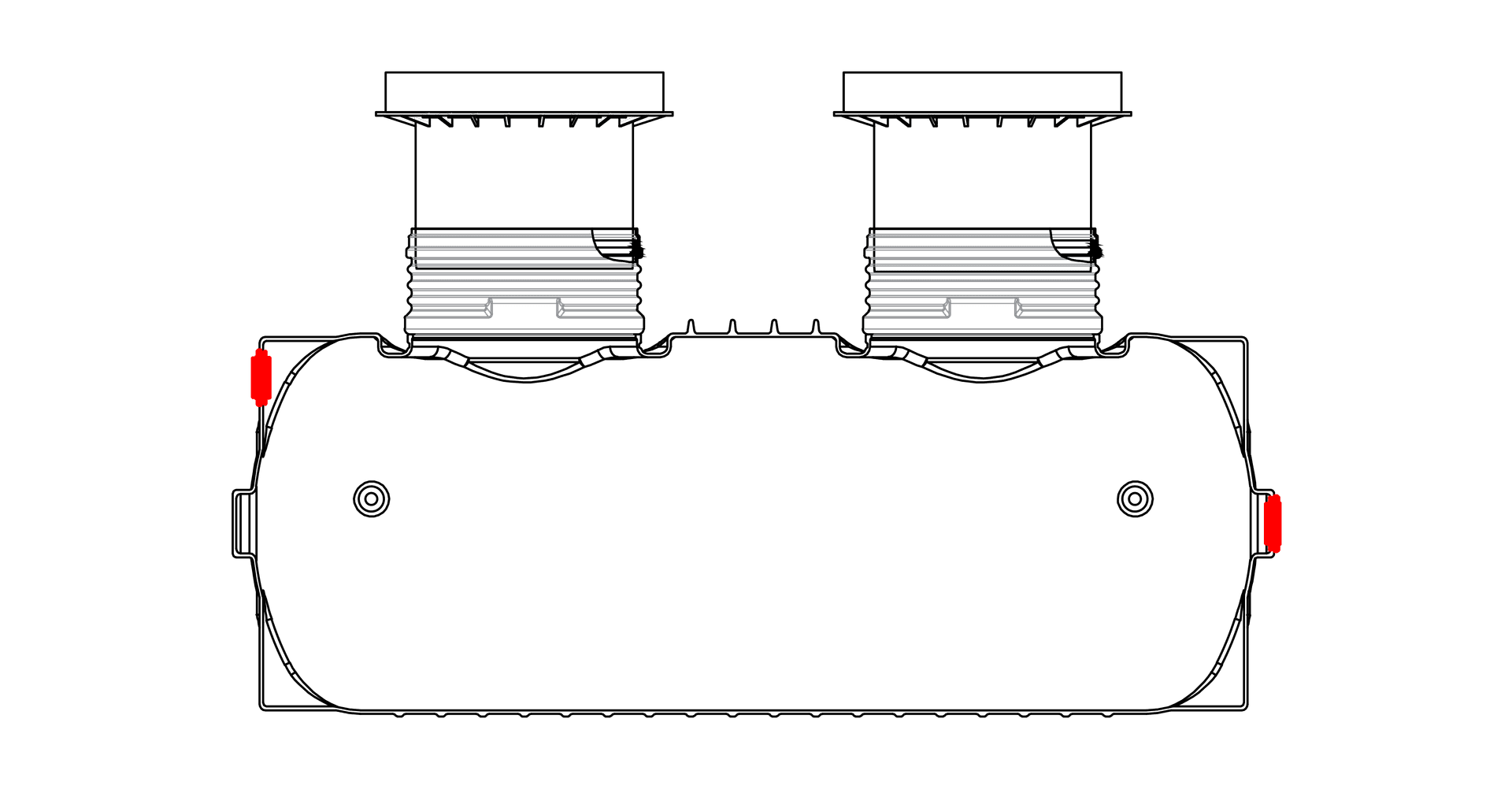

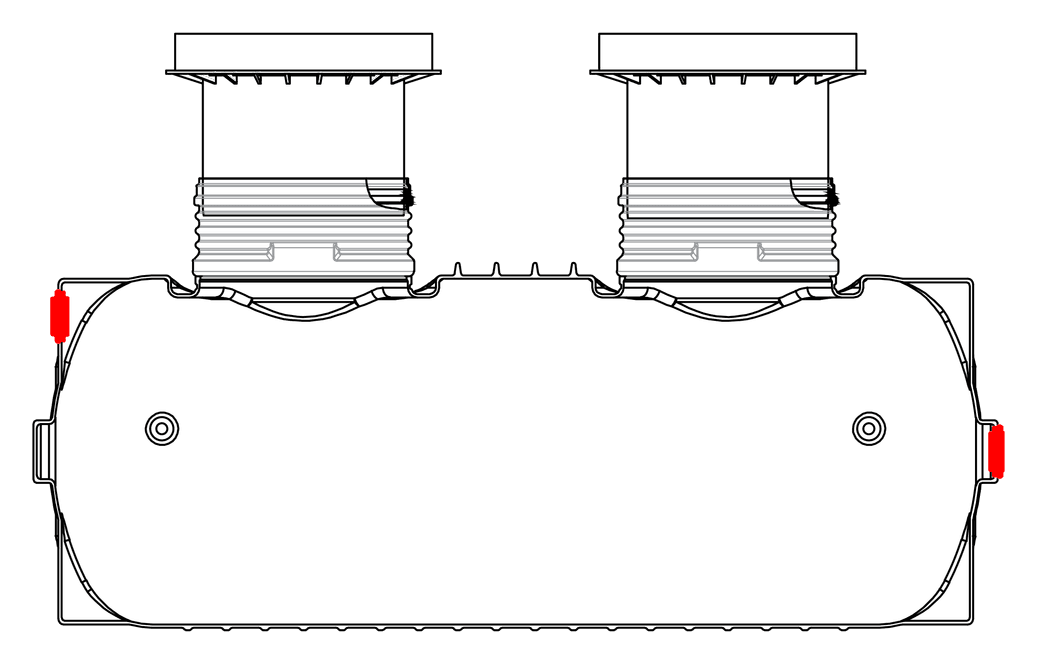

The Averaging Dilution Pit

Is a baffle-free tank with the outlet collection point from the middle of the tank. For applications where the trade waste includes acid and alkaline solutions that cancel each other out and may be treated by dosing in order to meet pH acceptance criteria for discharge.

Detail 02

Super Compact Tank

Developed with GRAF’s Super Compact Tank. The SC tank is named for its compactness; engineered to streamline installation and optimise functionality. With a focus on efficiency, this tank boasts an ideal length-to-width ratio, ensuring ample space between inlet and outlet without sacrificing its compact footprint.

Detail 03
