SC General Purpose Pit

Inspectable surge and double baffles for mixed density trade-waste contaminants. The General-Purpose Pit

Brand

GRAF

Range

Trade

Sizes

Size

Selected SKU

SC-GPP-2000

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Trade Waste View manufacturer source

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Specification-ledQuote for sizing

Key features

AS/NZS: 9001

European Standard EN 1433

AS/NZS: 1546.1

AS/NZS: 4766

Products and management systems independently verified & certified

15-year warranty

Technical sizing

Size matrix & SKUs

6 technical rows - select above or quote directly

Size	Length	Width	Height	Weight	Connection	SKU
2,000 L	3,000 mm	1,180 mm	1,100 mm	190 kg	Ø 305 mm	SC-GPP-2000
3,000 L	3,000 mm	1,415 mm	1,340 mm	235 kg	Ø 305 mm	SC-GPP-3000
4,000 L	3,000 mm	1,565 mm	1,500 mm	285 kg	Ø 290 mm	SC-GPP-4000
5,000 L	3,000 mm	1,735 mm	1,660 mm	355 kg	Ø 290 mm	SC-GPP-5000
8,000 L	3,490 mm	2,240 mm	2,290 mm	495 kg	Ø 290 mm	SC-GPP-8000
10,000 L	3,490 mm	2,240 mm	2,290 mm	495 kg	Ø 290 mm	SC-GPP-10000

Technical data source: GRAF Australia SC General Purpose Pit sizing table

Full specification

Product details

Key construction, installation and performance notes for SC General Purpose Pit.

Overview

The GRAF General Purpose Pit effectively removes contaminants, ensuring that discharged water meets stringent environmental standards. By preserving water resources, these tanks play a crucial role in minimising the ecological impact of wastewater discharge.

Specification focus

The General-Purpose Pit

Detailed guidance

Functionality

Detailed guidance

Super Compact Tank

Detailed guidance

Detail 01

The General-Purpose Pit

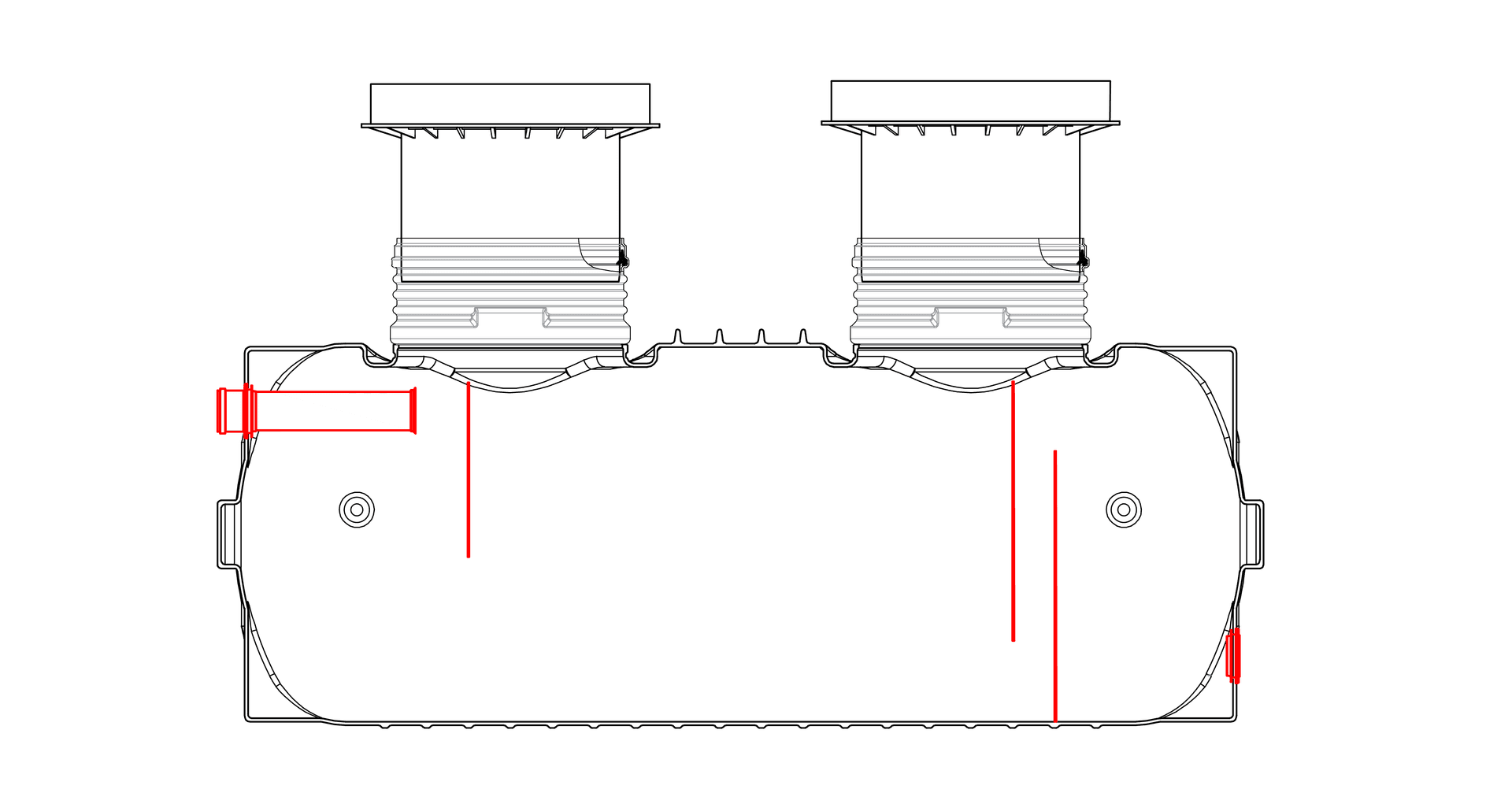

Includes an inspectable surge baffle and an inspectable double baffle to trap contaminants by their densities. It is used for trade waste that might contain non-preventable liquids and solids that will either settle or float in the tank.

Detail 02

Functionality

By allowing passive separation of solids and encouraging the settling process, these tanks remove solids and reduce the workload of subsequent treatment stages. This enhances overall treatment performance and supports consistent compliance with regulatory requirements.

Detail 03

Super Compact Tank

Developed with GRAF’s Super Compact Tank. The SC tank is named for its compactness; engineered to streamline installation and optimise functionality. With a focus on efficiency, this tank boasts an ideal length-to-width ratio, ensuring ample space between inlet and outlet without sacrificing its compact footprint.
