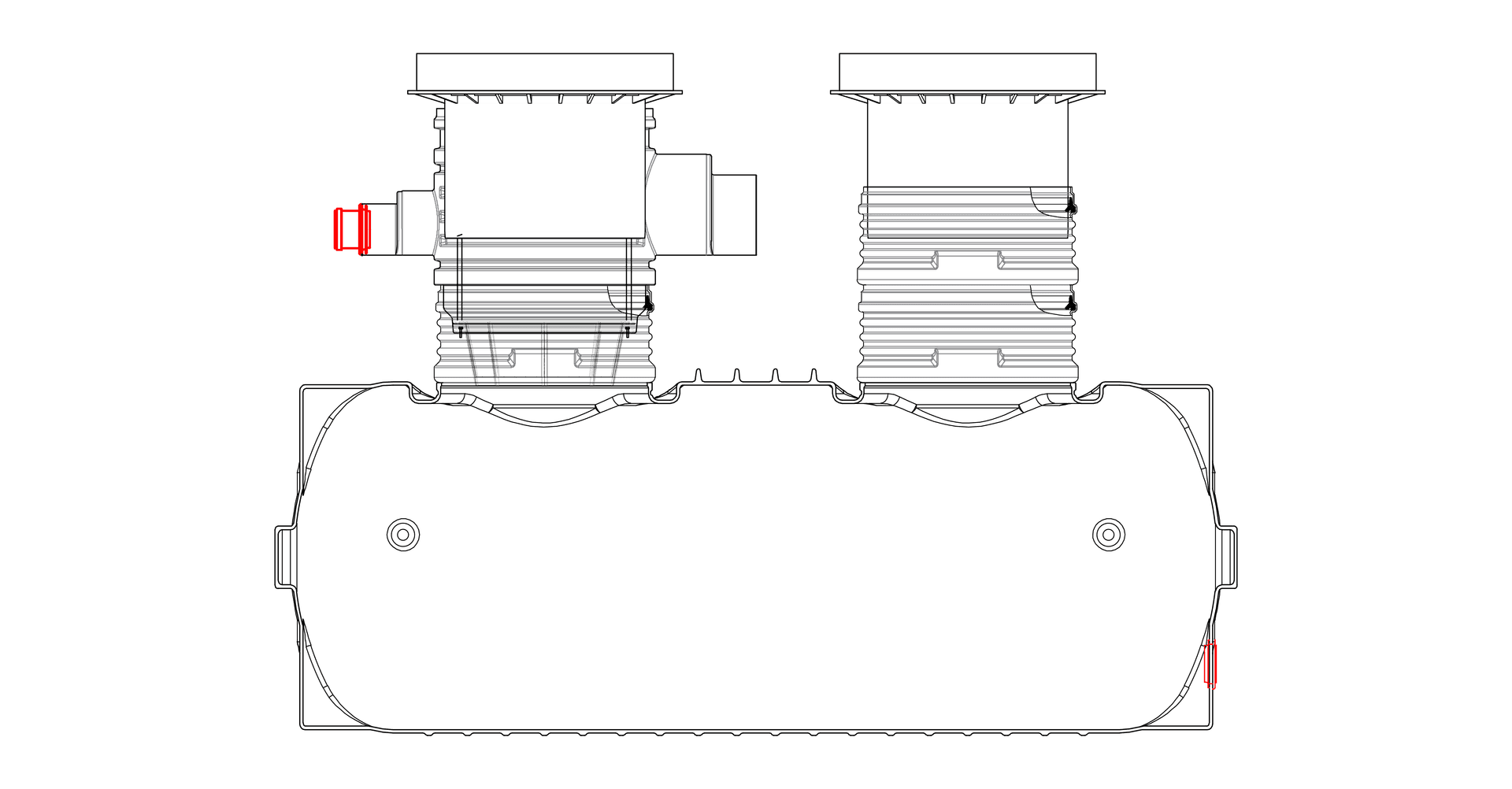

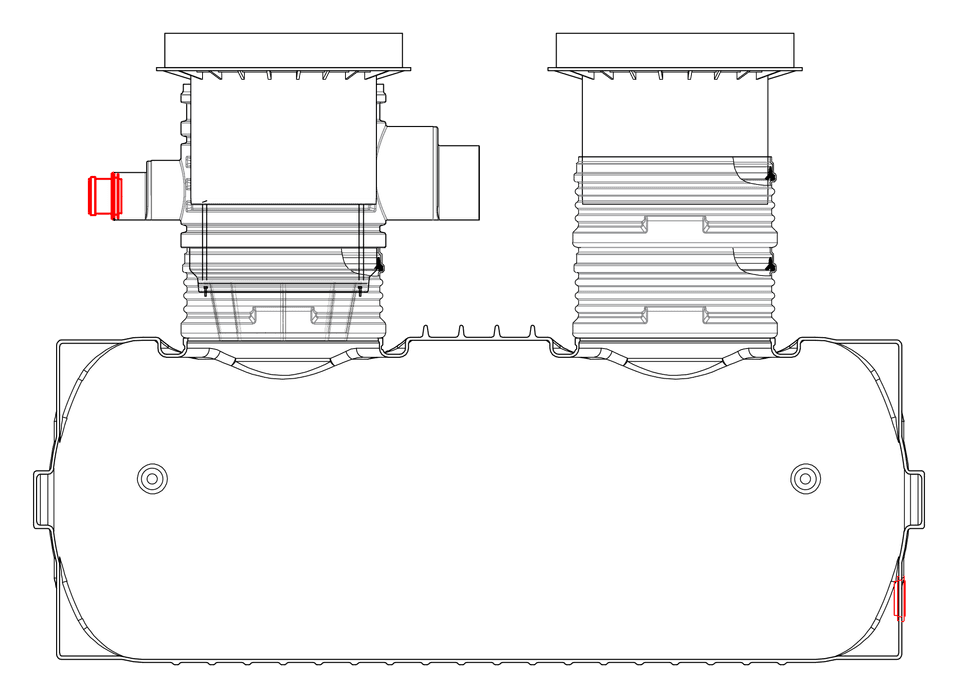

SC Lint Arrestor

Multi-stage lint and solids capture for commercial laundry trade waste. The Lint Arrestor

Brand

GRAF

Range

Trade

Sizes

Size

Selected SKU

SC-LINT-2000

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Trade Waste View manufacturer source

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Specification-ledQuote for sizing

Key features

AS/NZS: 9001

European Standard EN 1433

AS/NZS: 1546.1

AS/NZS: 4766

Products and management systems independently verified & certified

15-year warranty

Technical sizing

Size matrix & SKUs

6 technical rows - select above or quote directly

Size	Length	Width	Height	Weight	Connection	SKU
2,000 L	3,000 mm	1,180 mm	1,100 mm	190 kg	Ø 305 mm	SC-LINT-2000
3,000 L	3,000 mm	1,415 mm	1,340 mm	235 kg	Ø 305 mm	SC-LINT-3000
4,000 L	3,000 mm	1,565 mm	1,500 mm	285 kg	Ø 290 mm	SC-LINT-4000
5,000 L	3,000 mm	1,735 mm	1,660 mm	355 kg	Ø 290 mm	SC-LINT-5000
8,000 L	3,490 mm	2,240 mm	2,290 mm	495 kg	Ø 290 mm	SC-LINT-8000
10,000 L	3,490 mm	2,240 mm	2,290 mm	495 kg	Ø 290 mm	SC-LINT-10000

Technical data source: GRAF Australia SC Lint Arrestor sizing table

Full specification

Product details

Key construction, installation and performance notes for SC Lint Arrestor.

Overview

GRAF Lint Arrestor tanks employ a multi-stage filtration process to effectively remove various solids, including buttons, stones and lint, from wastewater streams.

Specification focus

The Lint Arrestor

Detailed guidance

Functionality

Detailed guidance

Super Compact Tank

Detailed guidance

Detail 01

The Lint Arrestor

Includes an easy-to-service stainless steel basket and its outlet collection point is from the bottom of the tank. It is sized to ensure temperature criteria are met and is commonly used when no lint screens are present in the collection pipework of the laundry; however, it may also be the preferred design for lint removal.

Detail 02

Functionality

A removable basket mesh filter in the first compartment captures larger debris through gravitational settling. An additional fixed screen is installed as a safeguard, ensuring the effluent is cleaned before discharge into the sewer system.

Detail 03

Super Compact Tank

Developed with GRAF’s Super Compact Tank. The SC tank is named for its compactness; engineered to streamline installation and optimise functionality. With a focus on efficiency, this tank boasts an ideal length-to-width ratio, ensuring ample space between inlet and outlet without sacrificing its compact footprint.
