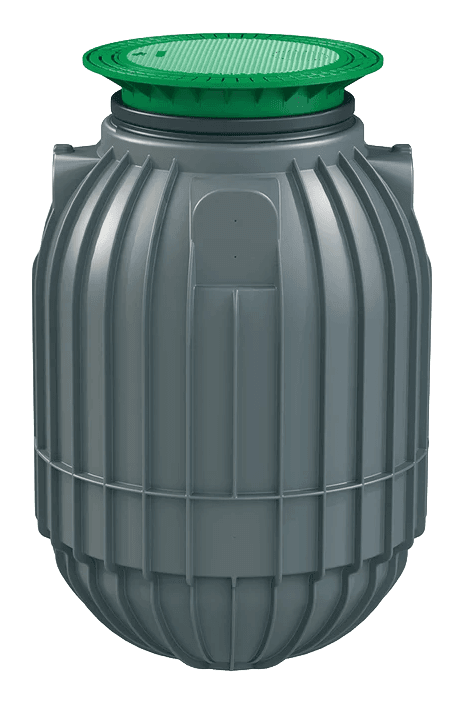

Sapphire Rainwater Holding Tank
Request rainwater tank sizing / upload plans Sapphire small underground rainwater holding tank.
Brand
GRAF
Range
Rainwater
Sizes
3
Lid types
6
Size
Lid / load class
Selected SKU
G70000
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
Typical applications
Technical sizing
Size matrix & SKUs
18 technical rows - select above or quote directly
Available loading / cover classes
Sapphire manual lists telescopic dome shaft options for pedestrian, vehicle and HGV loading.
| Size | Length | Width | Height | Weight | Lid / variant | Load class | Order no. | Quote |
|---|---|---|---|---|---|---|---|---|
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Pedestrian cover | Pedestrian | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Class B vehicle cover | Class B | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Class D truck lid | Class D | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Grated pedestrian | PedestrianGrated | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Grated Class B | Class BGrated | 12.1101 | |
| 600 L | 1,125 mm | 1,125 mm | 1,045 mm | 27 kg | Grated Class D | Class DGrated | 12.1101 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Pedestrian cover | Pedestrian | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Class B vehicle cover | Class B | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Class D truck lid | Class D | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Grated pedestrian | PedestrianGrated | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Grated Class B | Class BGrated | 12.1102 | |
| 900 L | 1,155 mm | 1,155 mm | 1,345 mm | 47 kg | Grated Class D | Class DGrated | 12.1102 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Pedestrian cover | Pedestrian | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Class B vehicle cover | Class B | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Class D truck lid | Class D | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Grated pedestrian | PedestrianGrated | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Grated Class B | Class BGrated | 12.1103 | |
| 1,200 L | 1,155 mm | 1,155 mm | 1,670 mm | 58 kg | Grated Class D | Class DGrated | 12.1103 |
Technical data source: MNL-018 Sapphire technical data table
