EcoBloc Inspect Smart Ultra Module

Submit civil plans for stormwater review System components & accessories:

Brand

GRAF

Range

Stormwater

SKU

402560

Selected SKU

402560

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltration

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Available loading / cover classes

SLW 60 / 60 tDeep installation up to 7.5 m

Earth covering / loading: 450-4250 mm cover.

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Load class	SKU	Quote
module	800 mm	800 mm	330 mm	12 kg	-	402560

Technical data source: GRAF EcoBloc Inspect Smart Ultra manufacturer data

Full specification

Product details

Key construction, installation and performance notes for EcoBloc Inspect Smart Ultra Module.

Overview

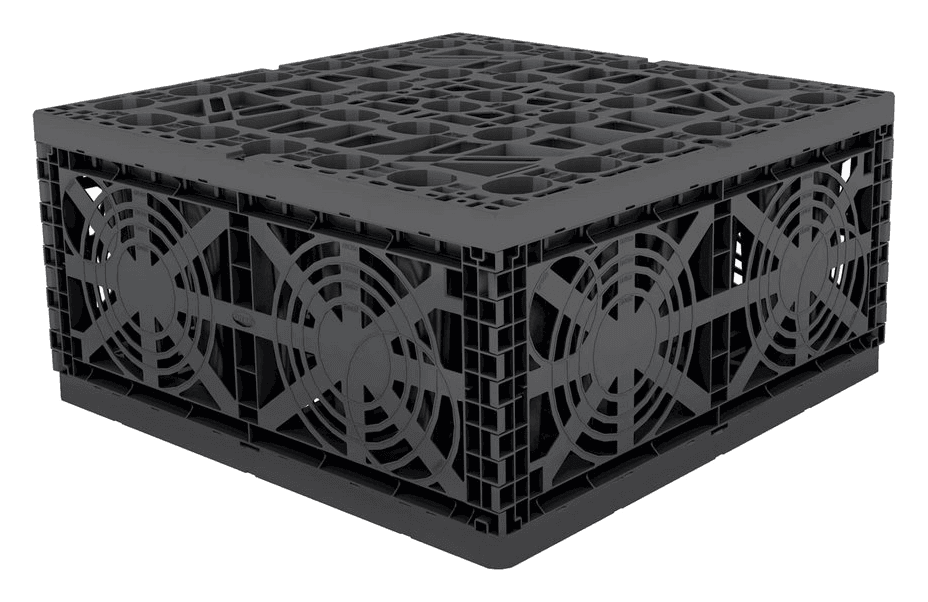

EcoBloc Inspect Smart Ultra Module - modular stormwater cell for capture, attenuation, infiltration or retention. Module 800 x 800 x 330 mm, 211 L gross storage (~96% void), 12 kg, made from 100% GRAF Upcyclen recycled plastic. High infiltration capacity; high-pressure flushable; deeper installation than standard Smart. Earth covering / loading: 450-4250 mm cover; up to 7.5 m installation depth; SLW 60 / 60 t.

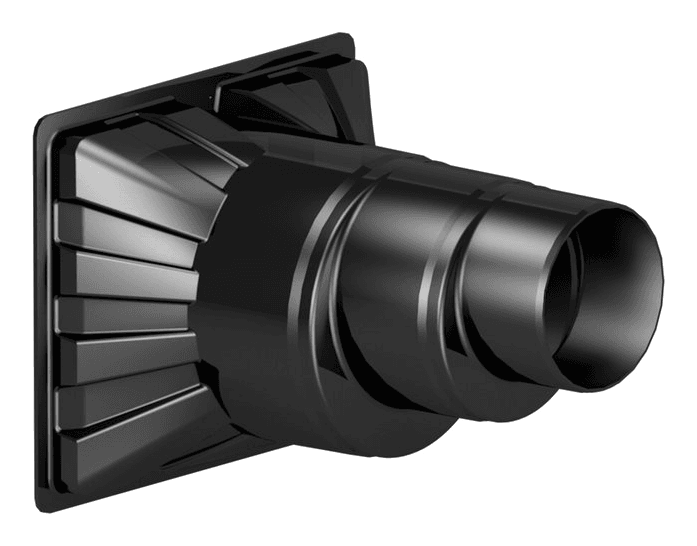

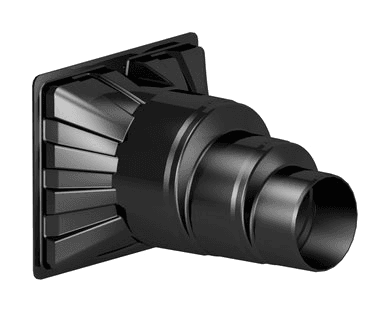

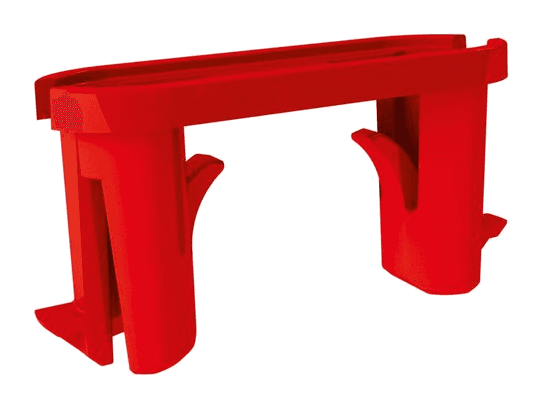

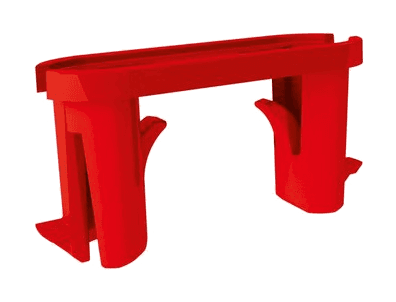

System components & accessories: EcoBloc Smart Base Plate (402501); EcoBloc Smart Ultra Base Plate (402561); EcoBloc Smart End Plate Set (2pcs) (402503); EcoBloc Connectors (10 pack) (402015); EcoBloc Connectors (25 pack) (402018); EcoBloc Connectors (50 pack) (402020); EcoBloc Connectors (200 pack) (402025); EcoBloc Smart Inspection Shaft (450151); EcoBloc Smart Inspection Shaft Cover (450160); EcoBloc Vario 800 Flex Type 1 (450050); EcoBloc Vario 800 Flex Type 2 (450051); EcoBloc Vario 800 Base / Cover Set (450052); EcoBloc Inlet Module 1m DN600 (330360); EcoBloc Pedestrian Telescopic Shaft (371011); EcoBloc Extension Piece 1m DN600 (371015); EcoBloc Adaptor Plate (402033); EcoBloc Adaptor Plate DN110/160 (402037); EcoBloc Adaptor for Concrete Pipe (up to DN525) (66.0208); EcoBloc Deaeration End DN100 (369017); EcoBloc Deaeration Cover DN150/200 (369046); Graf-Tex Filter Fleece 2.5 x 2.5m (231006); GRAF Geo-Tex Infiltration Geotextile (369047).
