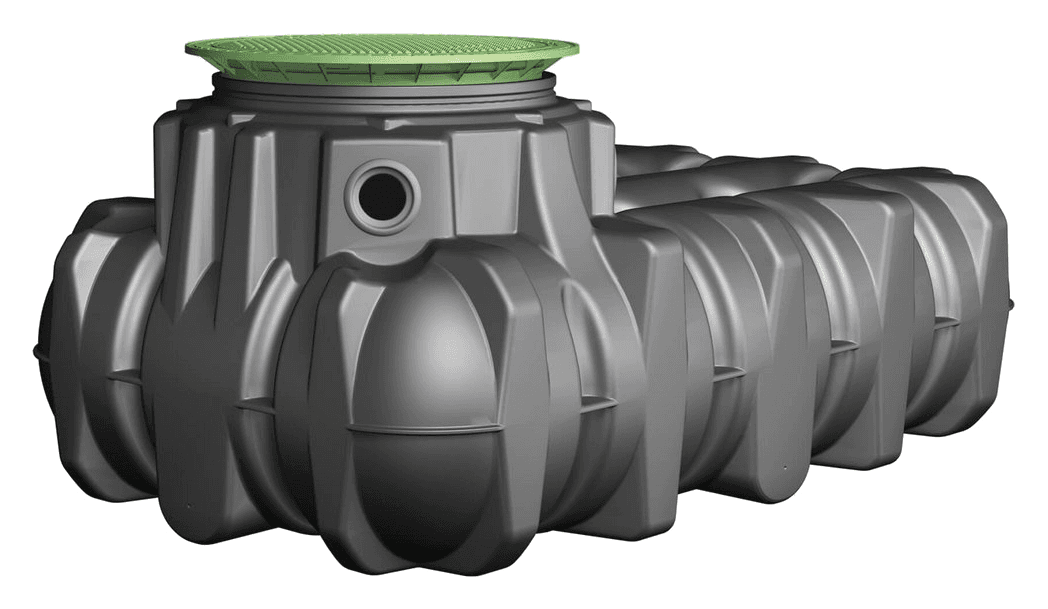

Platin Stormwater Detention Tank
Platin low-profile stormwater detention tank (controlled discharge).
Brand
GRAF
Range
Stormwater
Sizes
4
Lid types
6
Size
Lid / load class
Selected SKU
1909116
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
Typical applications
Technical sizing
Size matrix & SKUs
24 technical rows - select above or quote directly
Load class
| Size | Length | Width | Height | Weight | Lid / variant | Load class | Order no. | Quote |
|---|---|---|---|---|---|---|---|---|
| 1,500 L | 2,100 mm | 1,250 mm | 1,015 mm | 82 kg | Pedestrian cover | Pedestrian | 390000 | |
| 1,500 L | 2,100 mm | 1,250 mm | 1,015 mm | 82 kg | Class B vehicle cover | Class B | 390000 | |
| 1,500 L | 2,100 mm | 1,250 mm | 1,015 mm | 82 kg | Class D truck lid | Class D | 390000 | |
| 1,500 L | 2,100 mm | 1,250 mm | 1,015 mm | 82 kg | Grated pedestrian | PedestrianGrated | 390000 | |
| 1,500 L | 2,100 mm | 1,250 mm | 1,015 mm | 82 kg | Grated Class B | Class BGrated | 390000 | |
| 1,500 L | 2,100 mm | 1,250 mm | 1,015 mm | 82 kg | Grated Class D | Class DGrated | 390000 | |
| 3,000 L | 2,450 mm | 2,100 mm | 1,050 mm | 180 kg | Pedestrian cover | Pedestrian | 390001 | |
| 3,000 L | 2,450 mm | 2,100 mm | 1,050 mm | 180 kg | Class B vehicle cover | Class B | 390001 | |
| 3,000 L | 2,450 mm | 2,100 mm | 1,050 mm | 180 kg | Class D truck lid | Class D | 390001 | |
| 3,000 L | 2,450 mm | 2,100 mm | 1,050 mm | 180 kg | Grated pedestrian | PedestrianGrated | 390001 | |
| 3,000 L | 2,450 mm | 2,100 mm | 1,050 mm | 180 kg | Grated Class B | Class BGrated | 390001 | |
| 3,000 L | 2,450 mm | 2,100 mm | 1,050 mm | 180 kg | Grated Class D | Class DGrated | 390001 | |
| 5,000 L | 2,890 mm | 2,300 mm | 1,315 mm | 250 kg | Pedestrian cover | Pedestrian | 390002 | |
| 5,000 L | 2,890 mm | 2,300 mm | 1,315 mm | 250 kg | Class B vehicle cover | Class B | 390002 | |
| 5,000 L | 2,890 mm | 2,300 mm | 1,315 mm | 250 kg | Class D truck lid | Class D | 390002 | |
| 5,000 L | 2,890 mm | 2,300 mm | 1,315 mm | 250 kg | Grated pedestrian | PedestrianGrated | 390002 | |
| 5,000 L | 2,890 mm | 2,300 mm | 1,315 mm | 250 kg | Grated Class B | Class BGrated | 390002 | |
| 5,000 L | 2,890 mm | 2,300 mm | 1,315 mm | 250 kg | Grated Class D | Class DGrated | 390002 | |
| 7,500 L | 3,600 mm | 2,250 mm | 1,565 mm | 380 kg | Pedestrian cover | Pedestrian | 390005 | |
| 7,500 L | 3,600 mm | 2,250 mm | 1,565 mm | 380 kg | Class B vehicle cover | Class B | 390005 | |
| 7,500 L | 3,600 mm | 2,250 mm | 1,565 mm | 380 kg | Class D truck lid | Class D | 390005 | |
| 7,500 L | 3,600 mm | 2,250 mm | 1,565 mm | 380 kg | Grated pedestrian | PedestrianGrated | 390005 | |
| 7,500 L | 3,600 mm | 2,250 mm | 1,565 mm | 380 kg | Grated Class B | Class BGrated | 390005 | |
| 7,500 L | 3,600 mm | 2,250 mm | 1,565 mm | 380 kg | Grated Class D | Class DGrated | 390005 |
Technical data source: GRAF Platin manufacturer sizing table
