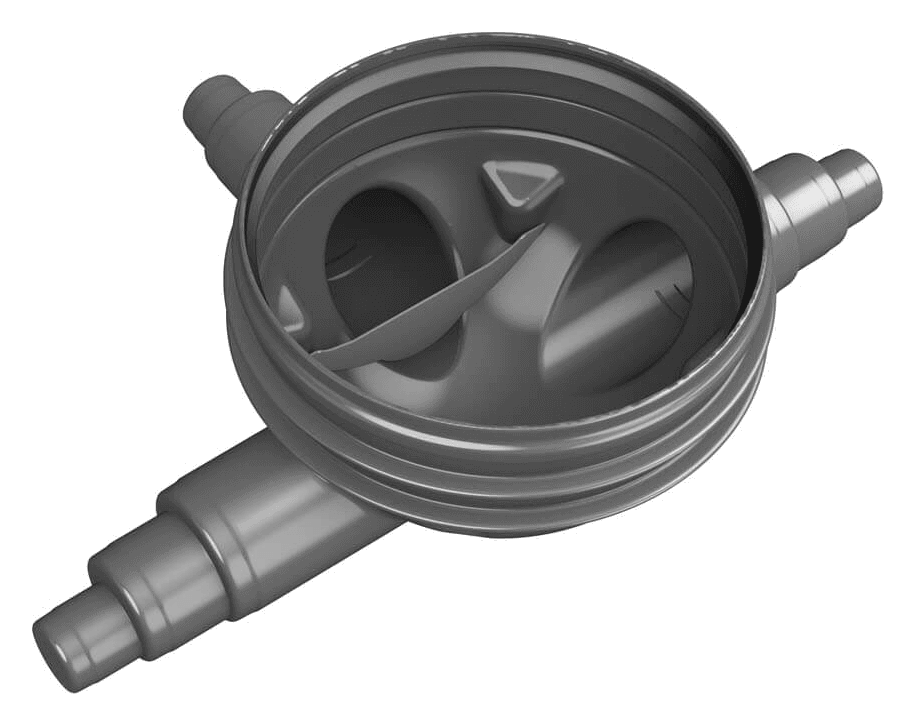

EcoDiviso Distribution Shaft

Request EcoDiviso distribution / bypass shaft EcoDiviso splits rainwater flows or acts as a bypass chamber upstream of treatment (e.g. EcoPrimo). Preconfigured, lightweight, inspectable, vehicle-trafficable; optional coarse-debris retention and weir insert. EcoDivis

Brand

GRAF

Range

Stormwater

Sizes

Size

Selected SKU

470080

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltration

Technical sizing

Size matrix & SKUs

2 technical rows - select above or quote directly

Available loading / cover classes

Class D · max axle 13.5 t · max vehicle 40 t

Earth covering with loading 1,000–1,500 mm; max cover without GW ~1,780 mm

Cover and adapters not included

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Connection	Load class	Order no.	Quote
EcoDiviso S	1,390 mm	1,050 mm	460 mm	12 kg	DN110 / DN160 / DN200	Class D	470080
EcoDiviso M	1,940 mm	1,370 mm	750 mm	24 kg	DN250 / DN315 / DN400	Class D	470081

Technical data source: https://www.graf.info/en/products/rainwater-treatment/ecodiviso-distribution-shaft/ecodiviso-distribution-shaft-m.html

Full specification

Product details

Key construction, installation and performance notes for EcoDiviso Distribution Shaft.

Overview

EcoDiviso splits rainwater flows or acts as a bypass chamber upstream of treatment (e.g. EcoPrimo). Preconfigured, lightweight, inspectable, vehicle-trafficable; optional coarse-debris retention and weir insert. EcoDiviso S: DN110 / DN160 / DN200. EcoDiviso M: DN250 / DN315 / DN400. Source: graf.info EcoDiviso.

Specification focus

Technical documents
