EcoClean 1500 Substrate Filter

Request EcoClean 1500 sizing EcoClean 1500 is the larger decentralised substrate filter for DWA-A 138-1 Category III, DIBt-approved. Same process as EcoClean 1000 in a concrete shaft NW 1500 — DN250 connections, no height offset, lorry load bearing,

Brand

GRAF

Range

Stormwater

SKU

470051

Selected SKU

470051

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltrationRoof runoff

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Available loading / cover classes

Class D / lorry

Concrete shaft NW 1500; DN250 inlet/outlet; cover/adapter not included

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Connection	Load class	Order no.	Quote
Standard	2,500 mm	1,800 mm	2,850 mm	8,760 kg	DN250 · Ø 1800 mm	-	470051

Technical data source: https://www.graf.info/en/products/rainwater-treatment/ecoclean-1500-substrate-filter.html

Full specification

Product details

Key construction, installation and performance notes for EcoClean 1500 Substrate Filter.

Overview

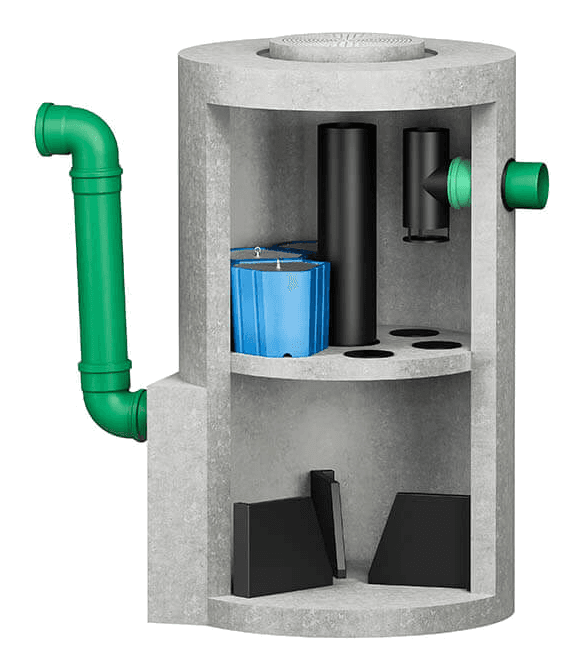

EcoClean 1500 is the larger decentralised substrate filter for DWA-A 138-1 Category III, DIBt-approved. Same process as EcoClean 1000 in a concrete shaft NW 1500 — DN250 connections, no height offset, lorry load bearing, pre-assembled with intermediate floor, flow breaker and filter cartridges. Source: graf.info EcoClean 1500.

Specification focus

Technical documents
