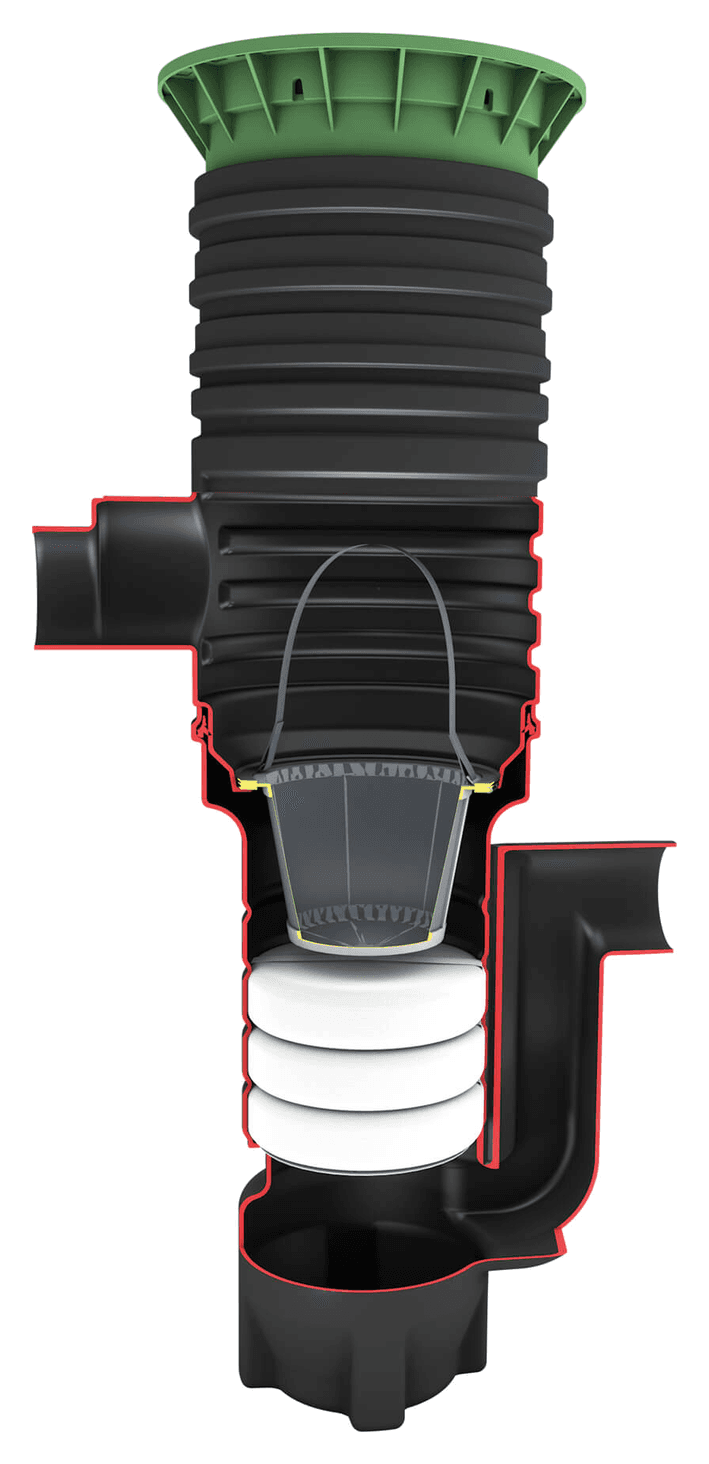

EcoPure 180 Substrate Filter (External)
EcoPure 180 is an external PureSorp substrate filter for infiltration without a swale — optimised to combine rainwater harvesting and stormwater treatment.
Brand
GRAF
Range
Stormwater
Sizes
2
Lid types
2
Size
Lid / load class
Selected SKU
340110
Price on request
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
Typical applications
Technical sizing
Size matrix & SKUs
2 technical rows - select above or quote directly
Load class
| Size | Length | Width | Height | Weight | Connection | Catchment | Qtreat | Lid / variant | Load class | Order no. | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pedestrian | 550 mm | 870 mm | 2,010 mm | 33.6 kg | DN160 · VS DN400 | 180 m² | 1.8 L/s | Pedestrian cover | Pedestrian | 340110 | |
| Class B | 550 mm | 870 mm | 2,010 mm | 64.5 kg | DN160 · VS DN400 | 180 m² | 1.8 L/s | Class B vehicle cover | Class B | 340160 |
- PureSorp media same as EcoPure 200 (DIBt Z-84.2-24).
- 0.35 mm mesh. Sedimentation stage needs a rainwater or sedimentation tank.
- Compatible with GRAF VS DN400 covers.
- Pedestrian scope includes telescopic dome 400, grass-green plastic cover, lift-out basket and filled PureSorp sacks.
Full specification
Product details
Key construction, installation and performance notes for EcoPure 180 Substrate Filter (External).
Overview
EcoPure 180 is an external PureSorp substrate filter for infiltration without a swale — optimised to combine rainwater harvesting and stormwater treatment. Same PureSorp media as EcoPure 200 (DIBt Z-84.2-24). Multi-stage: sedimentation (separate tank), 0.35 mm mesh filtration, then adsorption of dissolved metals. Max ~180 m² catchment per unit, DN160, max flow 1.8 L/s. Pedestrian or Class B vehicle-loading variants with VS DN400 cover options.
Specification focus
Technical documents
Brochures, drawings, manuals & BIM
Complete the system
Recommended products and accessories
Related products are matched from the same family, application and accessory groups so customers can build a complete quote basket.
Common accessories
Recommended with this product
Size this product for your project
Send us your plans, catchment area, or PE count - we'll confirm the right configuration and issue a quote.
