EcoPure 150 Substrate Filter (Internal)

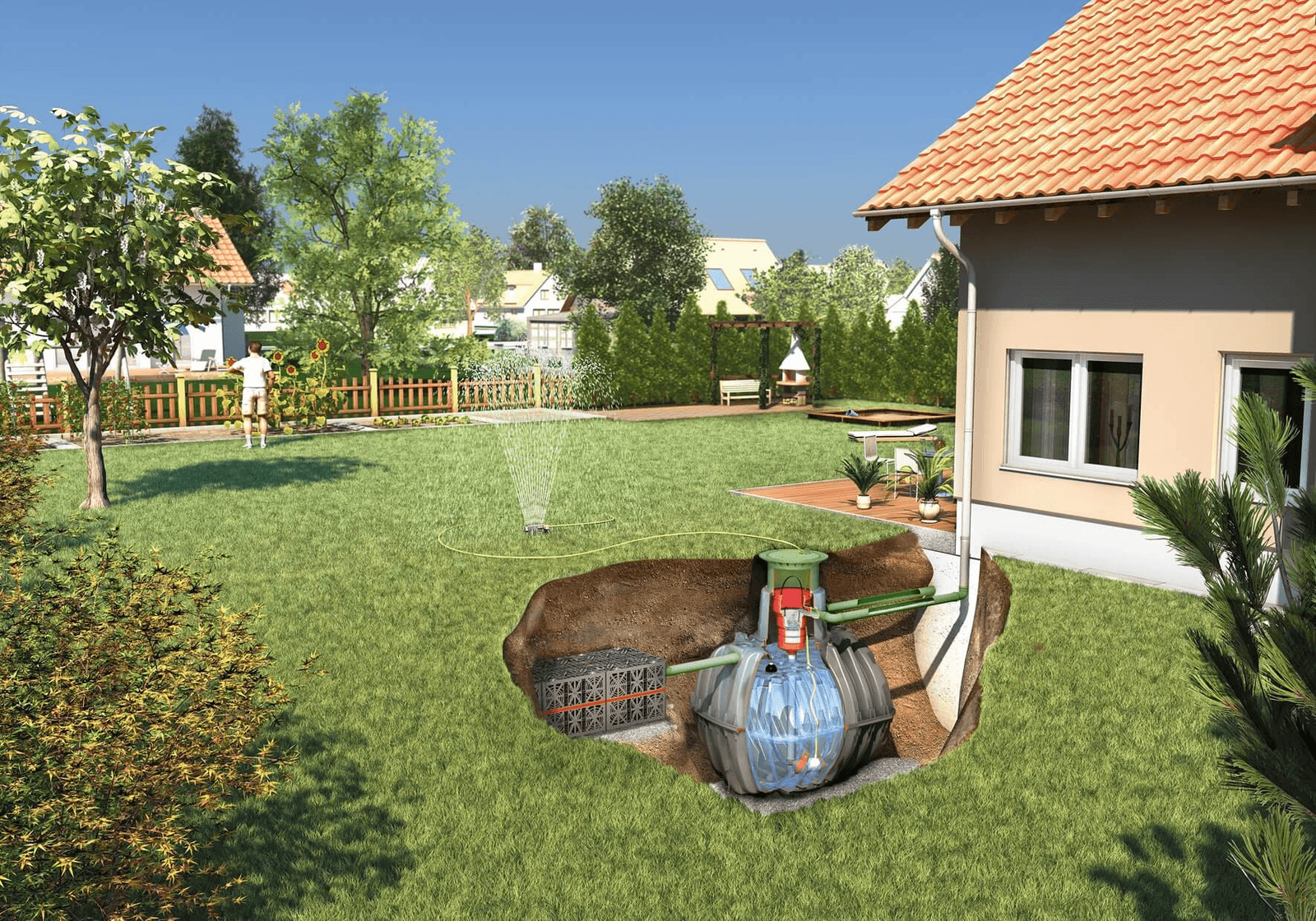

Request EcoPure 150 internal filter sizing (~150 m² catchment) EcoPure 150 is an internal PureSorp substrate filter for infiltration without a swale — combining rainwater harvesting and stormwater treatment in one underground tank with a single cover. Same PureSorp media as EcoPure

Brand

GRAF

Range

Stormwater

SKU

340109

Selected SKU

340109

Price on request

Talk to us

Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.

← Back to Stormwater Solutions

Certified qualityISO 9001 · AS/NZS standards

Australian madeRotomoulded in Western Australia

15-year warrantyOn selected tank ranges

Recycled plasticsSustainable manufacturing

Typical applications

Civil sitesAttenuationInfiltrationRoof runoff

Technical sizing

Size matrix & SKUs

1 technical row - select above or quote directly

Available loading / cover classes

Tank-mounted · cover per Carat dome

Article 340109 · Ø 485 mm · H 855 mm · 18.9 kg

PureSorp media identical to EcoPure 200 · DIBt Z-84.2-24 principles

Max ~150 m² connected catchment · combines harvesting + infiltration filtration

0.35 mm mesh filter · bypass of second stage at hydraulic peak load

Carat dome connections: Mini inlet 440–640 mm / outlet 950–1150 mm; Maxi inlet 440–740 mm / outlet 950–1250 mm (centreline to finished ground)

Scope: EcoPure 150 with lift-out basket, substrate, 3 filter sacks with lift handles

KeyPedestrianClass BClass DClass BGrated

Size	Length	Width	Height	Weight	Connection	Load class	Order no.	Quote
Standard	485 mm	485 mm	855 mm	18.9 kg	Ø 485 mm · Carat tank dome	-	340109

Technical data source: https://www.graf.info/de/regenwasserbehandlung/spezialanwendungen-in-der-regenwasserbehandlung/ecopure-150-substratfilter-intern.html

Full specification

Product details

Key construction, installation and performance notes for EcoPure 150 Substrate Filter (Internal).

Overview

EcoPure 150 is an internal PureSorp substrate filter for infiltration without a swale — combining rainwater harvesting and stormwater treatment in one underground tank with a single cover. Same PureSorp media as EcoPure 200 (DIBt Z-84.2-24). Multi-stage path: sedimentation in the tank, 0.35 mm mesh filtration, then adsorption of dissolved metals. Max ~150 m² connected catchment. Scope: EcoPure 150 with lift-out filter basket, substrate and 3 filter sacks. Source: graf.info EcoPure 150 Intern.
