Saphir M 153 Sedimentation Tank
Coming SoonSaphir Universalschacht M 153 sedimentation tank for treating contaminated stormwater per DWA-M 153. Lightweight plastic shaft, optional external coarse filter, calmed inlet and.
Brand
GRAF
Range
Stormwater
Sizes
6
Size
Dimensions: L 1,125 mm · W 1,125 mm · H 1,045 mm
Selected SKU
330468
Coming Soon · This product is not yet available to order in Australia. Add it to a quote or talk to us to register interest.
Upload plans on the quote form for civil sizing, pump station design, or treatment plant PE calculations.
Typical applications
Technical sizing
Size matrix & SKUs
6 technical rows - select above or quote directly
Load class
| Size | Length | Width | Height | Weight | Connection | Load class | Order no. | Quote |
|---|---|---|---|---|---|---|---|---|
| 600 L / DN110 | 1,125 mm | 1,125 mm | 1,045 mm | 29.8 kg | DN110 | - | 330468 | |
| 900 L / DN110 | 1,155 mm | 1,155 mm | 1,345 mm | 50.8 kg | DN110 | - | 330469 | |
| 900 L / DN160 | 1,155 mm | 1,155 mm | 1,345 mm | 55.3 kg | DN160 | - | 330472 | |
| 1,200 L / DN110 | 1,155 mm | 1,155 mm | 1,670 mm | 60.8 kg | DN110 | - | 330470 | |
| 1,200 L / DN160 | 1,155 mm | 1,155 mm | 1,670 mm | 65.3 kg | DN160 | - | 330473 | |
| 1,500 L / DN200 | 1,395 mm | 1,155 mm | 1,970 mm | 99 kg | DN200 | - | 330728 |
- Part of GRAF DWA-M 153 sedimentation systems (Diamant excluded)
- Family: DWA-M 153 sedimentation systems: SediProtect, Saphir Universalschacht, Carat, Vario 800 EcoBloc
- Saphir / Carat / Vario: sedimentation tank with optional external coarse filter; calmed inlet pot + outlet baffle
Full specification
Product details
Key construction, installation and performance notes for Saphir M 153 Sedimentation Tank.
Overview

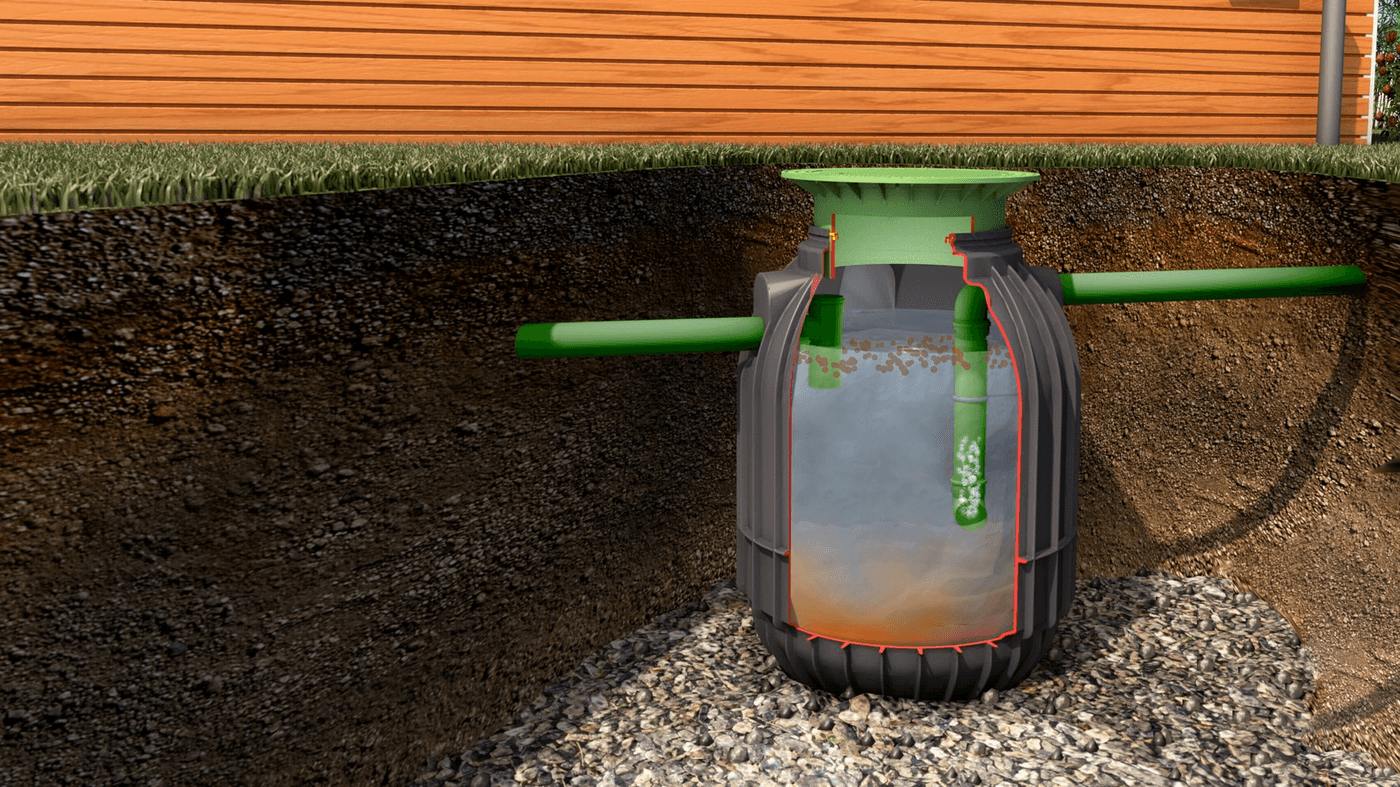

Saphir Universalschacht M 153 sedimentation tank for treating contaminated stormwater per DWA-M 153. Lightweight plastic shaft, optional external coarse filter, calmed inlet and outlet baffle. Sizes 600–1,500 L with DN110 / DN160 / DN200 connections. Pedestrian or Class B covers.
Specification focus
Length 1125 mm
Width 1125 mm
Height 1045 mm
Weight 29.8 kg
Load Pedestrian cover
Load Class B vehicle cover
Technical documents
Brochures, drawings, manuals & BIM
Featured technical PDF
GRAF SAPHIR 600/900/1200/1500L (Installation/Mounting and Maintenance)
Official manufacturer document for specification and installation · MNL-018.pdf | Rev 1 | 30/09/2016.
Drawings
(10)Complete the system
Recommended products and accessories
Related products are matched from the same family, application and accessory groups so customers can build a complete quote basket.
Common accessories
Recommended with this product
Size this product for your project
Send us your plans, catchment area, or PE count - we'll confirm the right configuration and issue a quote.
